Gigabyte MJ11-EC0 (rev. 1.2) [32/109] 2 2 psp firmware versions

BIOS Setup - 32 -

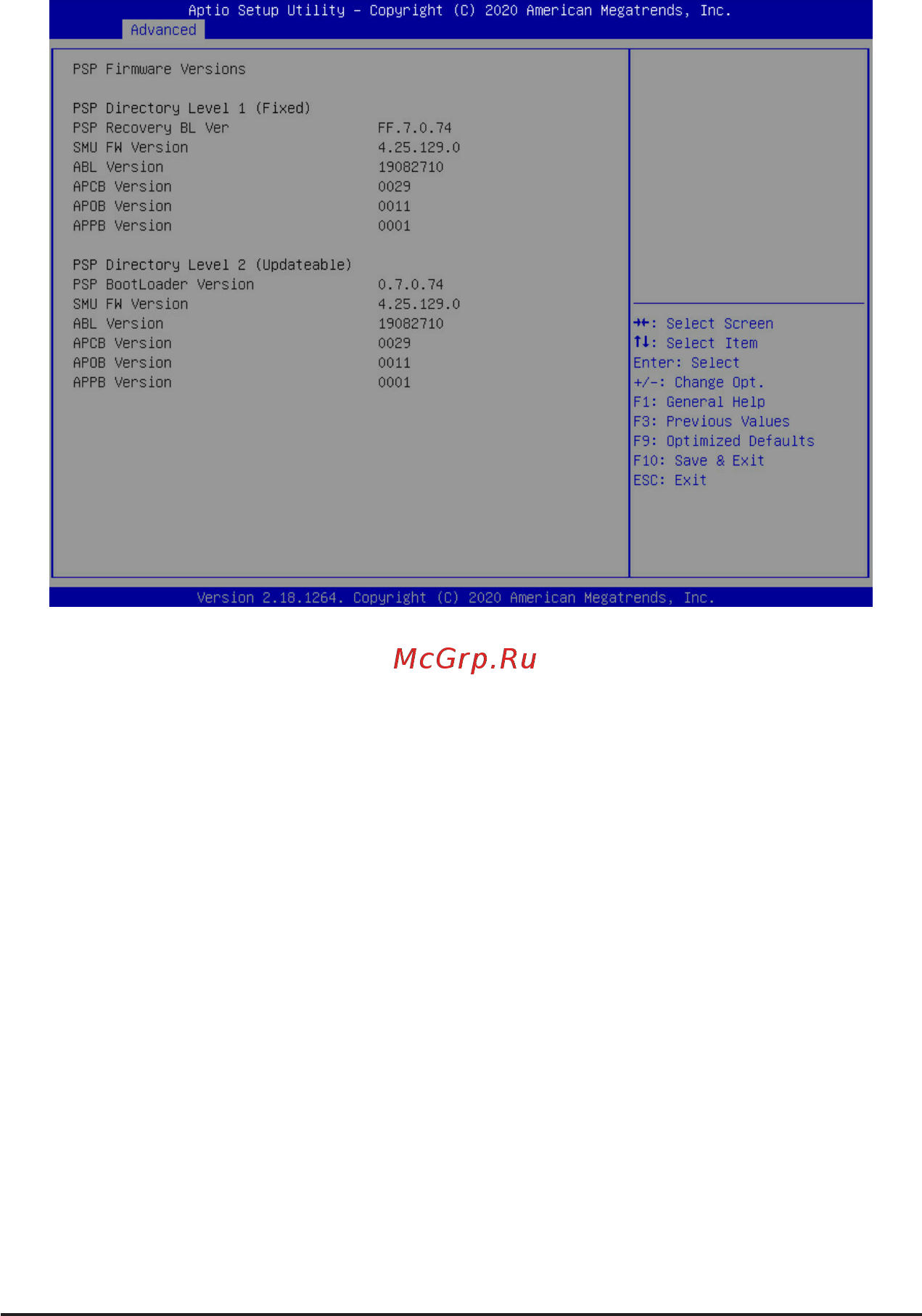

2-2-2 PSP Firmware Versions

ThePSPFirmwareVersionspagedisplaysthebasicPSPrmwareversioninformation.Itemsonthiswindow

arenon-congurable.
