Gigabyte MJ11-EC0 (rev. 1.2) [29/109] 2 advanced menu

- 29 - BIOS Setup

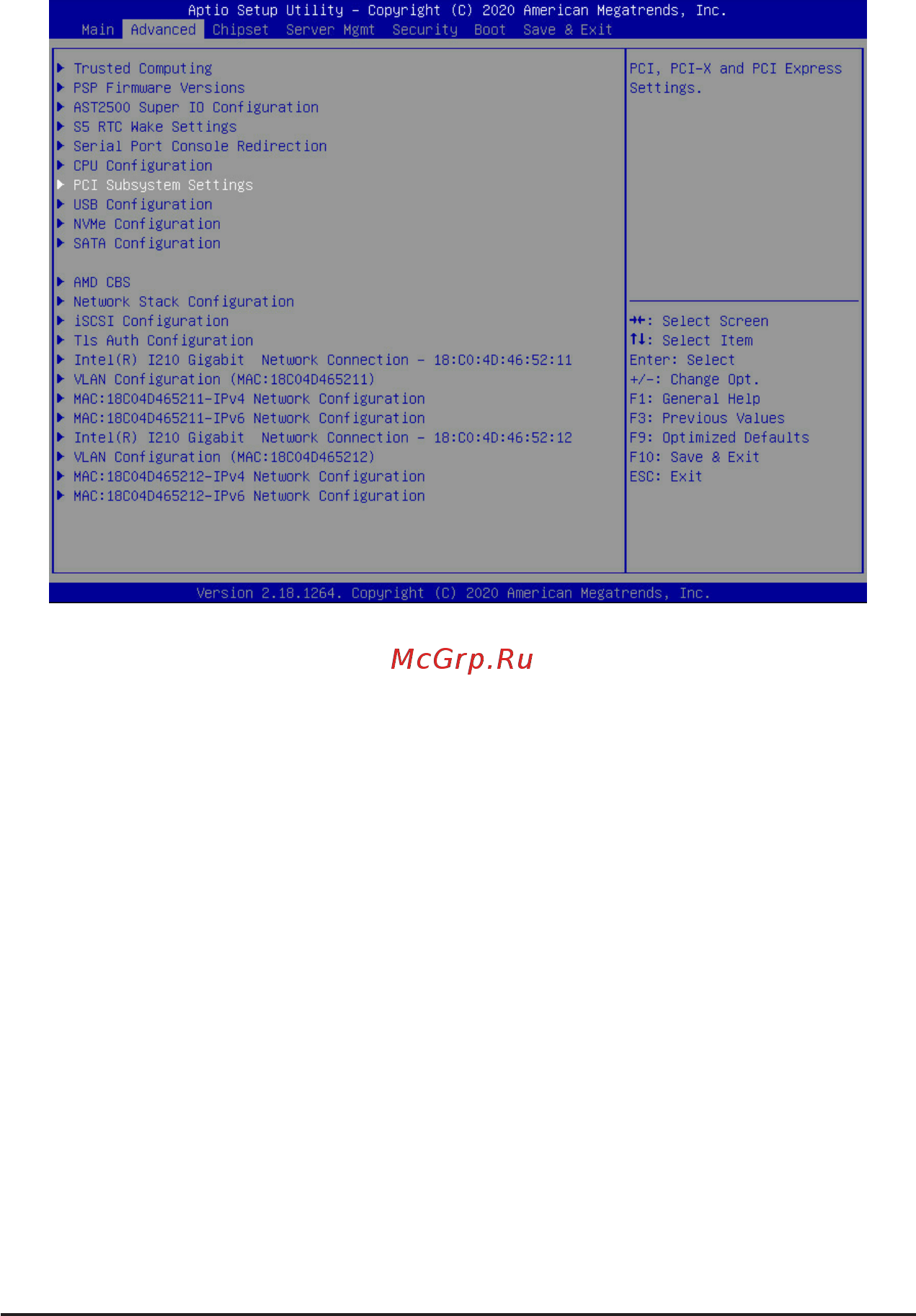

2-2 Advanced Menu

TheAdvancedMenudisplayssubmenuoptionsforconguringthefunctionofvarioushardwarecomponents.

Select a submenu item, then press <Enter> to access the related submenu screen.
