Gigabyte MJ11-EC0 (rev. 1.2) [45/109] 2 10 sata configuration

- 45 - BIOS Setup

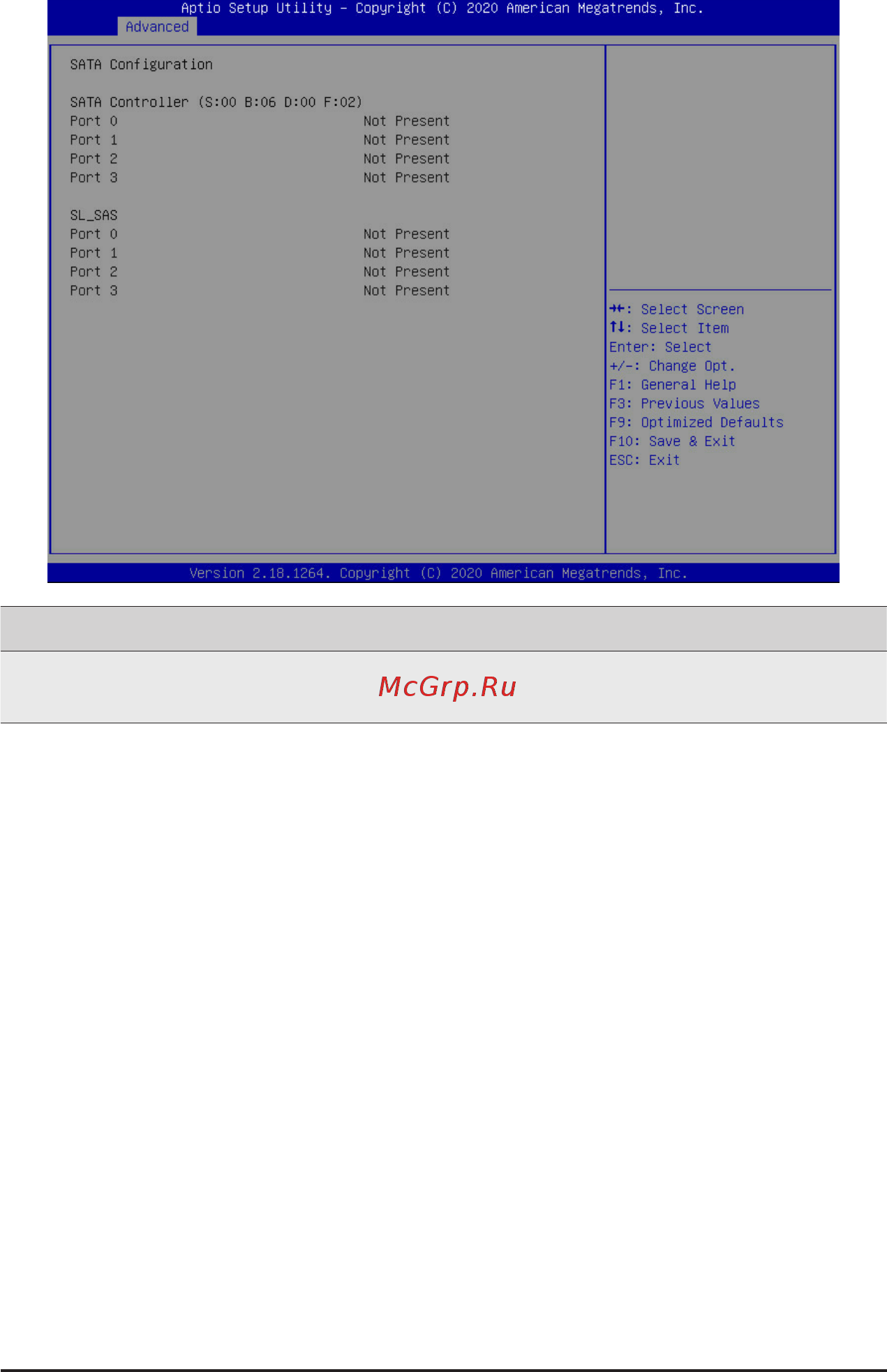

2-2-10 SATA Conguration

Parameter

Description

SATAConguration

Displays the installed HDD devices information. System will automatically

detect HDD type.
