96 97
Fatal1ty X99 Professional/3.1 Series
+12V DETECT
GND

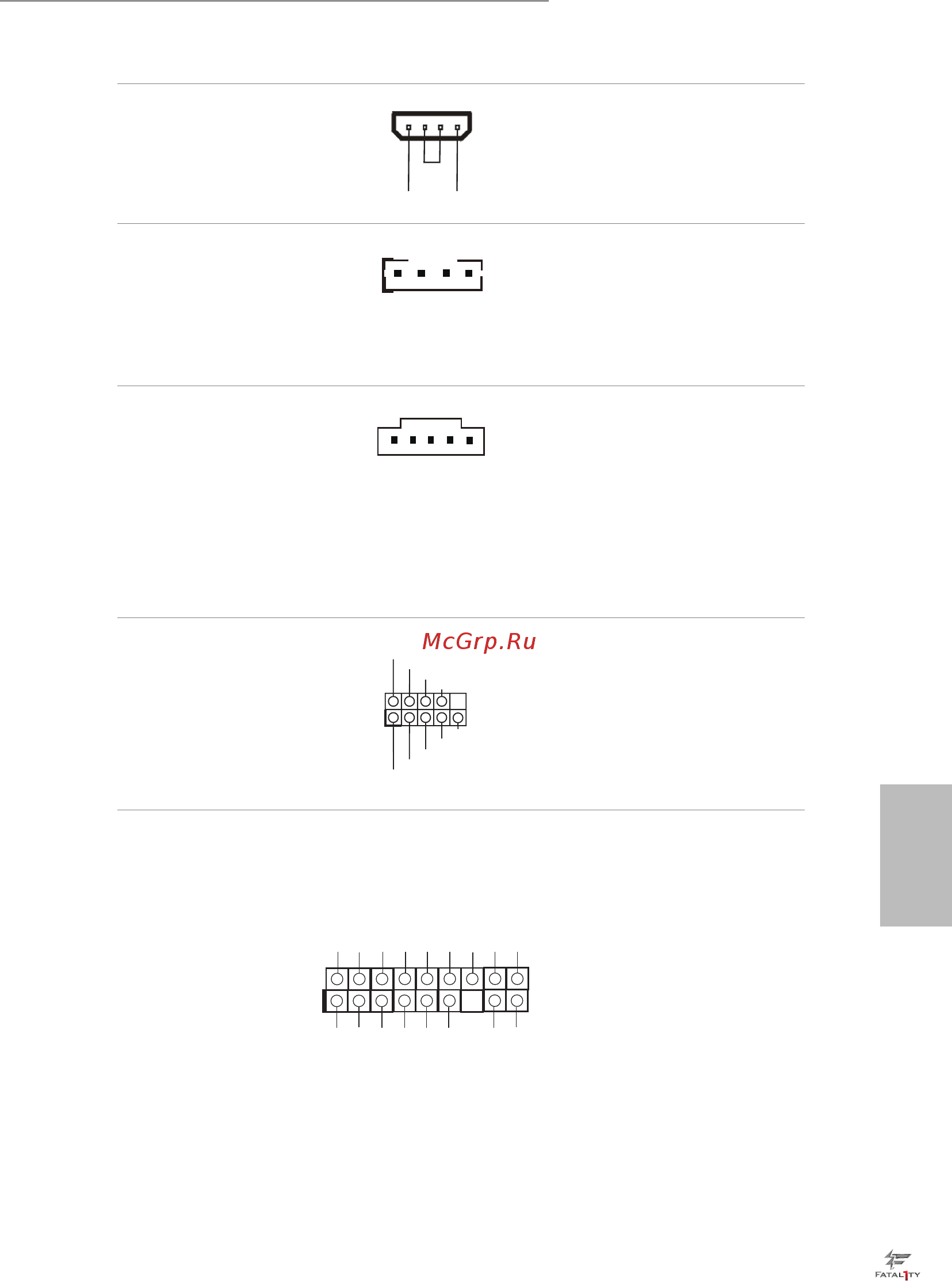

Conector de alimentación
PCIe
(PCIE_PWR1 de 4 pines)
(consulte la pág.1, N.º 43)
Conecte a este conector un cable
de alimentación molex de 4 pines
cuando se instalen más de tres
Tarjetas PCI Express.
Conector de ahorro de
energía HDD
(SATA_PWR_1 de 4
pines)
(consulte la pág.1, N.º 28)
Conecte el cable de ahorro HDD
a este conector para gestionar el
estado de la potencia de HDD.
Conector underbolt
AIC
(TBT1 de 5 pines)
(consulte la pág.1, N.º 44)
Conecte un cable de señal de
5 pines (cables GPIO) a este
conector cuando instales
una tarjeta adicional (AIC)
underbolt™.
*Instale la tarjeta underbolt™
AIC a PCIE3 (ranura
predeterminada).
Cabezal de puerto serie
(COM1 de 9 pines)
(consulte la pág.1, N.º 42)
Este cabezal COM1
admite un módulo de
puerto serie.
Cabezal TPM
(TPMS1 de 17 pines)
(consulte la pág.1, N.º 37)
Este conector es compatible con
el sistema Módulo de Plataforma
Segura (TPM, en inglés), que
puede almacenar de forma segura
claves, certicados digitales,
contraseñas y datos. Un sistema
TPM también ayuda a aumentar
la seguridad en la red, protege las
identidades digitales y garantiza
la integridad de la plataforma.
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
1
GN D
SMB_DATA_MAIN
LAD2
LAD1
GN D
S_PWRDWN #
SERIRQ #
GN
D
P CICL K
P CIRST #
LAD3
+3V
LAD0
+3VS B
GN D
FRAM E
SMB_CLK_MAIN
1
