Deutsch
50 51
Fatal1ty X99 Professional/3.1 Series

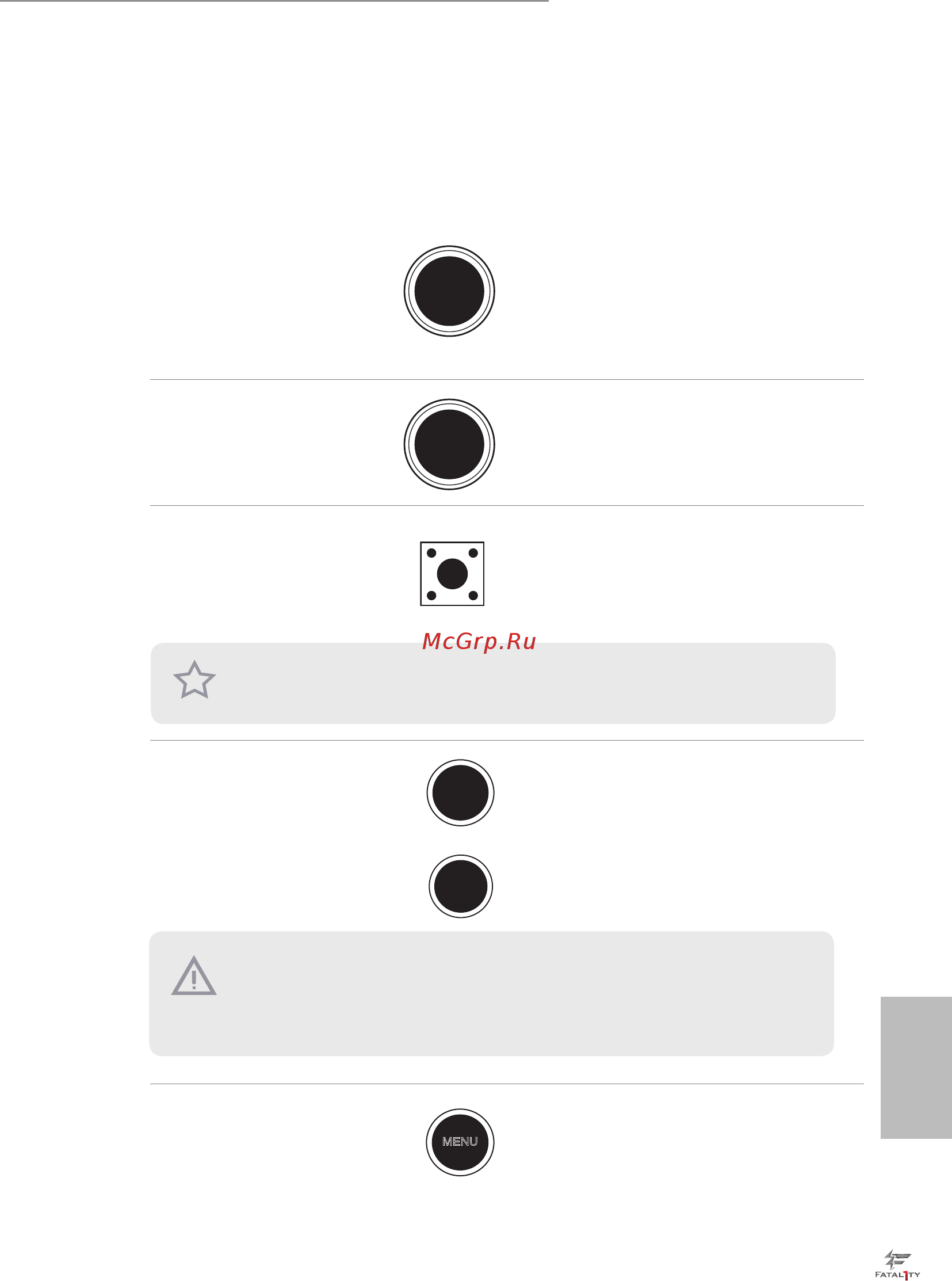

1.5 Intelligente Schalter
Das Motherboard verfügt über elf spezielle Tasten: Ein/Aus, Reset, CMOS löschen,
Rapid OC-Tasten, Menü, PCIe-Ein/Aus, Reduzierte Geschwindigkeit, BIOS-
Auswahl, LN2-Modus, Direkttaste.
Ein-/Ausschalter
(PWR)
(siehe S. 1, Nr. 34)
Mit dem Ein-/Ausschalter
kann der Benutzer das
System schnell ein-/
abschalten.
Reset-Schalter
(RST)
(siehe S. 1, Nr. 35)
Der Reset-Taste ermöglicht
das schnelle Rücksetzen des
Systems.
CMOS-löschen-Schalter
(CLRCBTN1)
(siehe Seite 4, Nr. 13)
Mit dem CMOS-löschen-
Schalter können Benutzer
die CMOS-Werte schnell
löschen.
Schnellübertaktung-
stasten +/-
(MINUS:siehe S. 1, Nr. 10)
(PLUS:siehe S. 1, Nr. 9)
Mit den Rapid OC-Tasten
(+/-) passen Sie Übertak-
tungsfrequenzen schnell
und einfach per Rapid OC
an.
Menütaste
(MENU:siehe S. 1,
Nr. 11)
Die MENU-Taste ermögli-
cht schnelles Umschalten
zwischen Datum/Uhrzeit-,
Temperatur- und Span-
nungsanzeige.
Power
Reset
Diese Funktion ist nur verfügbar, wenn Sie Ihren Computer abschalten und die Stromvers-
orgung unterbrechen.
Dieses Übertaktungsverhalten hängt von der Systemkonguration, wie Speicherfähigkeit,
Wärmelösung etc. ab. Eine Übertaktung kann sich auf Ihre Systemstabilität auswirken
und sogar Schäden an Komponenten und Geräten verursachen. Wir übernehmen keine
Verantwortung für mögliche Schäden, die durch eine Übertaktung verursacht wurden.
+
-
MENU
