Español
100 101
Fatal1ty X99 Professional/3.1 Series

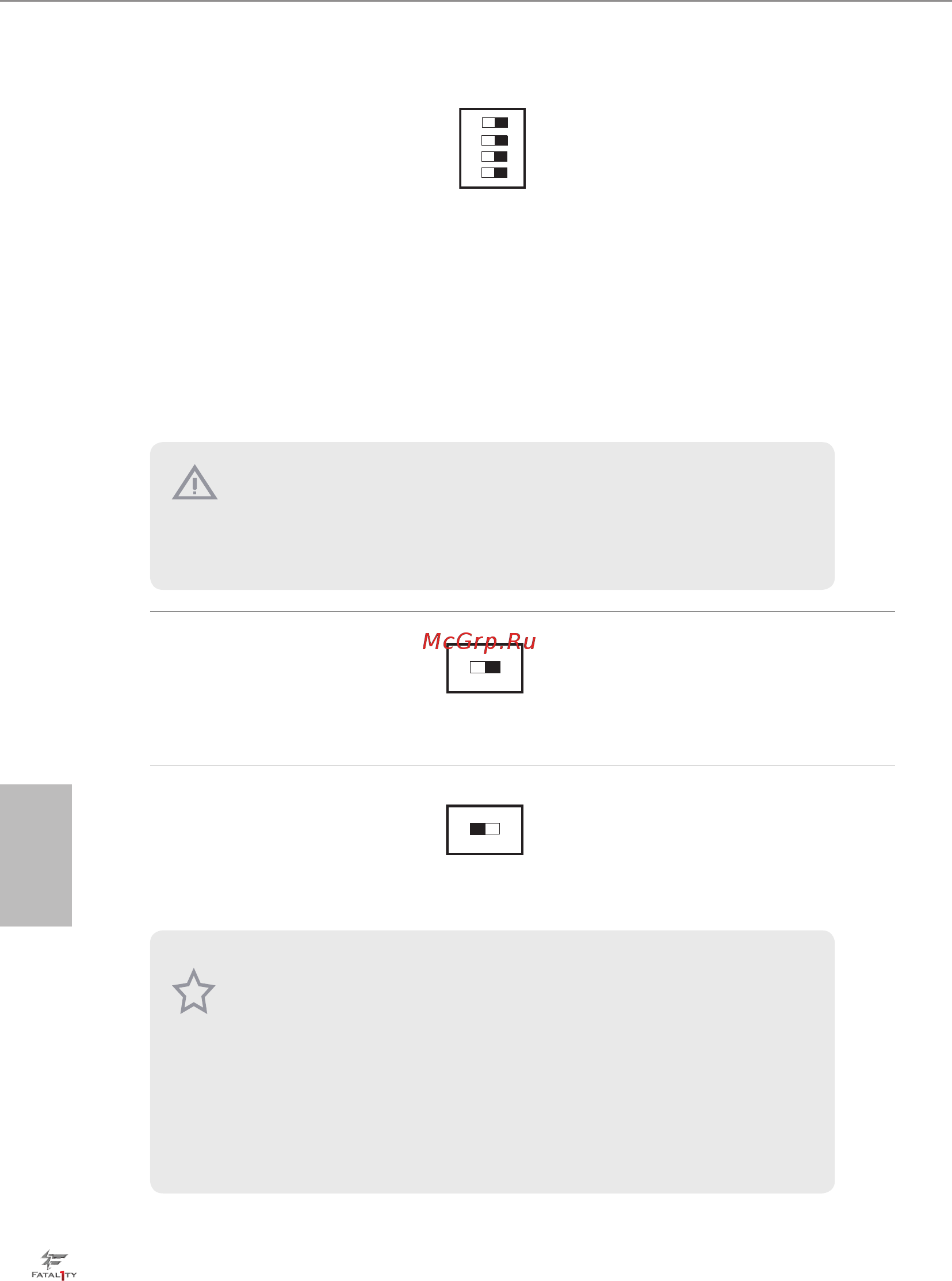

Interruptor de activación
desactivación de PCIe
(consulte la pág.1, N.º 12)
El interruptor de encendido/
apagado de PCIe le per-
mite activar y desactivar las
ranuras PCIE x16 correspon-
dientes. Cuando una de las
tarjetas PCIE x16 instaladas
no funcione, puede utilizar el
interruptor de encendido/apa-
gado de PCIe para encontrar
la tarjeta defectuosa simple-
mente haciendo clic una vez
sin quitar las tarjetas.
Interruptor del Modo
Lento
(MODO LENTO)
(consulte la pág.1, N.º 14)
Si el Modo Lento está activado,
el procesador funciona con la
frecuencia más baja.
Interruptor de selección
del BIOS
(BIOS_ SEL1)
(consulte la pág.1, N.º 29)
El interruptor de selección
del BIOS permite arrancar el
sistema desde el BIOS A o el
BIOS B.
AB
Esta placa base contiene dos chips de BIOS, un BIOS principal (BIOS_A) y un BIOS de
copia de seguridad (BIOS_B), que aumentan la seguridad y la estabilidad de su sistema.
Normalmente, el sistema funcionará con el BIOS principal. Sin embargo, si el BIOS princi-
pal está dañado de alguna forma, deberá simplemente cambiar el interruptor de selección
del BIOS a la posición “B”. De esta forma, el sistema arrancará desde el BIOS de copia de
seguridad la próxima vez que lo inicie. Después, utilice “Copia de seguridad segura de
UEFI” en “Herramienta de conguración de UEFI” para duplicar una copia de trabajo
de los archivos del BIOS en el BIOS principal con el objetivo de garantizar que el sistema
funcione correctamente. Por cuestiones de seguridad, los usuarios no pueden actualizar el
BIOS de copia de seguridad manualmente. Los usuarios deberán consultar los indicadores
LED del BIOS (BIOS_A_LED o BIOS_B_LED) para identicar qué BIOS está activado en
ese momento.
1. Asegúrese de que ha apagado el sistema antes de cambiar el interruptor.
2. Cuando apague el interruptor de encendido/apagado de PCIe, su tarjeta PCIE podría
quemarse si estuviera mal fabricada. Para obtener más información acerca de las espe-
cicaciones de su tarjeta, contacte con el proveedor de la tarjeta.
3. El interruptor de encendido/apagado de PCIe se utiliza únicamente para depurar. Si no
desea utilizar su tarjeta PCIE, quítela de la placa base.
ON
1 2 3 4
1: PCIE1
2: PCIE2
3: PCIE4
4: PCIE5
ON
OFF
