繁體中文
206 207
Fatal1ty X99 Professional/3.1 Series

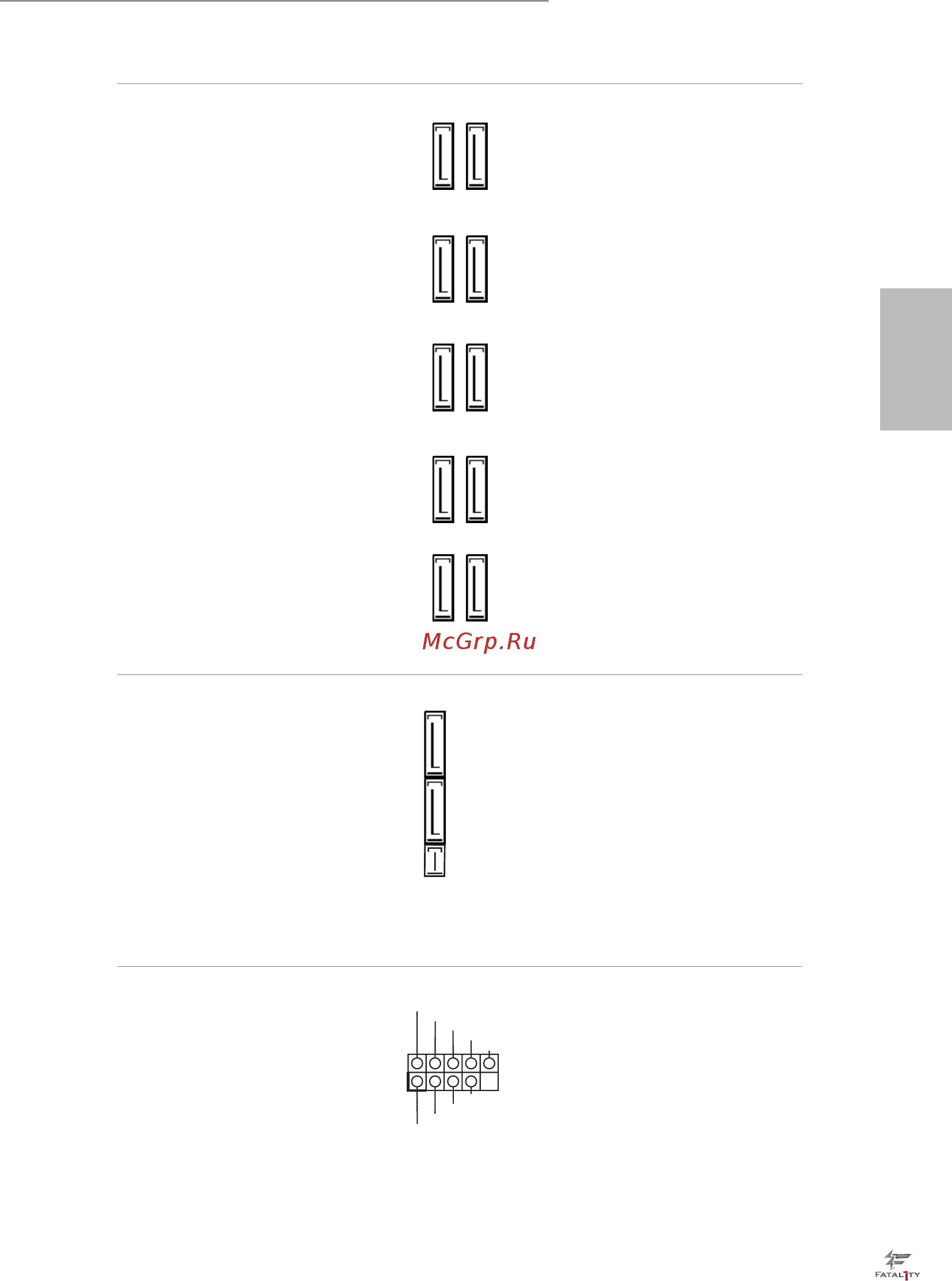

Serial ATA3 接頭
(S_SATA3_0_1
請參閱第 1 頁，編號 22)
(S_SATA3_2_3:
請參閱第 1 頁，編號 23）
(SATA3_0_3:
請參閱第 1 頁，編號 24)
(SATA3_1_4:
請參閱第 1 頁，編號 25）
(SATA3_2_5:
請參閱第 1 頁，編號 26）
這十組 SATA3 接頭
皆支援內部儲存裝置
的 SATA 資料纜線，
最高可達 6.0 Gb/s 資
料傳輸率。若將 M.2
SATA 模組裝於 M.2
插座 (M2_1)，內部
S_SATA3_3 將無作
用。
* 若將 M.2 PCI
Express 模組裝於 M.2
插座 (M2_1)，內部
S_SATA3_3 仍會作
用。
* RAID 僅支援
SATA3_0 ~ SATA3_5
連接埠。
Serial ATA Express 接頭
(
SATAE_1
)
（請參閱第 1 頁，編號 27）
請將 SATA 或 PCIe
儲存裝置接至此接
頭。 SATA Express 連
接埠與 SATA3_4 及
SATA3_5 共用。
*SATA Express 介
面是 SATAE_1、
SATA3_5 及 SATA3_4
的組合。
USB 2.0 排針
(9-pin USB3_4)
（請參閱第 1 頁，編號 38）
(9-pin USB5_6)
（請參閱第 1 頁，編號 39）
除了 I/O 面板上的
六個 USB 3.0 連接埠
外，在本主機板上還
有另外兩組排針。
各 USB 3.0 排針皆可
支援兩個連接埠。
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_0
SATA3_1
SATA3_4
SATA3_5
SATA3_2
SATA3_3
S_SATA3_0
S_SATA3_1
S_SATA3_2
S_SATA3_3
SATA3_5SATAE_1 SATA3_4
