Deutsch
44 45
Fatal1ty X99 Professional/3.1 Series

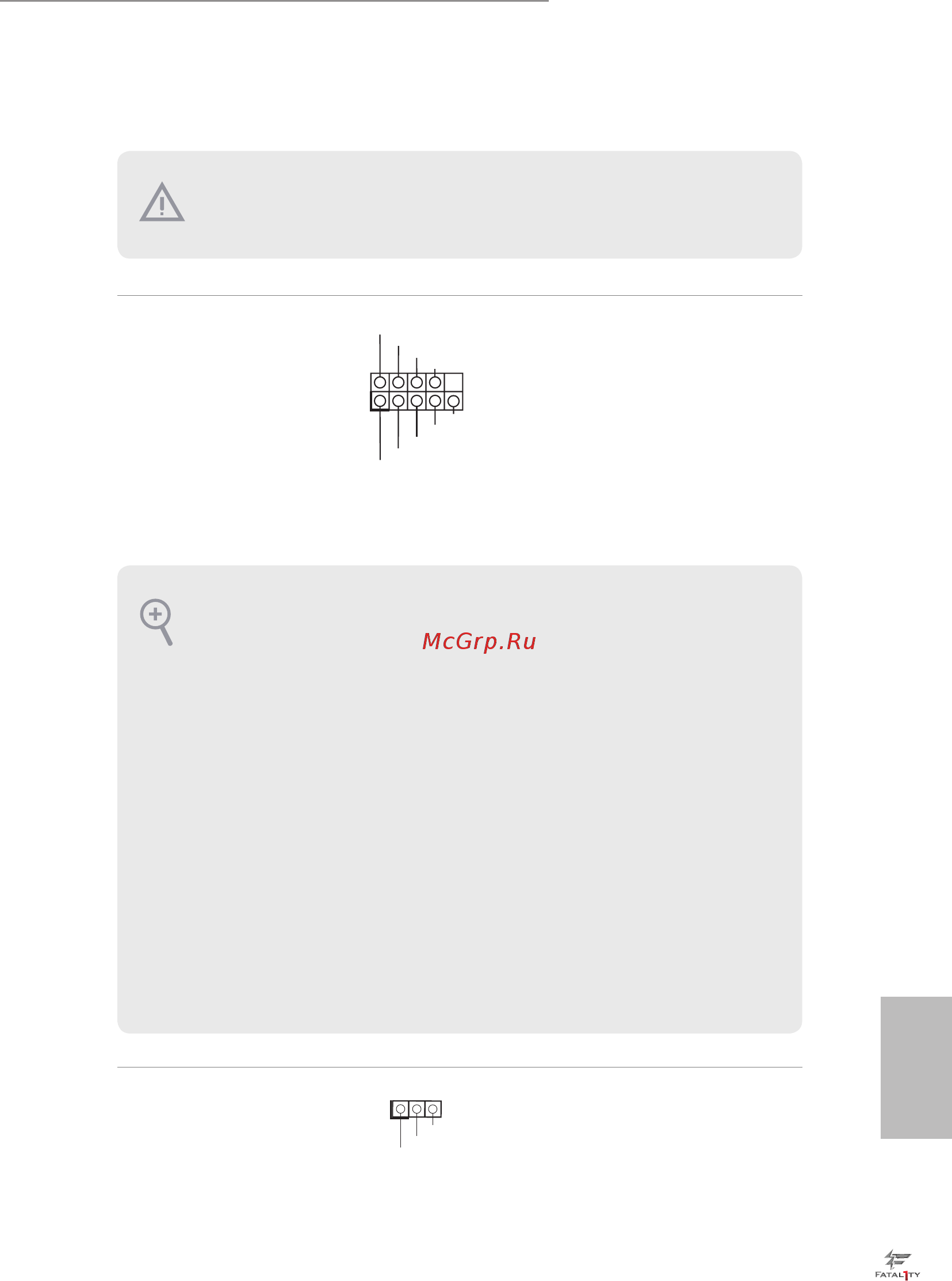

1.4 Integrierte Stiftleisten und Anschlüsse
Systemblende-Stileiste
(9-polig, PANEL1)
(siehe S. 1, Nr. 33)
Verbinden Sie
Netzschalter, Reset-Taste
und Systemstatusanzeige
am Gehäuse entsprechend
der nachstehenden
Pinbelegung mit dieser
Stileiste. Beachten Sie
vor Anschließen der
Kabel die positiven und
negativen Kontakte.
Betrieb-LED-Stileiste
(3-polig, PLED1)
(siehe S. 1, Nr. 30)
Bitte verbinden Sie
die Betrieb-LED des
Gehäuses zur
Anzeige des
Systembetriebsstatus mit
dieser Stileiste.
GND
R ESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
PWRBTN (Ein-/Austaste):
Mit der Ein-/Austaste an der Frontblende des Gehäuses verbinden. Sie können die Abschal-
tung Ihres Systems über die Ein-/Austaste kongurieren.
RESET (Reset-Taste):
Mit der Reset-Taste an der Frontblende des Gehäuses verbinden. Starten Sie den Computer
über die Reset-Taste neu, wenn er abstürzt oder sich nicht normal neu starten lässt.
PLED (Systembetriebs-LED):
Mit der Betriebsstatusanzeige an der Frontblende des Gehäuses verbinden. Die LED
leuchtet, wenn das System läu. Die LED blinkt, wenn sich das System im S1/S3-Ruhe-
zustand bendet. Die LED ist aus, wenn sich das System im S4-Ruhezustand bendet oder
ausgeschaltet ist (S5).
HDLED (Festplattenaktivitäts-LED):
Mit der Festplattenaktivitäts-LED an der Frontblende des Gehäuses verbinden. Die LED
leuchtet, wenn die Festplatte Daten liest oder schreibt.
Das Design der Frontblende kann je nach Gehäuse variieren. Ein Frontblendenmodul
besteht hauptsächlich aus Ein-/Austaste, Reset-Taste, Betrieb-LED, Festplattenaktivität-
LED, Lautsprecher etc. Stellen Sie beim Anschließen Ihres Frontblendenmoduls an diese
Stileiste sicher, dass Kabel- und Pinbelegung richtig abgestimmt sind.
Integrierte Stileisten und Anschlüsse sind KEINE Jumper. Bringen Sie KEINE Jumper-
Kappen an diesen Stileisten und Anschlüssen an. Durch Anbringen von Jumper-Kappen
an diesen Stileisten und Anschlüssen können Sie das Motherboard dauerha beschädi-
gen.
1
PLED+
PLED+
PLED-
