한 국 어
158 159
Fatal1ty X99 Professional/3.1 Series

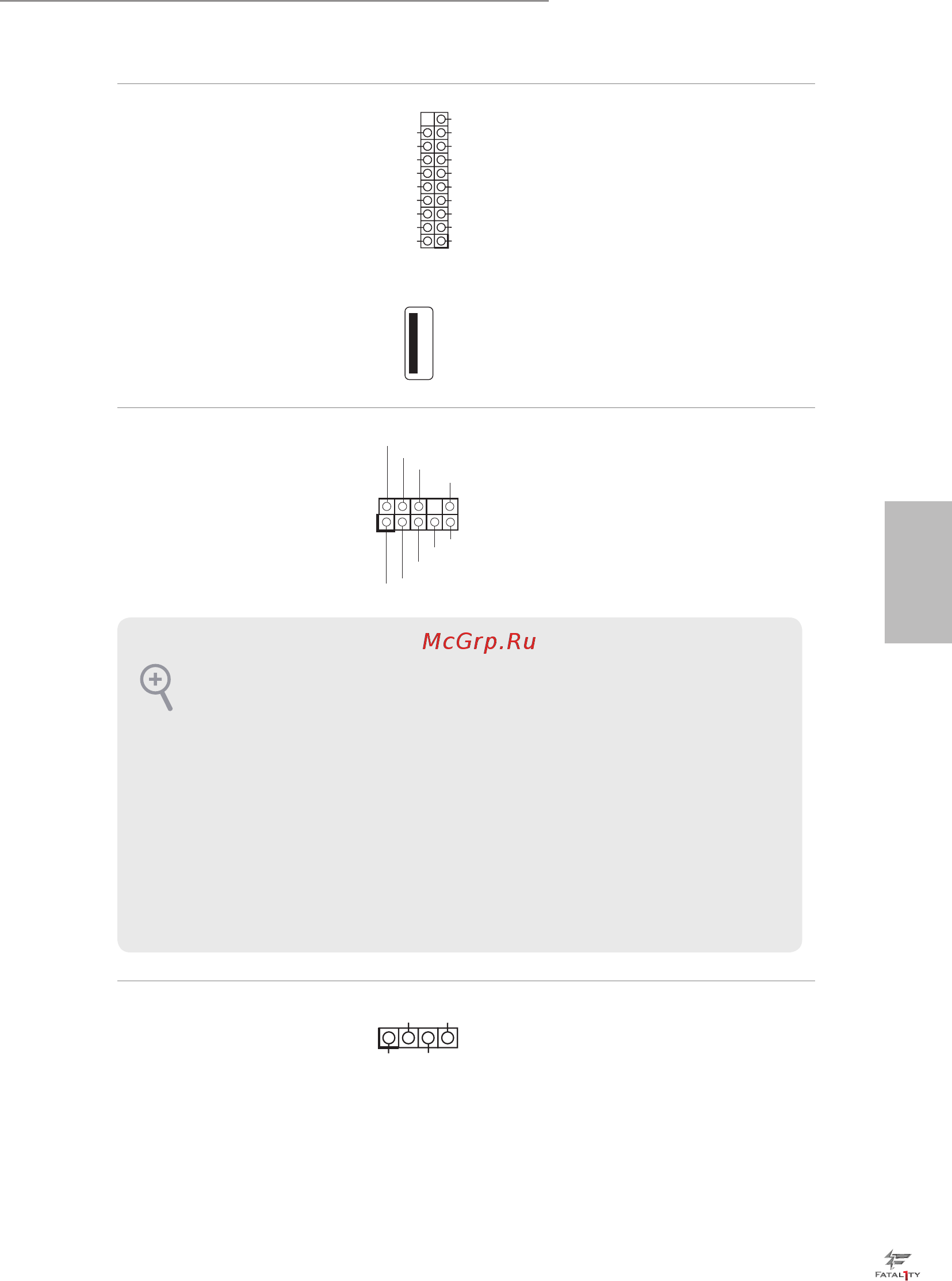

USB 3.0 헤더
(19 핀 USB3_7_8)
(1 페이지 , 18 번 항목 참
조 )
(19 핀 USB3_9_10)
(1 페이지 , 21 번 항목 참
조 )
(USB3_11)
(1 페이지 , 19 번 항목 참
조 )
I/O 패널에 USB 3.0 포트 육
탑재되어 있을 뿐 아니라
마더보드에 헤 더 두 개와
포트 한 개가 탑재되어 있
습니다 . 각 USB 3.0 헤더는
포트 두 개를 지원할 수 있
습니다 .
전면 패널 오디오 헤더
(9 핀 HD_AUDIO1)
(1 페이지 , 45 번 항목 참
조 )
이 헤더는 오디오 장치를
전면 오디오 패널에 연결
하는 데 사용됩니다 .
섀시 스피커 헤더
(4 핀 SPEAKER1)
(1 페이지 , 32 번 항목 참
조 )
섀시 스피커를 이 헤더에
연결하십시오 .
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1.
고음질 오디오는 잭 감지를 지원하지만 올바르게 작동하려면 섀시의 패널 와이어가
HDA 를 지원해야 합니다 . 설명서 및 섀시 설명서에 나와 있는 지침을 따라 시스템
을 설치하십시오 .
2.
AC’97 오디오 패널을 사용할 경우 아래와 같은 절차를 따라 전면 패널 오디오 헤더
에 설치하십시오 :
A. Mic_IN (MIC) 를 MIC2_L 에 연결합니다 .
B. Audio_R (RIN) 을 OUT2_R 에 연결하고 Audio_L (LIN) 을 OUT2_L 에 연결합니다 .
C. 접지 (GND) 를 접지 (GND) 에 연결합니다 .
D. MIC_RET 및 OUT_RET 는 HD 오디오 패널에만 사용됩니다 . AC’97 오디오 패
널용으로 연결할 필요가 없습니다 .
E. 전면 마이크를 활성화하려면 Realtek 제어판에서 “FrontMic” 탭으로 가서 “Re-
cording Volume( 녹음 볼륨 )”을 조정합니다 .
1
+5V
DUMMY
DUMMY
SPEAKER
