Français
Français
62 63
Fatal1ty X99 Professional/3.1 Series

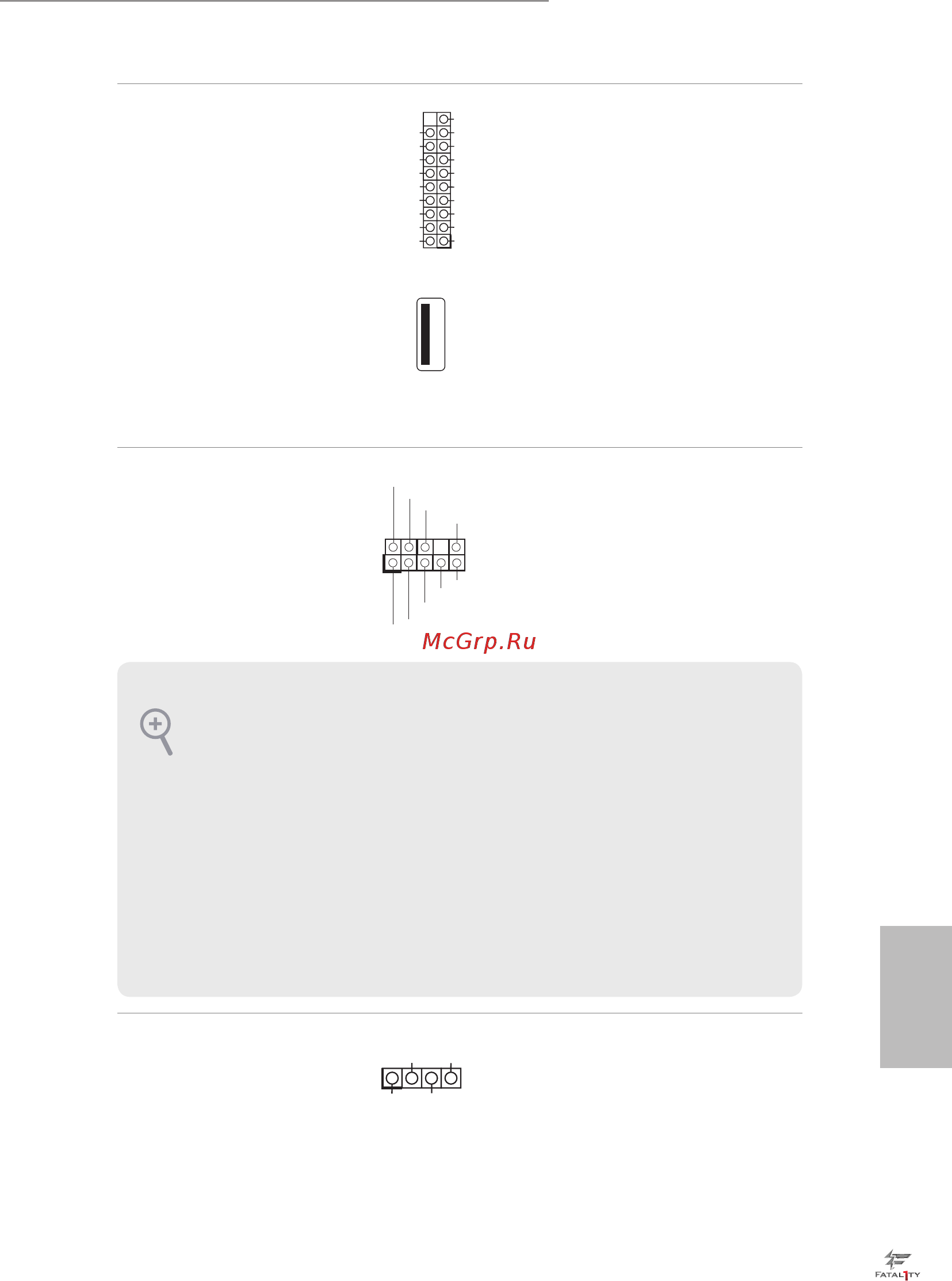

Embases USB 3.0
(USB3_7_8 à 19 broches)
(voir p.1, No. 18)
(USB3_9_10 à 19 broches)
(voir p.1, No. 21)
(USB3_11)
(voir p.1, No. 19)
En plus six deux ports
USB 3.0 sur le panneau
E/S, cette carte mère est
dotée de deux embases et
d’un port.Chaque embase
USB 3.0 peut prendre en
charge deux ports.
Embase audio du panneau
frontal
(HD_AUDIO1 à 9
broches)
(voir p.1, No. 45)
Cette embase sert au
branchement des appareils
audio au panneau audio
frontal.
Embase du haut-parleur
du châssis
(SPEAKER1 à 4 broches)
(voir p.1, No. 32)
Veuillez brancher le haut-
parleur du châssis sur
cette embase.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1. L’audio haute dénition prend en charge la technologie Jack Sensing (détection de la
che), mais le panneau grillagé du châssis doit être compatible avec la HDA pour fonc-
tionner correctement. Veuillez suivre les instructions gurant dans notre manuel et dans
le manuel du châssis pour installer votre système.
2. Si vous utilisez un panneau audio AC’97, veuillez le brancher sur l’embase audio du pan-
neau frontal en procédant comme suit :
A. branchez Mic_IN (MIC) sur MIC2_L.
B. branchez Audio_R (RIN) sur OUT2_R et Audio_L (LIN) sur OUT2_L.
C. branchez la mise à terre (GND) sur mise à terre (GND).
D. MIC_RET et OUT_RET sont exclusivement réservés au panneau audio HD. Il est
inutile de les brancher avec le panneau audio AC’97.
E. Pour activer le micro frontal, sélectionnez l’onglet «FrontMic» du panneau de con-
trôle Realtek et réglez le paramètre «Volume d’enregistrement».
1
+5V
DUMMY
DUMMY
SPEAKER
