Français
Français
62 63
Fatal1ty X99 Professional/3.1 Series

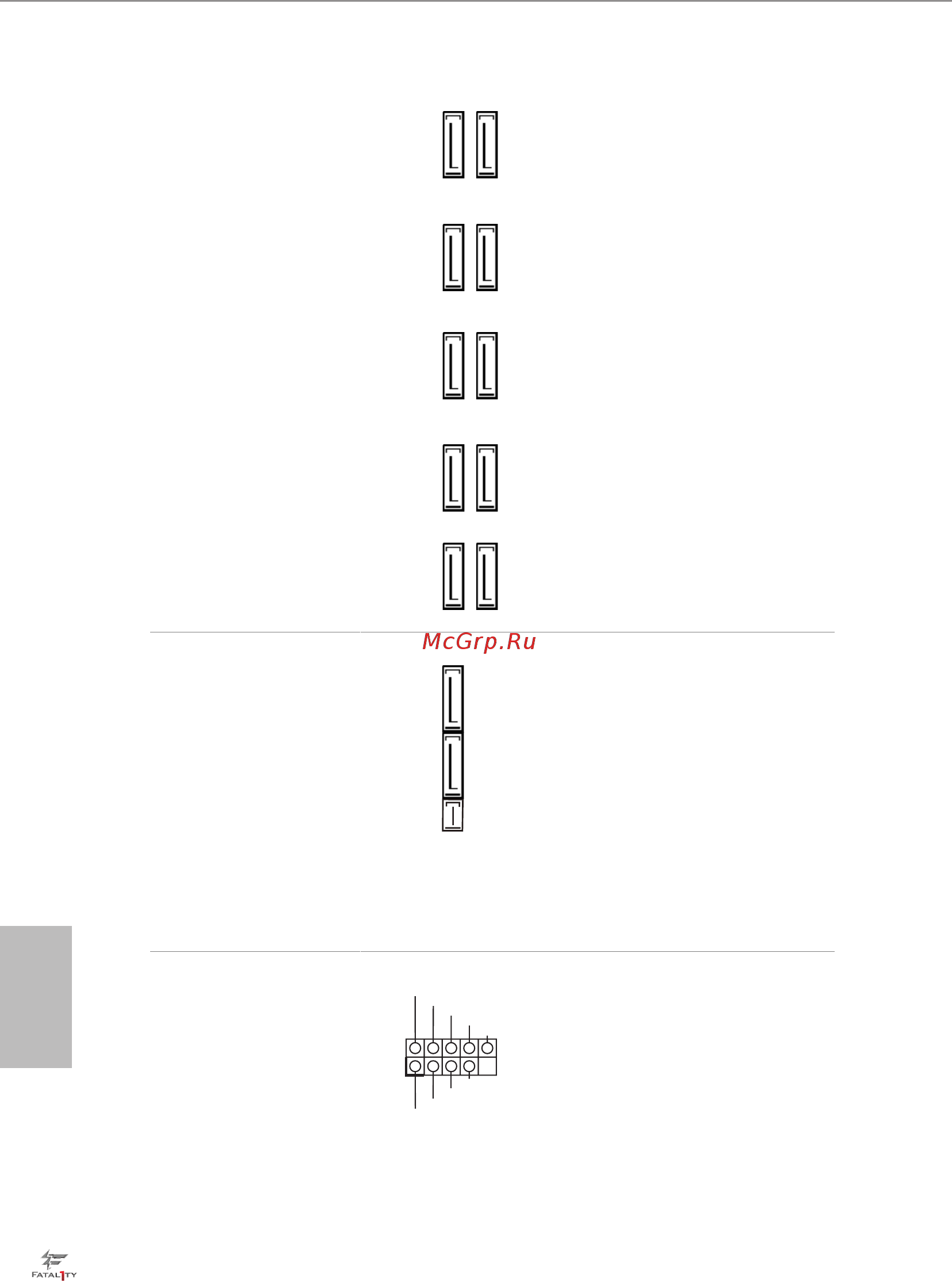

Connecteurs Serial ATA3
(S_SATA3_0_1
(voir p.1, No. 22)
(S_SATA3_2_3:
voir p.1, No. 23)
(SATA3_0_3:
(voir p.1, No. 24)
(SATA3_1_4:
voir p.1, No. 25)
(SATA3_2_5:
(voir p.1, No. 26)
Ces dix connecteurs
SATA3 sont compatibles
avec les câbles de données
SATA pour les appareils
de stockage internes
avec un taux de transfert
maximal de 6,0 Go/s.
Si vous installez un
module M.2 SATA sur
le socket M.2 (M2_1), le
S_SATA3_3 interne ne
fonctionne pas.
*Si vous installez un
module M.2 PCI Express
sur le socket M.2 (M2_1),
le S_SATA3_3 interne
fonctionne toujours.
* RAID est uniquement
pris en charge sur les ports
SATA3_0 ~ SATA3_5.
Connecteur série ATA
Express
(SATAE_1)
(voir p.1, No. 27)
Veuillez connecter des
périphériques de stockage
SATA ou PCIe à ce
connecteur. Le connec-
teur SATA Express est
partagé avec SATA3_4 et
SATA3_5.
*L’interface SATA Express
est une combinaison de
SATAE_1, SATA3_5 et
SATA3_4.
Embases USB 2.0
(USB3_4 à 9 broches)
(voir p.1, No. 38)
(USB5_6 à 9 broches)
(voir p.1, No. 39)
Neben zwei USB 2.0-Ports
an der E/A-Blende
benden sich zwei
Stileisten an diesem
Motherboard. Jede USB
2.0-Stileiste kann zwei
Ports unterstützen.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_0
SATA3_1
SATA3_4
SATA3_5
SATA3_2
SATA3_3
S_SATA3_0
S_SATA3_1
S_SATA3_2
S_SATA3_3
SATA3_5SATAE_1 SATA3_4
