82 83
Fatal1ty X99 Professional/3.1 Series

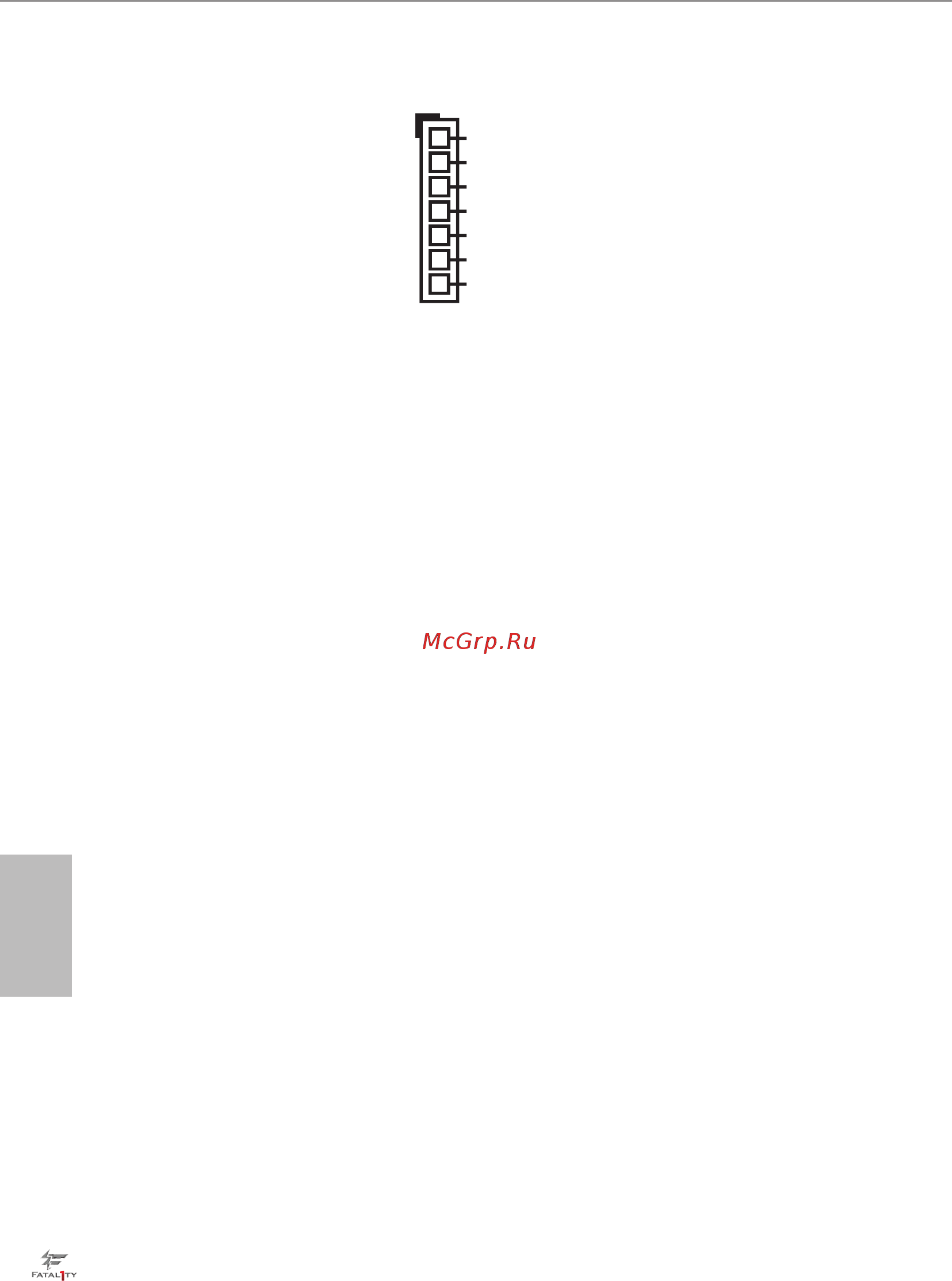

V-Probe
TM
(7-pin VOL_
CON1)
(vedere pag. 1, n.
15)
Gli utenti sono in grado di
misurare la tensione dei
componenti integrati.
PIN1:
1,5V PCH:
Tensione PCH PLL
PIN2:
1,05V PCH:
Tensione PCH
PIN3:
1,05V CPU:
Tensione I/O CPU (CPU_
V10)
PIN4:
VCCM:
Tensione DRAM
PIN5:
CORE: Tensione CPU
CORE
PIN6:
VCC_IN:
Tensione di ingresso CPU
PIN7:
GND
I.5V PCH
1.05V CPU
VCCM
CORE
VCC_IN
GND
1.05V PCH
