146 147
Fatal1ty X99 Professional/3.1 Series

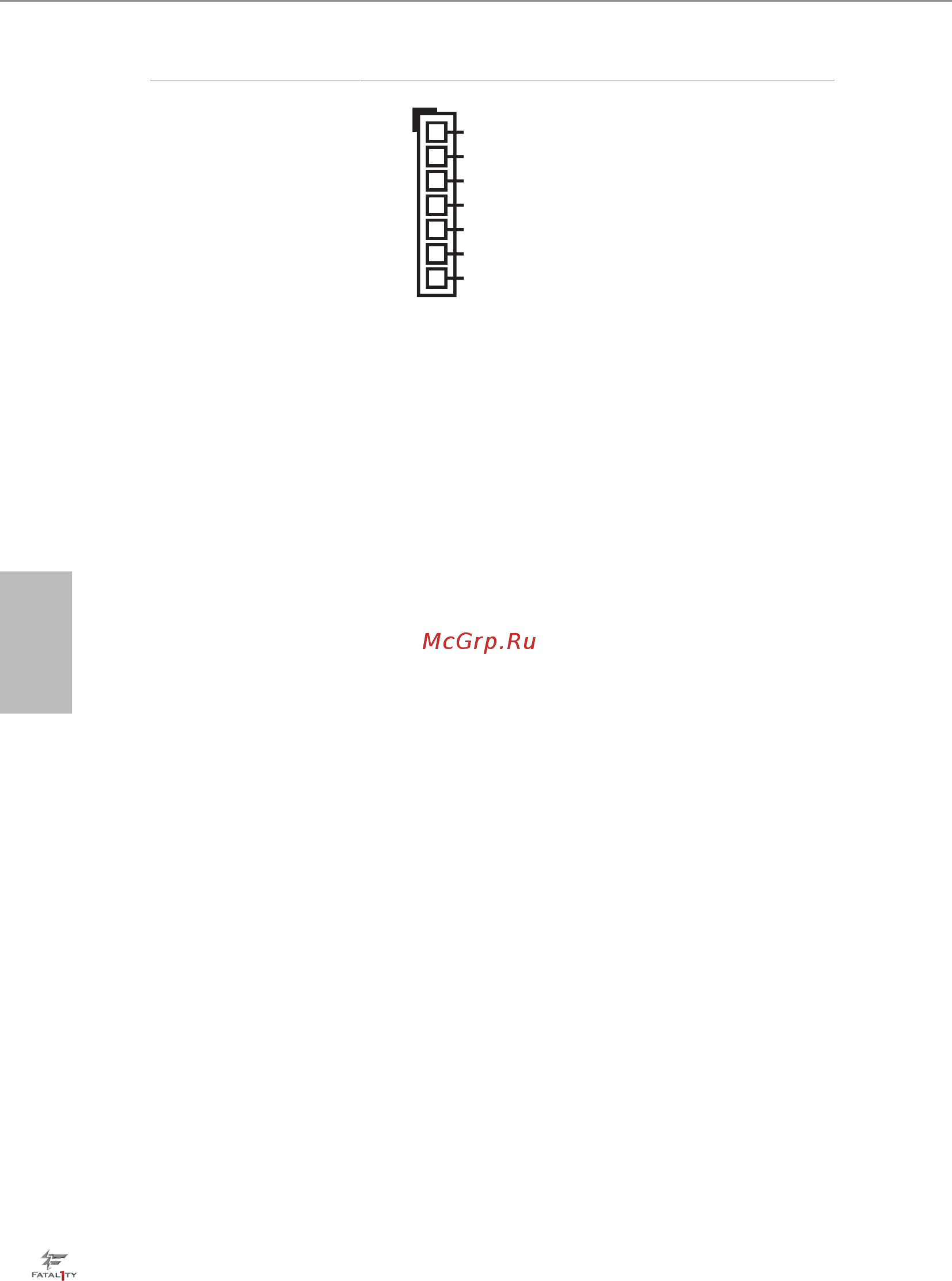

V-Probe
TM
(7-pinli VOL_
CON1)
(bkz. sf.1, No. 15)
Kullanıcılar, karttaki
bileşenlerin voltajını ölçe-
bilir.
PIN1:
1,5V PCH:
PCH PLL Voltajı
PIN2:
1,05V PCH:
PCH Voltajı
PIN3:
1,05V CPU:
CPU I/O Voltajı (CPU_
V10)
PIN4:
VCCM:
DRAM Voltajı
PIN5:
CORE: CPU CORE voltajı
PIN6:
VCC_IN:
CPU Giriş Voltajı
PIN7:
GND
I.5V PCH
1.05V CPU
VCCM
CORE
VCC_IN
GND
1.05V PCH
1
