한 국 어
160 161
Fatal1ty X99 Professional/3.1 Series
섀시 및 전원 팬 커넥터
(4 핀 CHA_FAN1)
(1 페이지 , 40 번 항목 참
조 )
(3 핀 CHA_FAN2)
(1 페이지 , 36 번 항목 참
조 )
(3 핀 CHA_FAN3)
(1 페이지 , 20 번 항목 참
조 )
(3 핀 PWR_FAN1)
(1 페이지 , 46 번 항목 참
조 )
팬 케이블을 팬 커넥터에
연결하고 검은색 와이어를
접지핀에 연결하십시오 .
CHA_FAN 팬 속도는 UEFI
또는 F-Stream 를통하여 제
어할 수 있습니다 .
CPU 팬 커넥터
(4 핀 CPU_FAN1)
(1 페이지 , 5 번 항목 참
조 )
(3 핀 CPU_FAN2)
(1 페이지 , 8 번 항목 참
조 )
이 마더보드에는 4 핀 CPU
팬 ( 저소음 팬 ) 커넥터가
탑재되어 있습니다 . 3 핀
CPU 팬을 연결하려는 경
우 핀 1-3 에 연결하십시오 .
ATX 전원 커넥터
(24 핀 ATXPWR1)
(1 페이지 , 17 번 항목 참
조 )
이 마더보드에는 24 핀
ATX 전원 커넥터가 탑재
되어 있습니다 . 20 핀 ATX
전원공급장치를 사용하려
면 핀 1 과 핀 13 을 따라 연
결하십시오 .
ATX 12V 전원 커넥터
(8 핀 ATX12V1)
(1 페이지 , 3 번 항목 참
조 )
이 마더보드는 1 개의 8- 핀
ATX 12V 전원 커넥터와 1
개의 4- 핀 ATX 12V 전원
커넥터를 제공합니다 . 4-
핀 ATX 전원 공급장치를
사용하려면 , 이를 핀 1 과
핀 5 에 연결하십시오 .

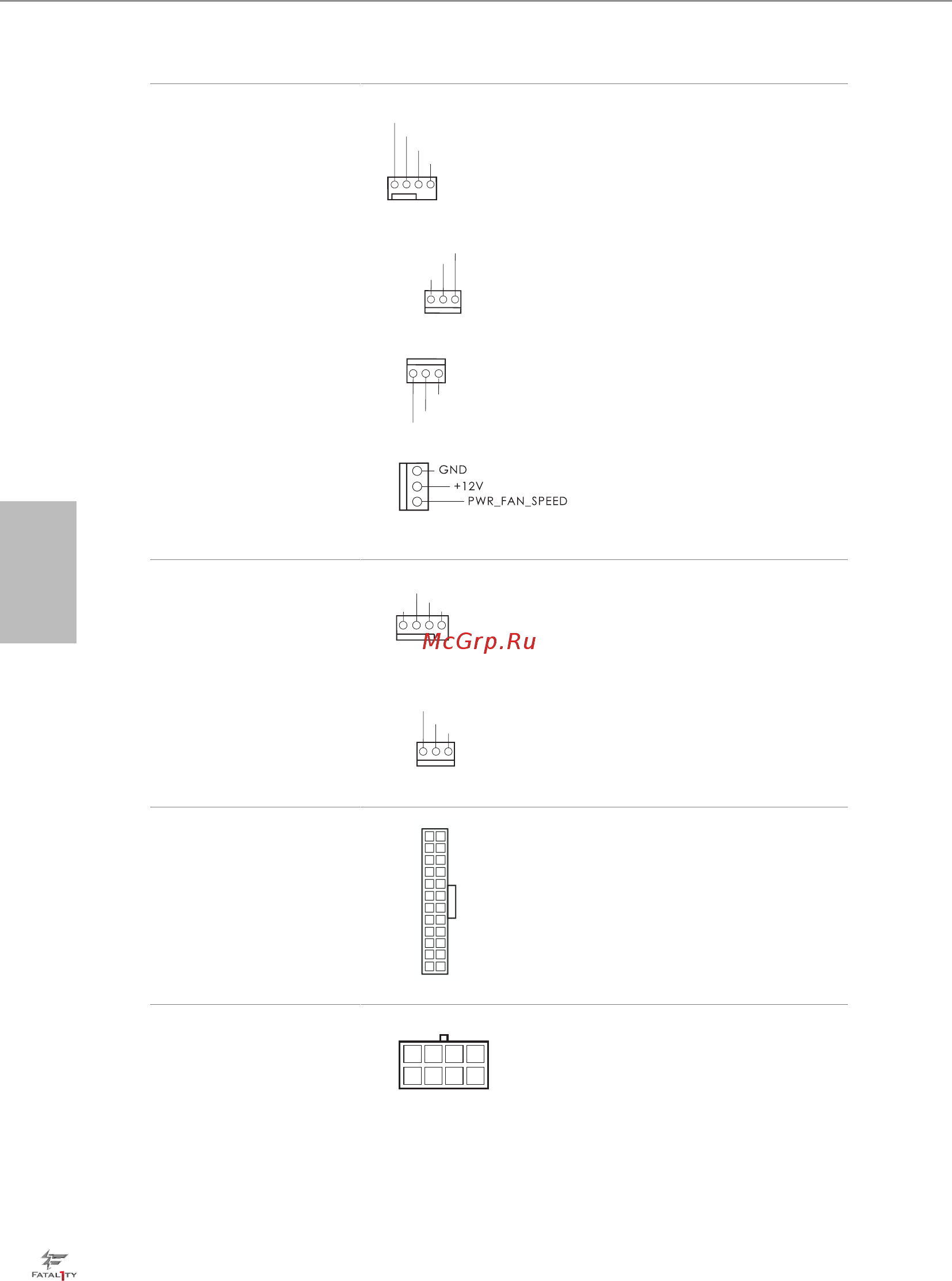

12
1
24
13
GN
D
CPU_FA
N_SPEED
FAN_VOLTAGE
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
5
1
8
4
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
GND
FAN_VOLTAG
E
CHA_FAN_SPEED
GND
FAN_VOLTAGE
CHA
_
FAN
_
SPEED
