Português
128 129
Fatal1ty X99 Professional/3.1 Series
1
+12V DETECT
GND

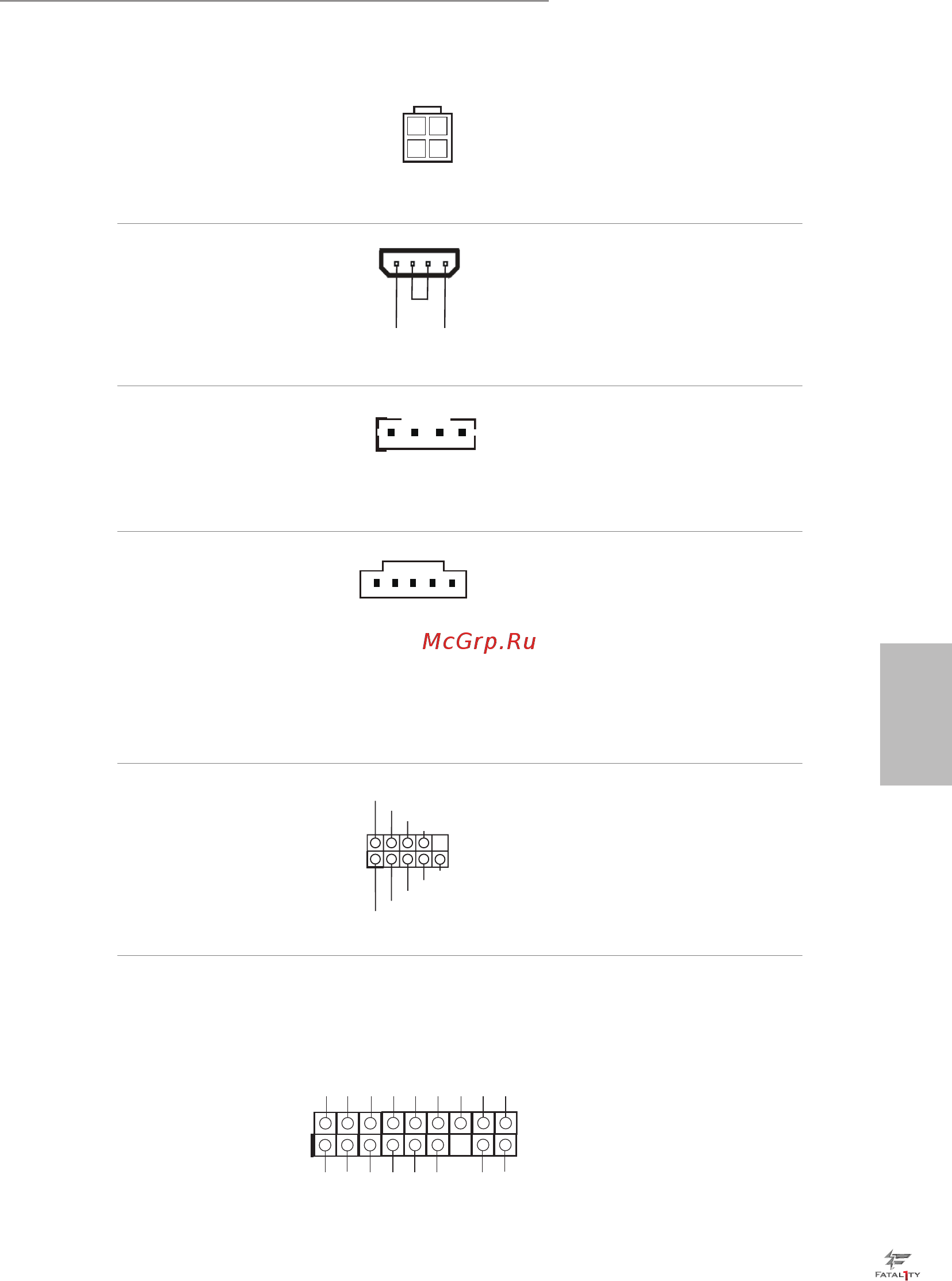

(ATX12V2 de 4 pinos)
(ver p.1, N.º 4)
* O conector de energia
ATX 12V de 4 pinos é usa-
do para fornecer energia
adicional para a placa-mãe.
Conector de Energia PCIe
(PCIE_PWR1 4-pinos)
(ver p.1, N.º 43)
Por favor conecte um cabo de
alimentação molex de 4 pinos
a este conector quando mais de
três PCI Express cartão estão
instaladas.
Conector Protetor de
HDD
(SATA_PWR_1 4-pinos)
(ver p.1, N.º 28)
Por favor, conecte o Cabo Protetor
de HDD a este conector para
gerenciar o estado de energia do
HDD.
Conector underbolt
AIC
(5-pinos TBT1)
(ver p.1, N.º 44)
Por favor, conecte um cabo de
sinal de 5 pinos (cabo GPIO) a
este conector quando você instalar
uma placa adicional underbolt™
(AIC).
* Por favor, instale o cartão
underbolt ™ AIC para PCIE3
(slot padrão).
Suporte da porta serial
(COM1 de 9 pinos)
(ver p.1, N.º 42)
Este suporte COM1 recebe
um módulo da porta serial.
Suporte TPM
(TPMS1 de 17 pinos)
(ver p.1, N.º 37)
Este conector suporta um sistema
com Módulo de Plataforma Con-
ável (TPM), que pode armazenar
com segurança chaves, certica-
dos digitais, senhas e dados. Um
sistema TPM também ajuda a
melhorar a segurança de rede, a
proteger identidades digitais e a
garantir a integridade da plata-
forma.
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
1
GN D
SMB_DATA_MAIN
LAD2
LAD1
GN D
S_PWRDWN #
SERIRQ #
GN
D
P CICL K
P CIRST #
LAD3
+3V
LAD0
+3VS B
GN D
FRAM E
SMB_CLK_MAIN
