ASRock 3U8G-C612/V [13/59] System rear panel

8 9

English

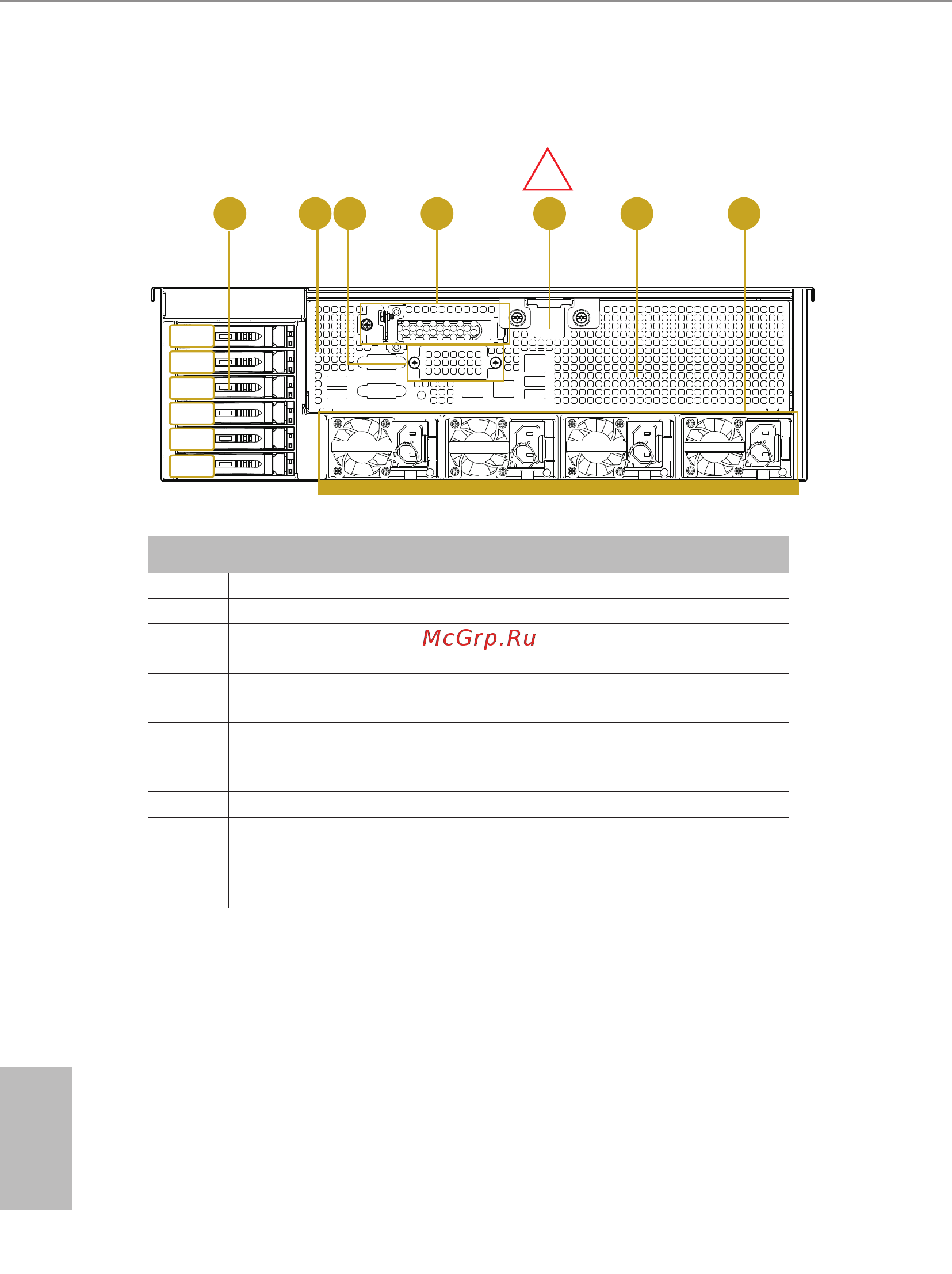

2.4 System Rear Panel

6 7

WARNING! Do NOT open the tray if the server

is not powered down or while it is still running.

Redundant PSU 3+1: Only one PSU is allowed to be removed while the server is running.

HDD 0

HDD 1

HDD 2

HDD 3

HDD 4

HDD 5

No. Description

1 6 x 2.5" HDD trays

2 I/O Shield (depends on the specication of the server board)

3 Mezzanine Card Support for 1GbE x 2 or 10GbE x2

*Only supported for 3U8G-C612.

4 Low Prole PCI Express Slot (for the riser card)

*Only supported for 3U8G-C612/V.

5 Motherboard Tray Handle*

*WARNING! Please do NOT open the tray if the server is not powered down or while it is

still running.

6 Rear Vent

7 4 x Power Supply Units (Redundant PSU 3+1)

*Server requires 3 working PSUs, with 1 redundant PSU. You must have at least three ac-

tive supplies, installed, functioning and connected to AC. Only one of the PSUs is allowed

to be removed while the server is running.
