36 37
English
3.7 Add-on Card (Low Prole)
1. You can install an add-on card to the chassis only when you have a riser card installed on the
server board.
2. Use a 1U low prole passive heatsink for the processor nearest to the add-on card on your
server board.
3. Before installing the add-on card, power o the server and unplug the power cord.
Please be noted that add-on card is supported for certain models only. Please check the
rear panel of your chassis and see if a low prole PCI Express slot is provided on the I/O
shield.

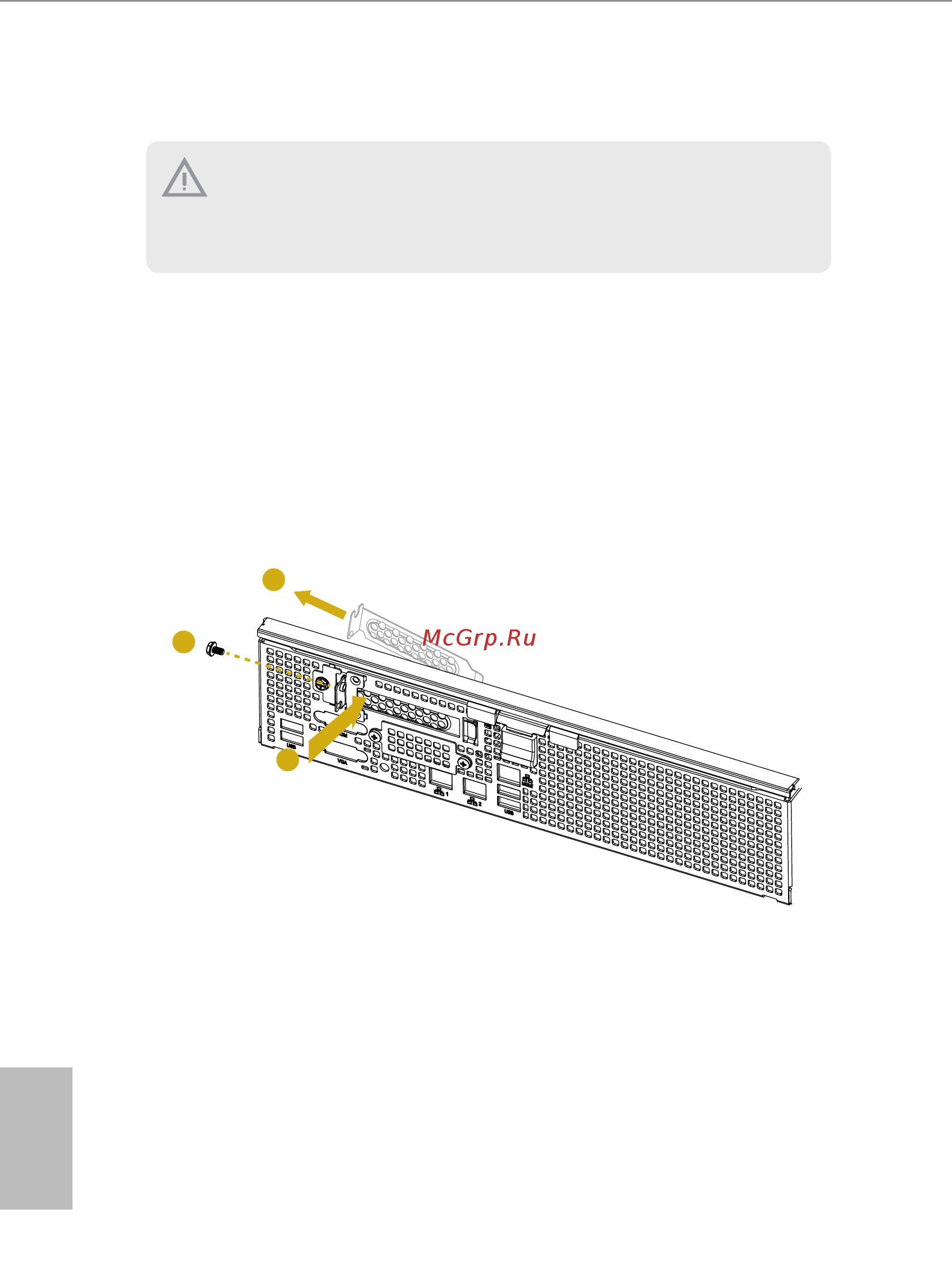

Removing the Blanking Plate from the Chassis
1. Remove the screw securing the blanking plate on the chassis. Keep this screw for later
use.
2. Push the the le end of the blanking plate toward the chassis.
3. Slide the blanking plate out sideways.
2
1
3
