3U8G Series
50 51
English

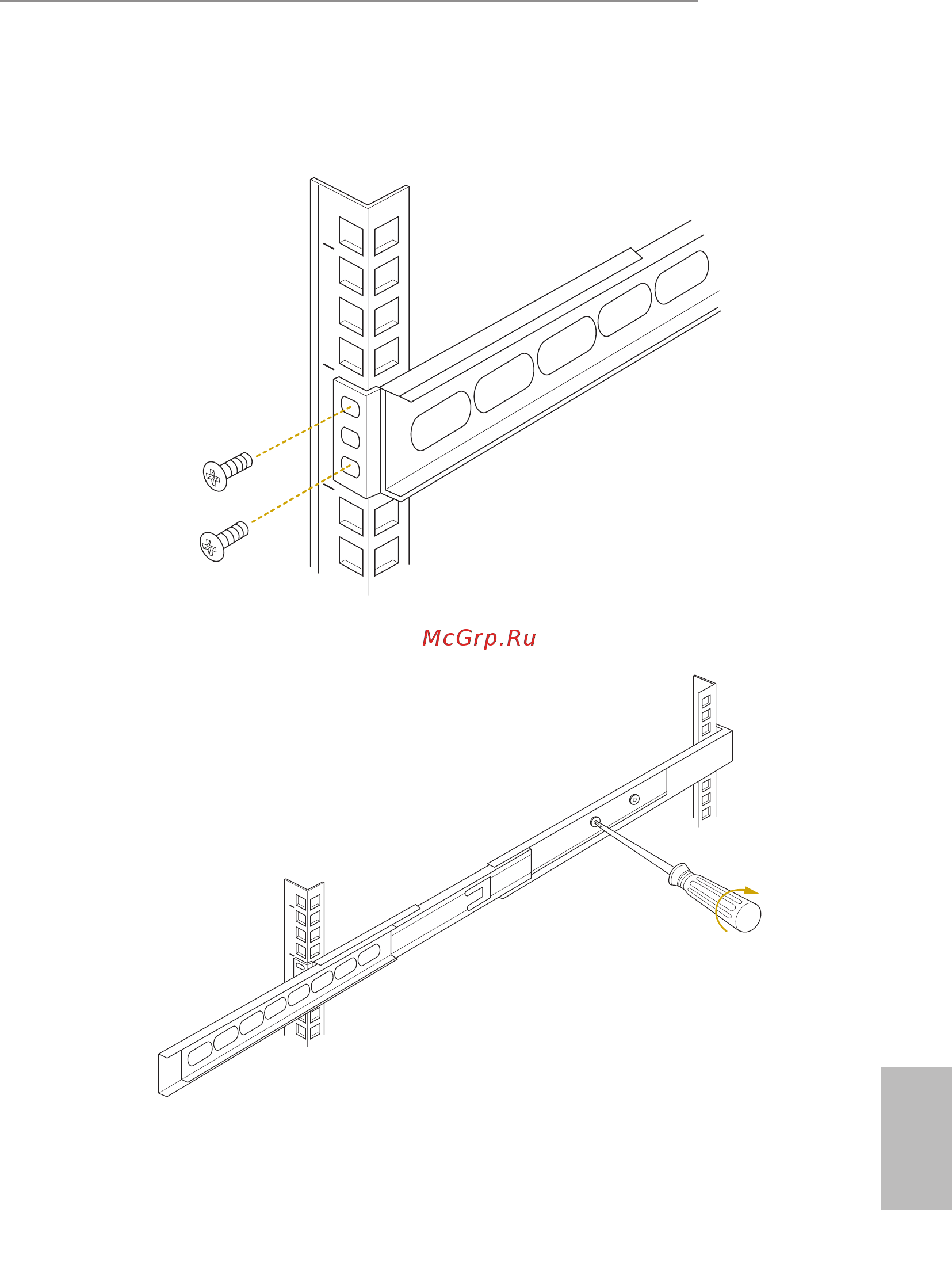

4. Align the holes on the brackets with the mounting holes you selected on the rack.
5. Tighten the screws to secure the slide rails to the rack. Make sure the rear bracket
meets the rear vertical rail of the rack.
11U
12U
6. Fully tighten the lock nuts on the rear bracket.
11U
12U
