26 27
English

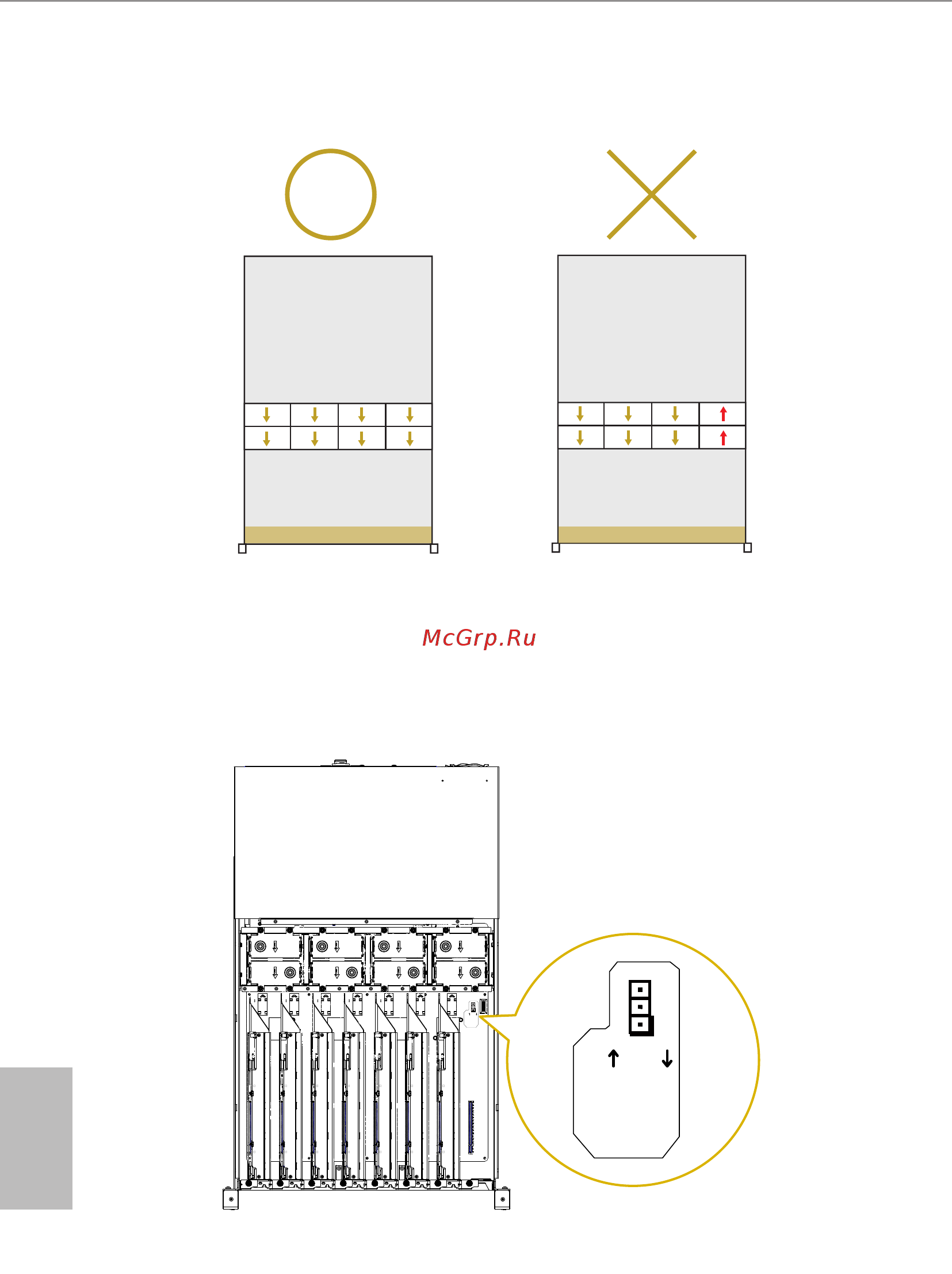

4. Make sure all fans are well seated and all arrows on the fans are pointed to the FRONT
of the chassis.
For active GPU/MIC cards
Back-to-front air flow
FRONT FRONT
5. Remove the front top cover and remove the GPGPU card from the Slot 8.
*
For more instructions on how to remove and install a GPGPU card, please refer to the section entitled “3.5
GPG or MIC Card”.
6. Move the jumper caps placed on the FAN Flow Switch Jumper (FAN_FLOW_SW1)
from pins 1-2 (default) to pins 2-3 on the switchboard (SWB).
1
FAN_FLOW_SW1
Jumper Pin1 - 2:
For Passive Card,
Fan Air Flow
Jumper Pin2 - 3:
For Active Card,
Fan Air Flow
FAN_FLOW_SW1
Jumper Pin1 - 2:
For Passive Card,
Fan Air Flow
Jumper Pin2 - 3:
For Active Card,
Fan Air Flow
1
