3U8G Series
36 37
English
Installing the Add-on Card
Before installing an add-on card, you need to install a mezzanine card and a riser card
rst. Please refer to the followings for instructions.

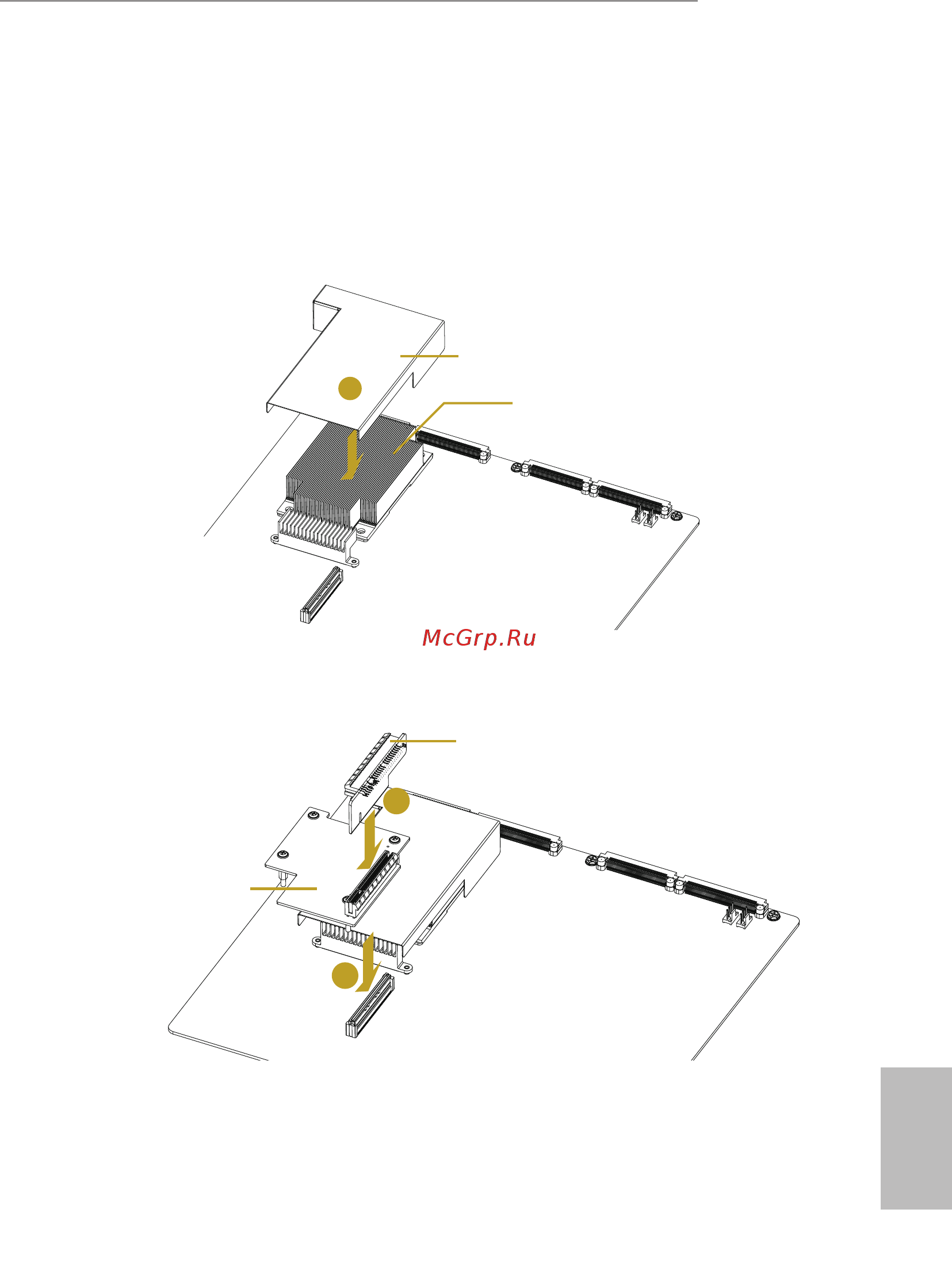

1. Peel o the adhesive backing on the bottom side of the air bae. Gently attach the air
bae onto the low prole passive heatsink.
1
Air Baffle
Low Profile Passive Heatsink
2. Install the mezzanine card as shown below.
3. Install the riser card to the mezzanine card.
2
3
Riser Card
Mezzanine Card
