3U8G Series
46 47
English
Appendix B

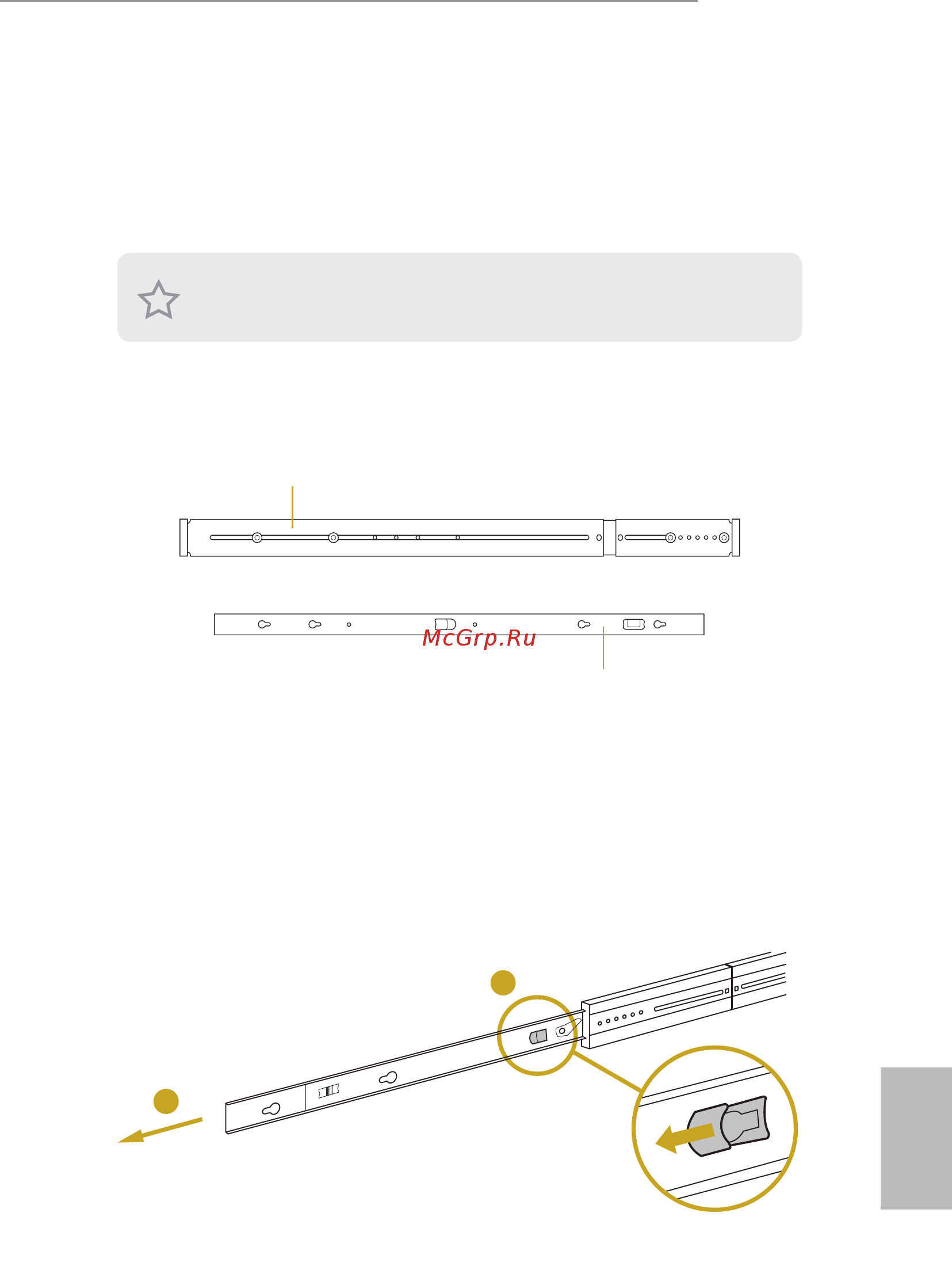

Installing the Server in a Rack
is section describes how to rackmount the server with slide rail assemblies.
e slide rail assembly consists of a chassis rail and a slide rail.
You need to attach the chassis rails to the server and attach the slide rail assemblies to the
rack.
Slide Rail
Chassis Rail
Removing the Chassis Rail from the Slide Rail Assembly
1. Pull out the inner chassis rail from the rail assembly.
2. Push the white chassis rail release button toward the front, and simultaneously
withdraw the chassis rail from the slide rail assembly.
3. Repeat for the remaining rail assembly.
1
2
3
1. e rails installation instructions in this manual are example only, your actual rail
assembly procedure may dier slightly .
2. Please purchase the rail assembly seperately if needed.
