ASRock 3U8G-C612/V [20/59] U8g series
![ASRock 3U8G-C612/V [20/59] U8g series](/views2/1694134/page20/bg14.png)
3U8G Series
14 15
English

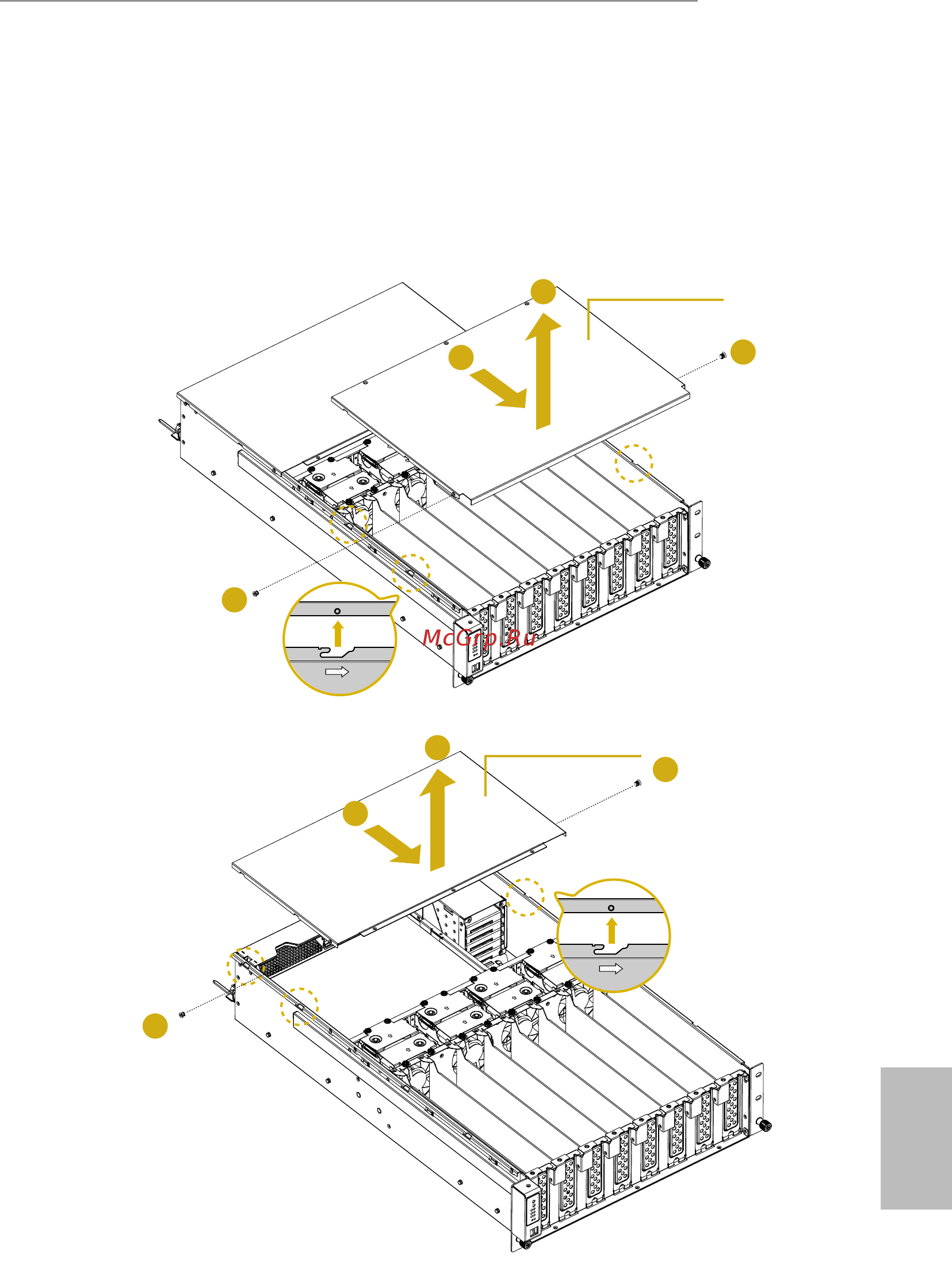

(B) Top Front Cover and (C) Top Rear Cover
1. Remove the two screws that secure the top front or rear cover to the chassis.
2. Push the top front cover or the top rear cover toward the FRONT of the chassis to
remove the cover from the locked position.
3. Li up and remove the top front and rear cover.
2
3
Top Front Cover
Top Rear Cover
2
3
1
1
1
1
