30 31
English

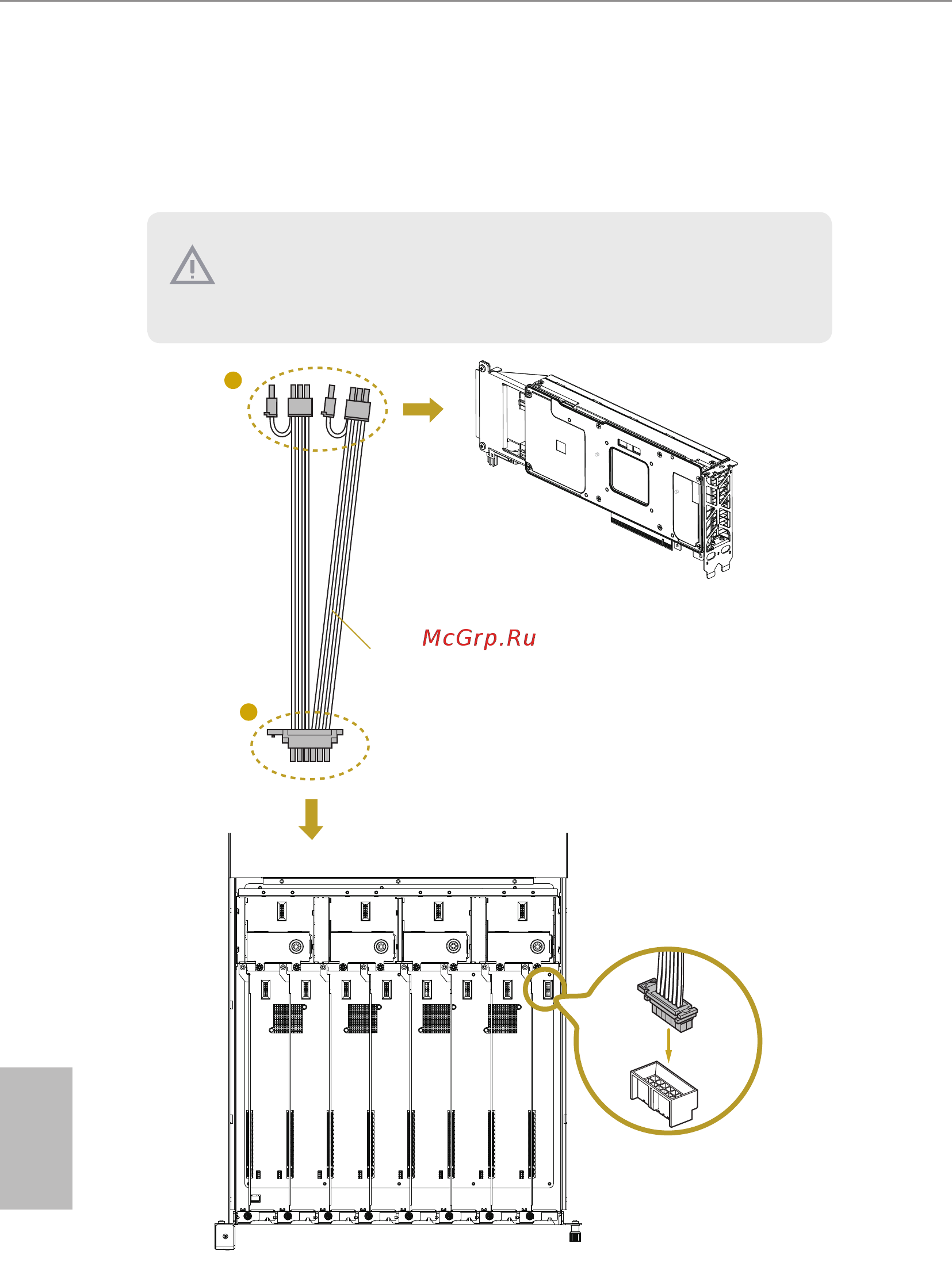

5. Connect the GPGPU Power Cable between a GPU/MIC card and the switchboard.
Connect one end (B) of the GPGPU Power Cable to the connector on the switchboard
(SWB). en, connect the other ends (A) to the back of the GPU/MIC card or on the
side of the card.
If the power connectors of the GPGPU card you use are on the top side, the connectors and
the connected cable will extend the height of the card; thus, you will need a 4U top (front)
cover. Please purchase separately if needed. To know how to install top covers, please refer
to “3.1 Server Top Cover - Installing the Server Top Covers“.
A
B
GPGPU Power Cable
