3U8G Series
32 33
English
3.6 Motherboard Tray
Removing the Motherboard Tray

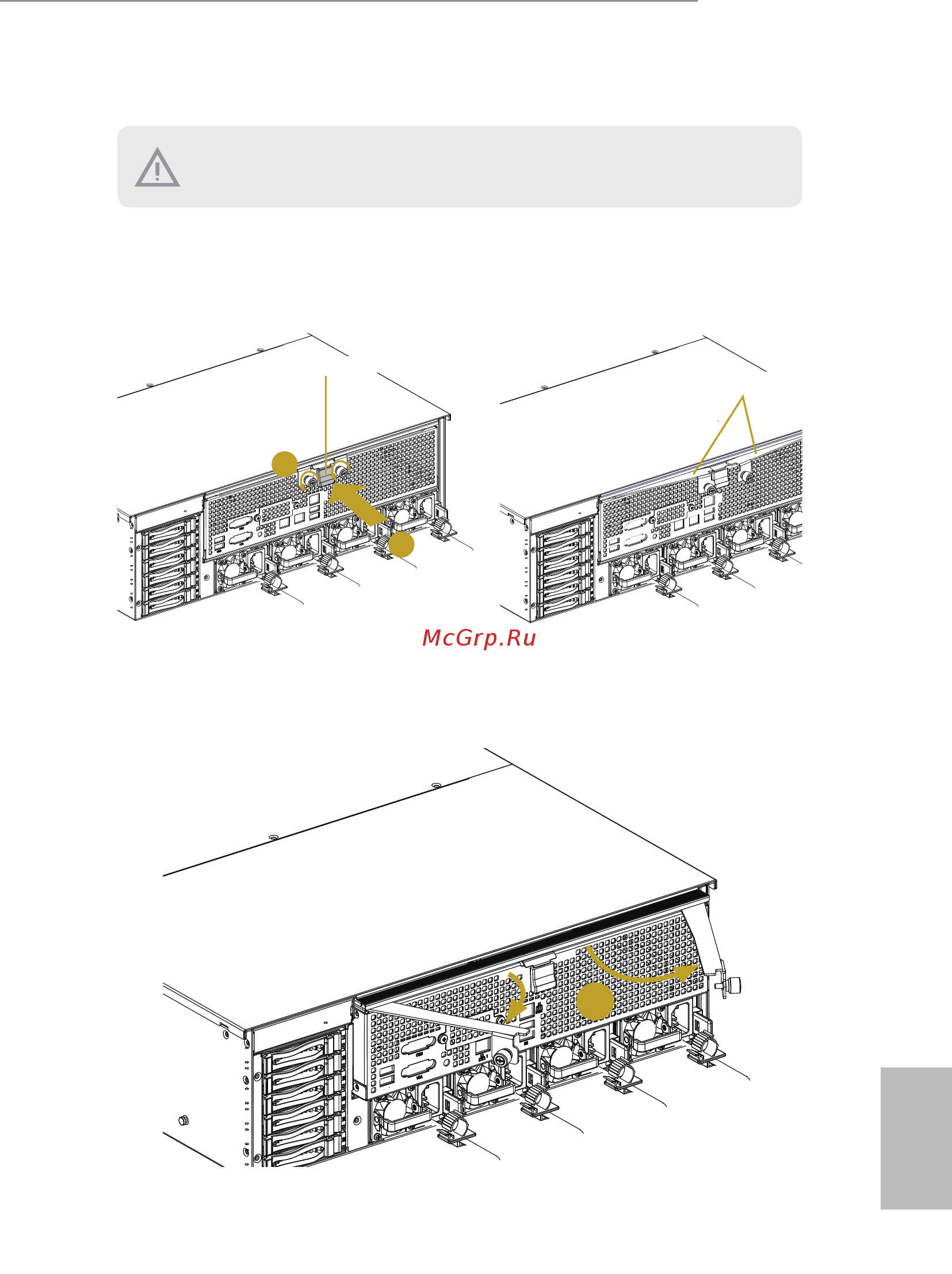

1. Release the two thumb screws on the motherboard tray.
2. Press the locking tab in the middle to release the handles.
Release Handles
1
Locking Tab
2
3. Rotate and open the release handles on the sides of the motherboard tray to disengage
the tray from the chassis.
3
Attention! DO NOT open the motherboard tray if the server is not powered down or while
it is still running.
