3U8G Series
22 23
English

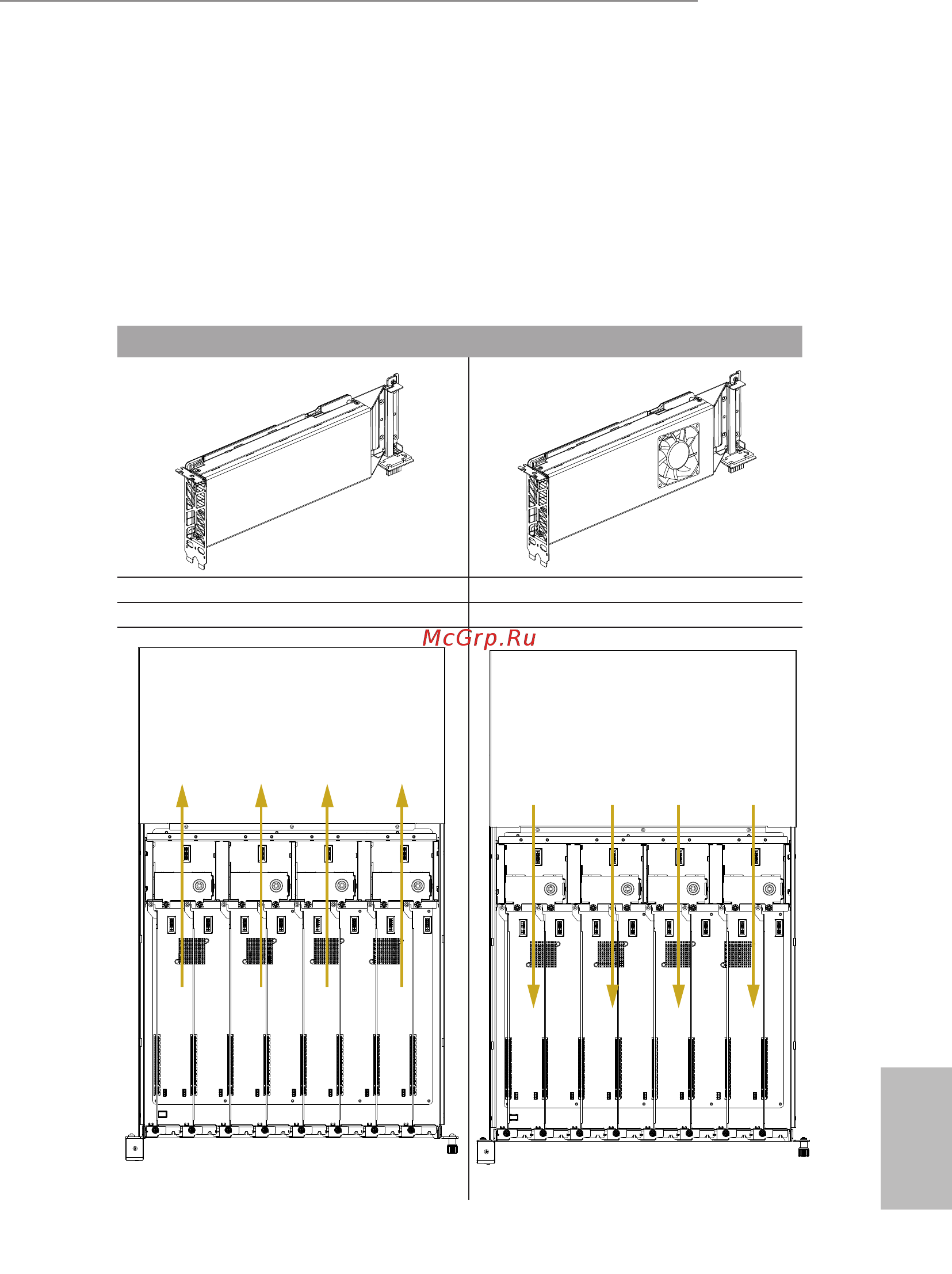

Reversing the Fan Modules (only required for active GPGPU users)
If you are using "active" GPGPU cards that are equipped with one or more fans on
the cards, the system requires back-to-front air ow routing, so you need to reverse
the fan modules before installing the system fans.
*A front-to-back airow for active cards may also be possible and can be dened by customers aer
validation (when operation temperature is under 25°C).
*Be sure to completely power down the system before reversing the fan modules.
Passive GPU/MIC Card Active GPU/MIC Card
(Default) Reverse the fan modules
Front-to-back air ow routing Back-to-front air ow routing
