ASRock 3U8G-C612/V [37/59] English
![ASRock 3U8G-C612/V [37/59] English](/views2/1694134/page37/bg25.png)
32 33
English
8
7

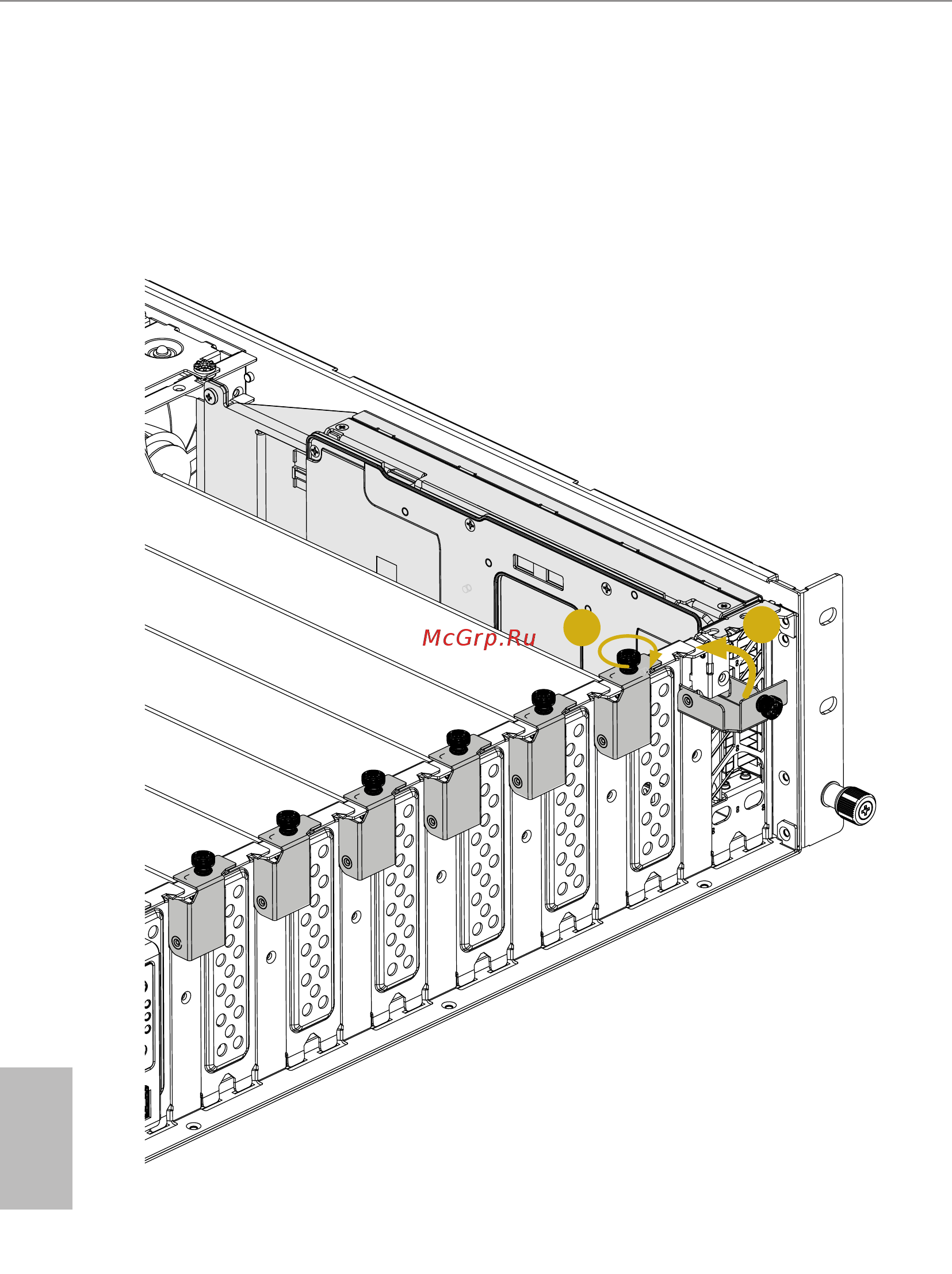

7. Pull up the retention lever.
8. Hand tighten the screw to secure the inserted GPU/MIC card.
