3U8G Series
34 35
English
Installing the Motherboard Tray

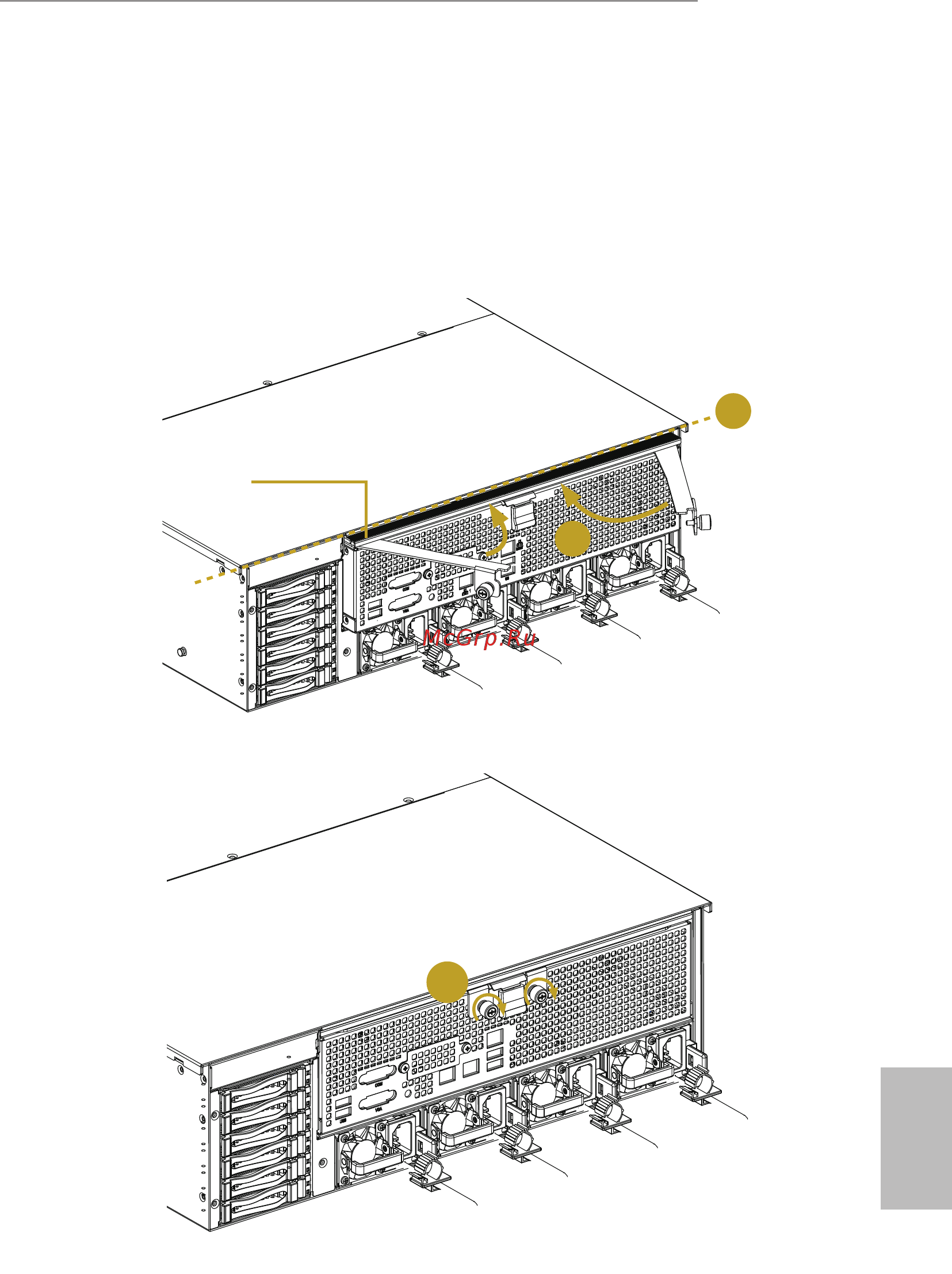

1. Gently and slowly slide the motherboard tray into the chassis until the black line on the
tray almost reaches the edge of the chassis.
2. Make sure the black line on the top edge of the tray is evenly aligned with the edge of
the chassis.
3. en close the release handles completely. Push and make sure the tray moves back
fully into the chassis.
3
2
Black Line
4. Tighten the two thumb screws on the motherboard tray.
4
2
