3U8G Series
8 9
English

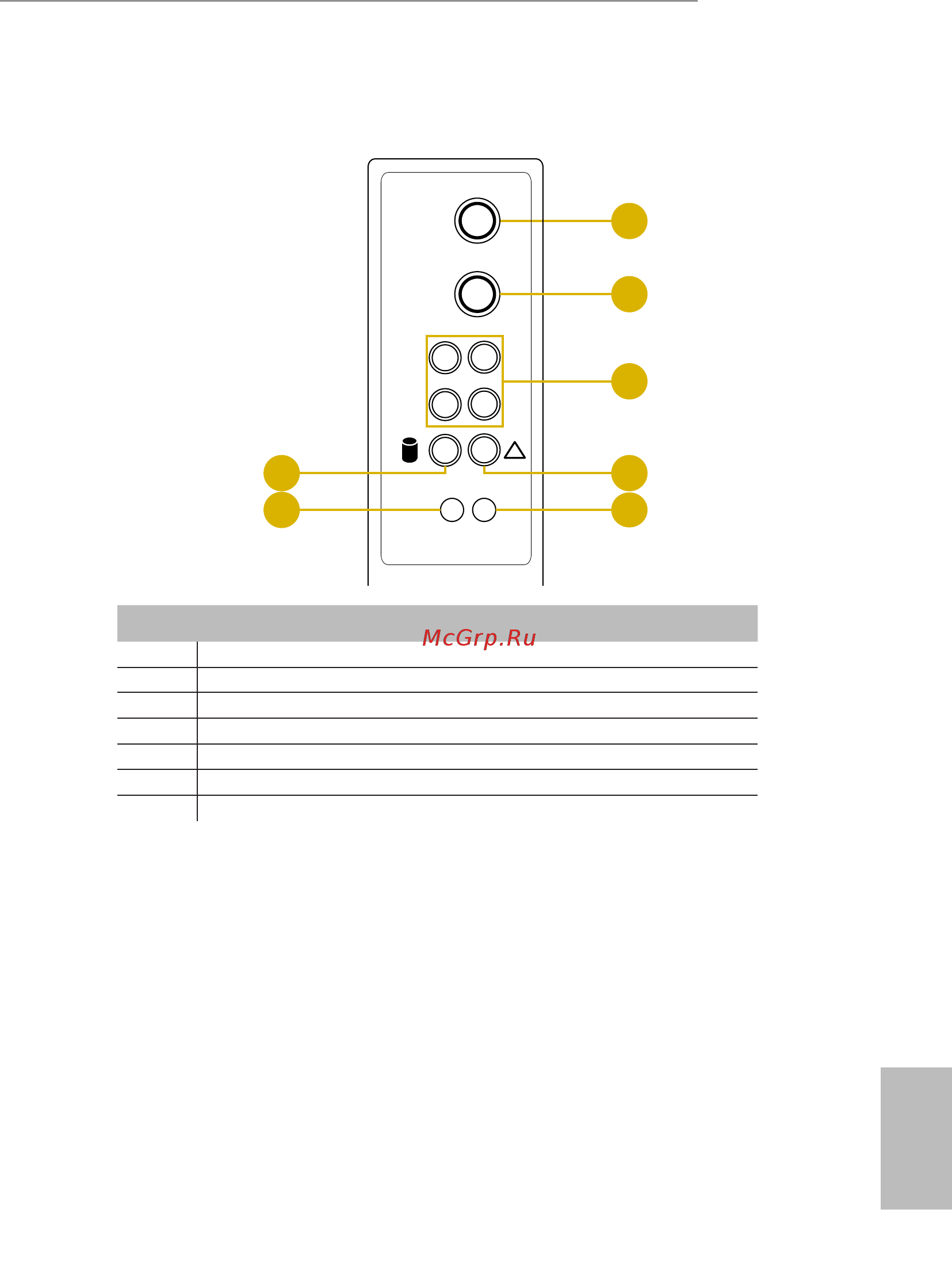

2.5 Front Control Panel Buttons and LEDs
Front Control Panel
2
7
3
6
5
4
UID
NMI
RST
L1
L2
L3
L4
PWR
BTN
!
1
No. Description
1 Power Button and LED
2 UID Button and LED*
3 LAN1, LAN2, LAN3, LAN4 Activity LEDs*
4 HDD Activity LED
5 System Event LED*
6 NMI (Nonmaskable Interrupt) Button*
7 System Reset Button
*Please be noted that the functions are supported depending on the type of the server board.
Power Button
Press the power switch button to toggle the system power on and standby/sleep modes.
To remove all power from the system completely, disconnect the power cord from the
server.
ID Button
Press the ID button to toggle the front panel ID LED and the baseboard ID LED on and
o. You are able to locate the server you’re working on from behind a rack of servers.
