ASRock 3U8G-C612/V [19/59] Server top cover
![ASRock 3U8G-C612/V [19/59] Server top cover](/views2/1694134/page19/bg13.png)
14 15
English
3.1 Server Top Cover
Removing the Server Top Covers
Intall Components Remove Top Covers Referenced Chapters
System Fan (A) middle Chapter 3.4 (p.22)
GPU / Graphics Card (A) middle and (B) front covers Chapter 3.5 (p.28)
CPU / DIMM (A) middle and (C) rear covers Appendix A (p.38)

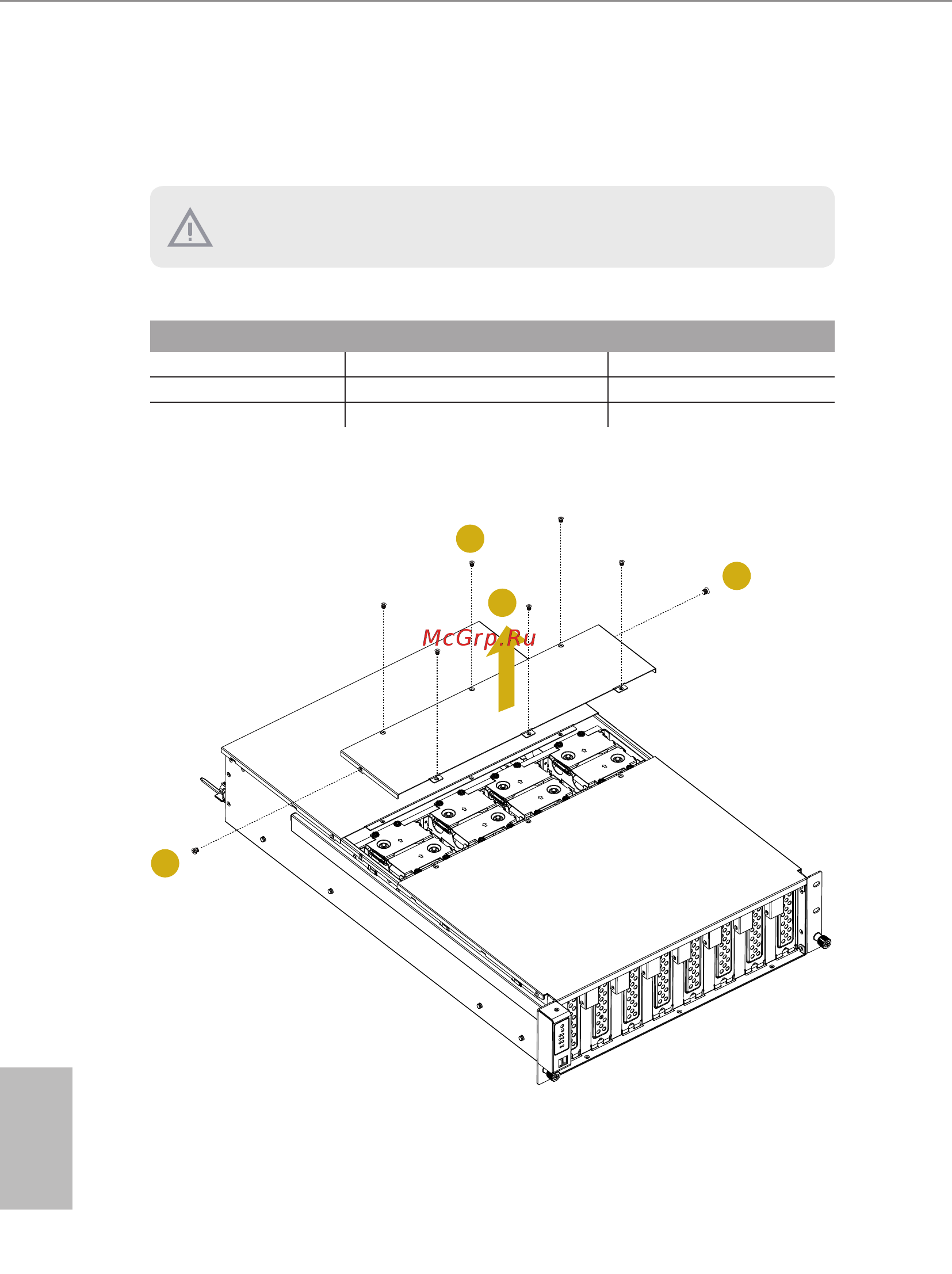

(A) Top Middle Cover
1
1
1
2
1. Remove the eight screws that secure the top middle cover to the chassis.
2. Li up and remove the top middle cover.
1. Before removing the top covers, power o the server and unplug the power cord.
2. e system must be operated with all the chassis top covers installed to ensure proper cooling.
