3U8G Series
24 25
English

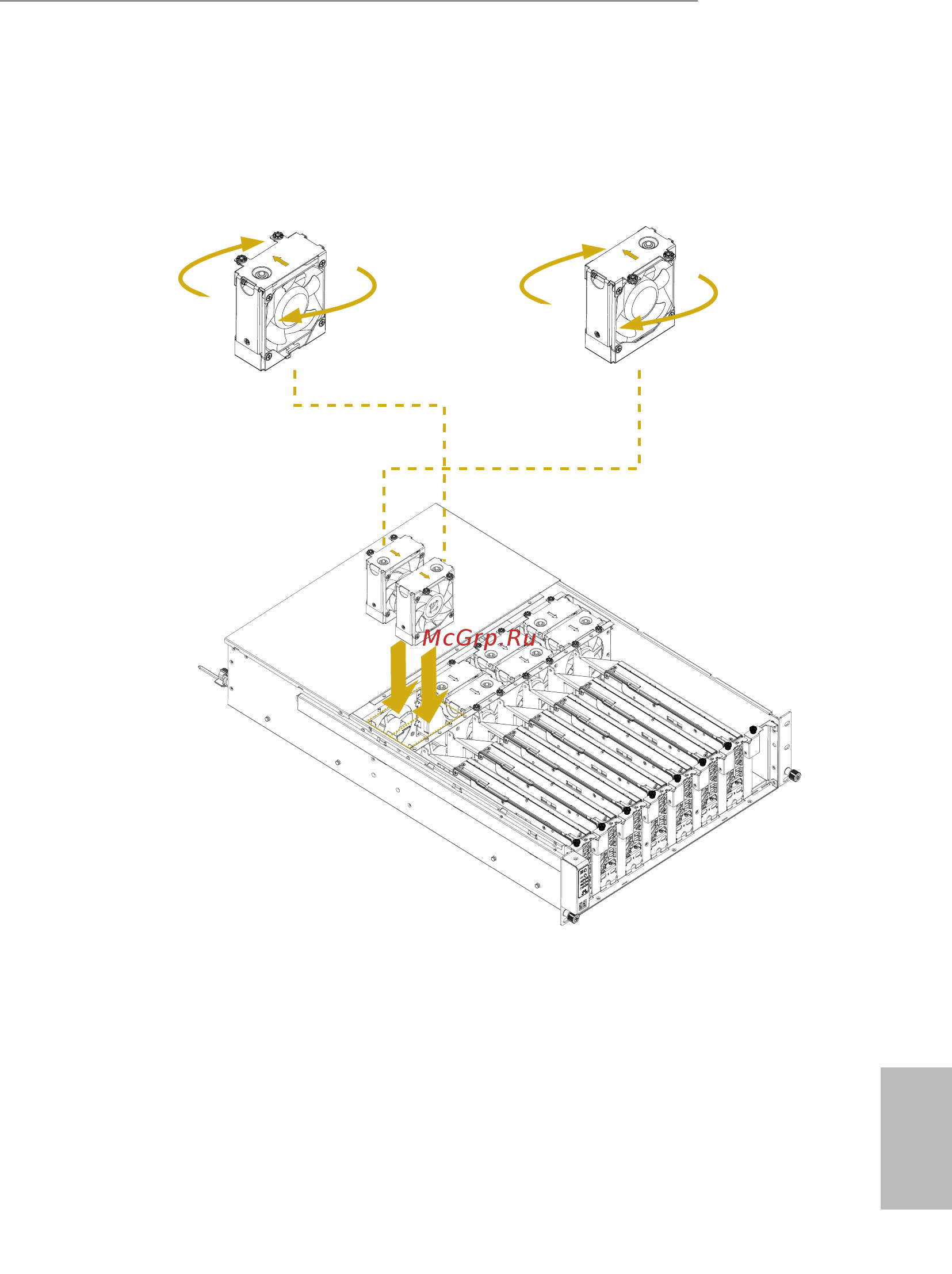

2. Turn all the four fan modules (A) 180 degrees around. Place them to the rear row.
3. Turn all the four fan modules (B) 180 degrees around. Place them to the front row.
180゜
180゜
A
B
B
A
FRONT
REAR
