Технические данные Страница: 170

Daikin RXYQ16M7W1B [170/182] Inverter heat pump rxyq5m7w1b rxyq8 10m8w1b

• Systems • Outdoor Units

169

• Inverter heat pump • RXYQ5M7W1B, RXYQ8,10M8W1B

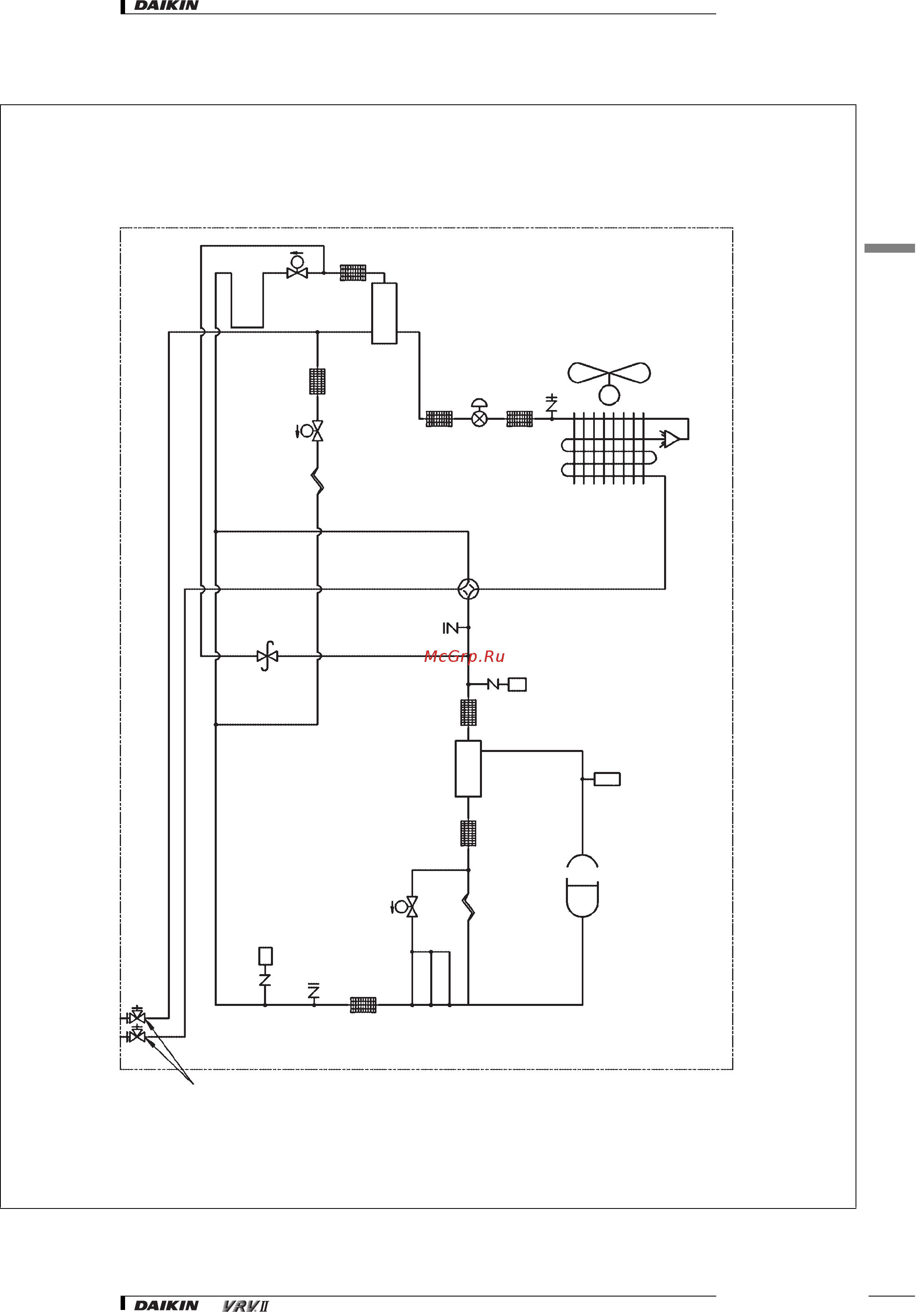

7 Piping diagrams

RXYQ5M

4TW25795-1

Solenoid

valve

Solenoid

valve

Solenoid

valve

Filter

Electronic

expansion valve

Filter

Fan

Heat exchanger

Four way

valve

Pressure

regulating

valve

High pressure

sensor

Compressor

INV

HPS

High pressure

switch

Low pressure

sensor

Filter

Receiver

Filter

FilterFilter

Filter

Stop valve

(With service port on on-site piping side ø7.9mm flare connection)

Oil

separator

Capillary

tube

Capillary

tube
