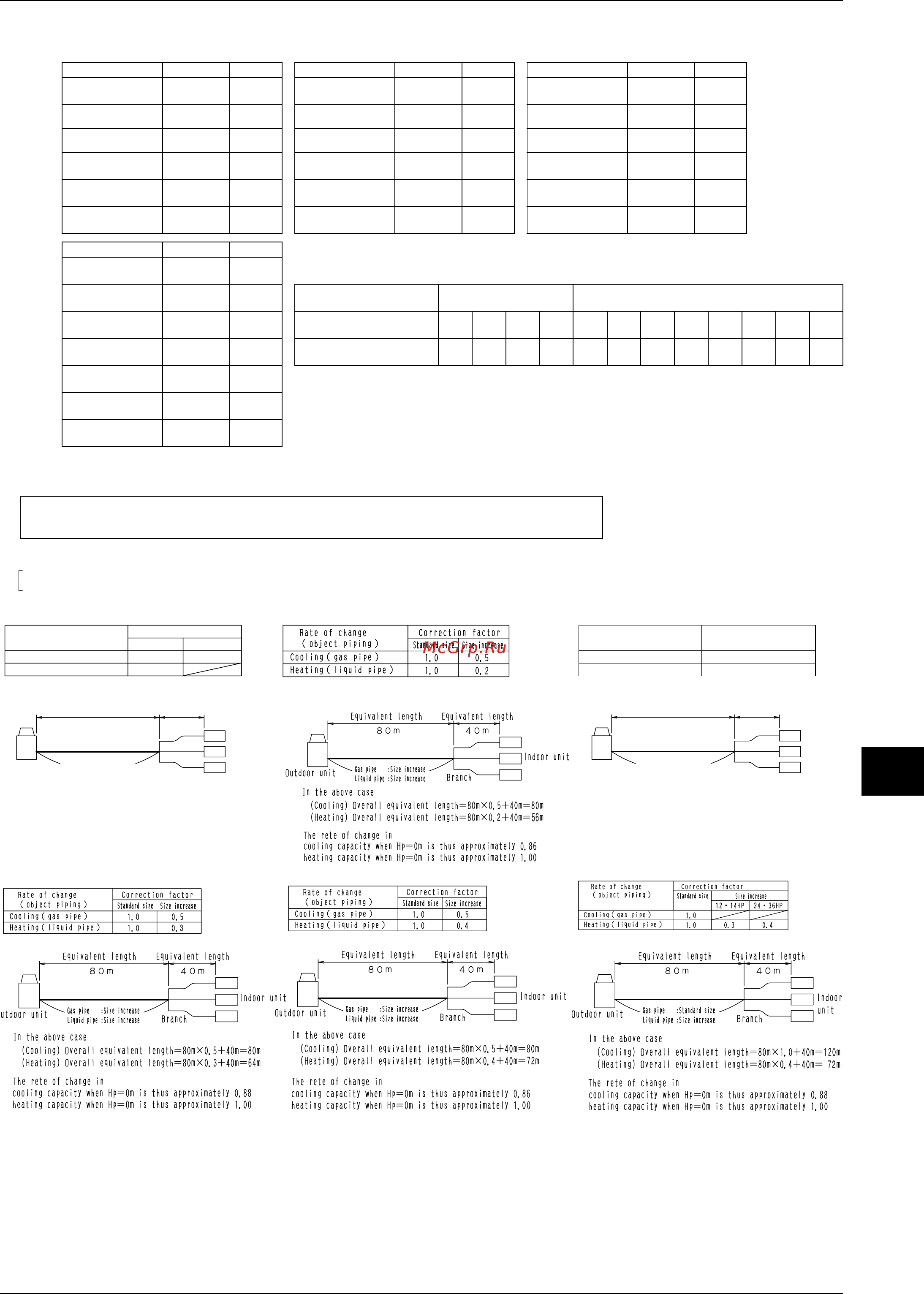

ED34-645B Capacity Tables (Heat Pump)
RXYQ-P 531
13
Diameter of above case
Model Gas Liquid Model Gas Liquid Model Gas Liquid
RXYQ5PY1, YL φ19.1
Not
Increased
RXYQ18PY1, YL φ31.8 φ19.1 RXYQ30PY1, YL φ38.1* φ22.2
RXYQ8PY1, YL φ22.2 φ12.7 RXYQ20PY1, YL φ31.8 φ19.1 RXYQ32PY1, YL φ38.1* φ22.2
RXYQ10PY1, YL φ25.4* φ12.7 RXYQ22PY1, YL φ31.8 φ19.1 RXYQ34PY1, YL φ38.1* φ22.2
RXYQ12PY1, YL
Not
Increased
φ15.9 RXYQ24PY1, YL
Not
Increased
φ19.1 RXYQ36PY1, YL
Not
Increased
φ22.2
RXYQ14PY1, YL
Not
Increased
φ15.9 RXYQ26PY1, YL φ38.1* φ22.2 RXYQ38PY1, YL
Not
Increased
φ22.2
RXYQ16PY1, YL φ31.8 φ15.9 RXYQ28PY1, YL φ38.1* φ22.2 RXYQ40PY1, YL
Not
Increased
φ22.2
Model Gas Liquid *If available on the site, use this size. Otherwise it can not be increased.
(Unit: mm)
RXYQ42PY1, YL
Not
Increased
φ22.2
RXYQ44PY1, YL
Not
Increased
φ22.2 Temper grade O Type 1/2 Type
RXYQ46PY1, YL
Not
Increased
φ22.2 Outer diameter φ6.4 φ9.5
φ12.7 φ15.9 φ19.1 φ22.2 φ25.4 φ28.6 φ31.8 φ34.9 φ38.1 φ41.3
RXYQ48PY1, YL
Not
Increased
φ22.2 Minimum Wall Thickness 0.80 0.80 0.80 0.99 0.80 0.80 0.88 0.99 1.10 1.21 1.32 1.43
RXYQ50PY1, YL
Not
Increased
φ22.2
RXYQ52PY1, YL
Not
Increased
φ22.2
RXYQ54PY1, YL
Not
Increased
φ22.2
5. Read cooling / heating capacity rate of change in the above figures based on the following equivalent length.
Overall equivalent length=
(Equivalent length to main pipe)×Correction factor+(Equivalent length after branching)
Choose a correction factor from the following table.
When cooling capacity is calculated : gas pipe size
When heating capacity is calculated : liquid pipe size
Rate of change
(object piping)
Cooling (gas pipe)
Heating (liquid pipe)
Correction factor
Standard size Size increase
1.0 0.5
1.0
(Example) RXYQ5PY1, YL
In the above case
(Cooling) Overall equivalent length=80m×0.5+40m=80m
(Heating) Overall equivalent length=80m×1.0+40m=120m
The rate of change in
cooling capacity when Hp=0m is thus approximately 0.79
heating capacity when Hp=0m is thus approximately 1.00
Equivalent length
Gas pipe : Size increase
Liquid pipe : Standard size
Outdoor unit
Indoor unit
Branch
80m
40m
Equivalent length
Rate of change
(object piping)
Cooling (gas pipe)
Heating (liquid pipe)
Correction factor
Standard size Size increase
1.0 0.5
0.2
1.0
(Example) RXYQ10PY1, YL
In the above case
(Cooling) Overall equivalent length=80m×0.5+40m=80m
(Heating) Overall equivalent length=80m×0.2+40m=56m
The rate of change in
cooling capacity when Hp=0m is thus approximately 0.87
heating capacity when Hp=0m is thus approximately 1.00
Gas pipe : Size increase
Liquid pipe : Size increase
Outdoor unit
Indoor
unit
Branch
80m
40m
Equivalent length
Equivalent length
(Example) RXYQ8PY1, YL
(Example) RXYQ16PY1, YL
(Example) RXYQ22PY1, YL
(Example) RXYQ12, 14, 24, 36PY1, YL
