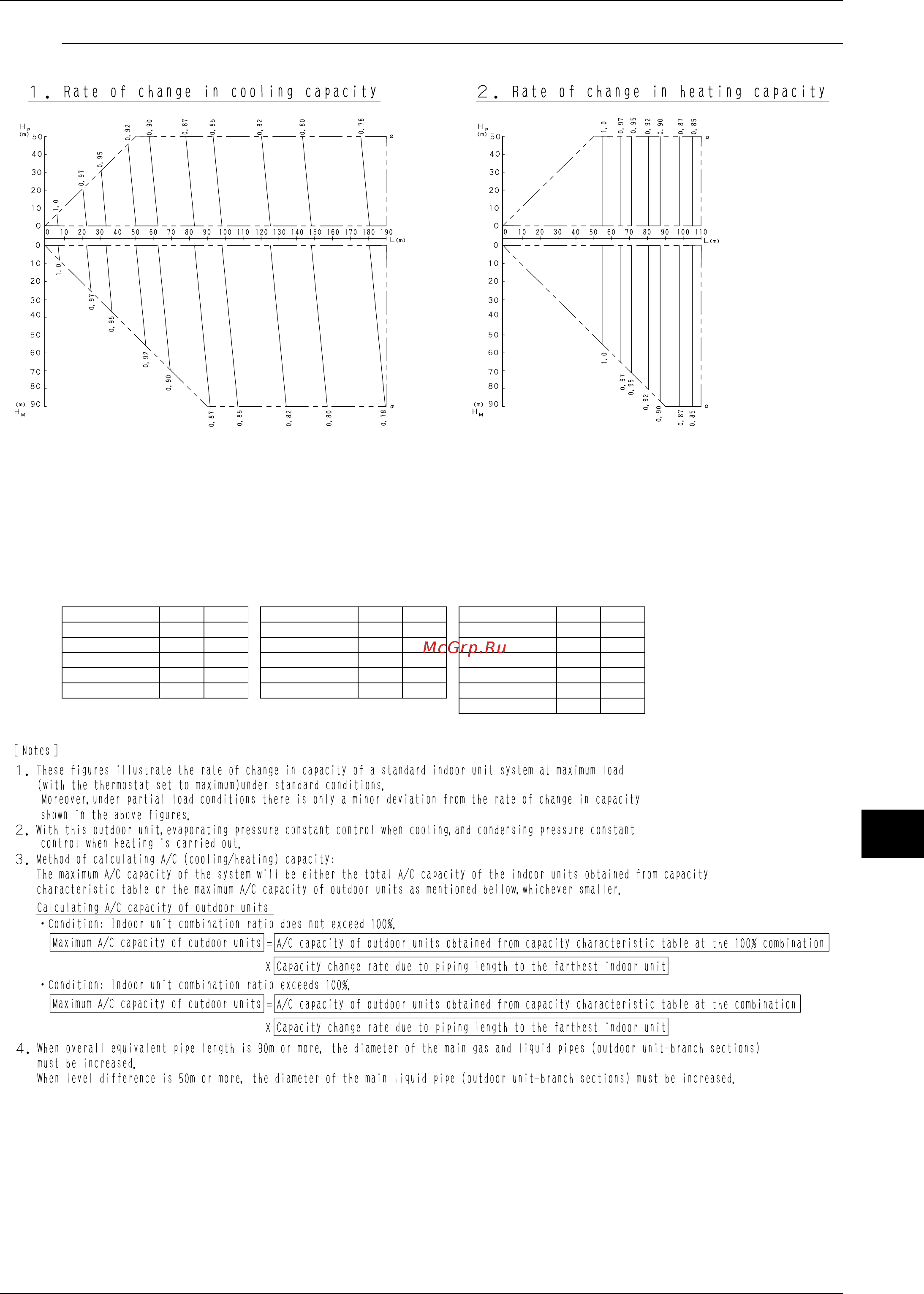

ED34-645B Capacity Tables (Heat Pump High COP Series)
RXYQ-PH 619
14
RXYQ50PHY1, YL
[Explanation of symbols]
H
P
: Level difference (m) between indoor and outdoor units where indoor unit in inferior position
H
M
: Level difference (m) between indoor and outdoor units where indoor unit in superior position
L : Equivalent pipe length (m)
α : Rate of change in cooling/heating capacity
[Diameters of pipes (Standard size)]
Model Gas Liquid Model Gas Liquid Model Gas Liquid
RXYQ16PHY1, YL
φ28.6 φ12.7
RXYQ30PHY1, YL
φ34.9 φ19.1
RXYQ40PHY1, YL
φ41.3 φ19.1
RXYQ18PHY1, YL
φ28.6 φ15.9
RXYQ32PHY1, YL
φ34.9 φ19.1
RXYQ42PHY1, YL
φ41.3 φ19.1
RXYQ24PHY1, YL
φ34.9 φ15.9
RXYQ34PHY1, YL
φ34.9 φ19.1
RXYQ44PHY1, YL
φ41.3 φ19.1
RXYQ26PHY1, YL
φ34.9 φ19.1
RXYQ36PHY1, YL
φ41.3 φ19.1
RXYQ46PHY1, YL
φ41.3 φ19.1
RXYQ28PHY1, YL
φ34.9 φ19.1
RXYQ38PHY1, YL
φ41.3 φ19.1
RXYQ48PHY1, YL
φ41.3 φ19.1
RXYQ50PHY1, YL
φ41.3 φ19.1
3D053173B
