Daikin RXYQ30PY1 [322/487] Branch wiring
![Daikin RXYQ12PY1 [322/487] Branch wiring](/views2/1711913/page322/bg142.png)
Control System ED34-645B
714 Control

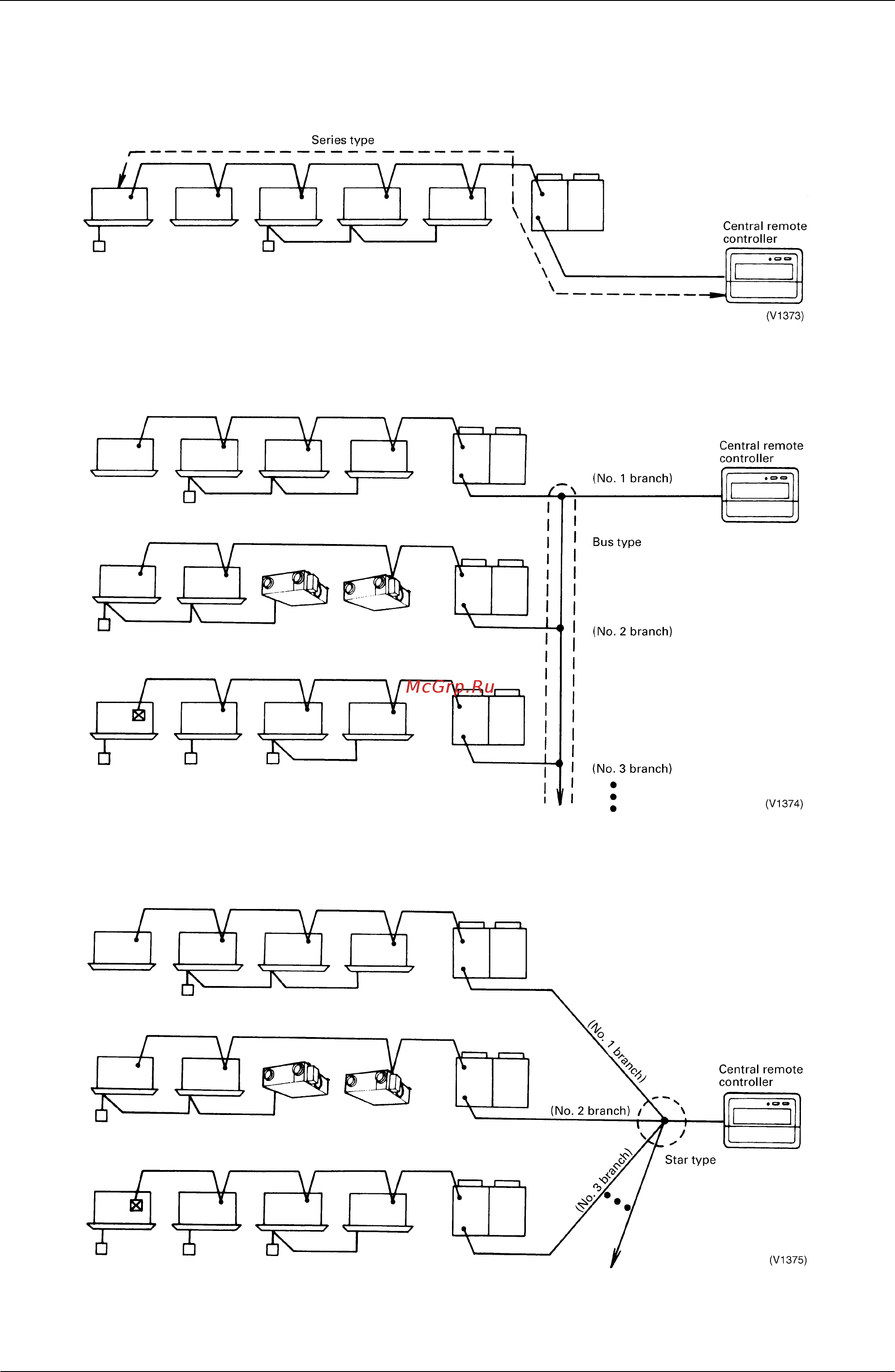

3.6 Branch Wiring
Wiring methods (You can select from the following 3 types of wiring.)
3.6.1 Series Method
3.6.2 Bus Method (Up to 16 branches is possible. Never diverge the sub-branch from the
branch line.)
3.6.3 Star Method (Up to 16 branches is possible. Never diverge the sub-branch from the
branch line.)
Note:
Though a previous figure shows a case in use of a central remote controller, the wiring form which even other central
remote controllers are the same as can be done.
