Adaptor ED34-645B
820 Control

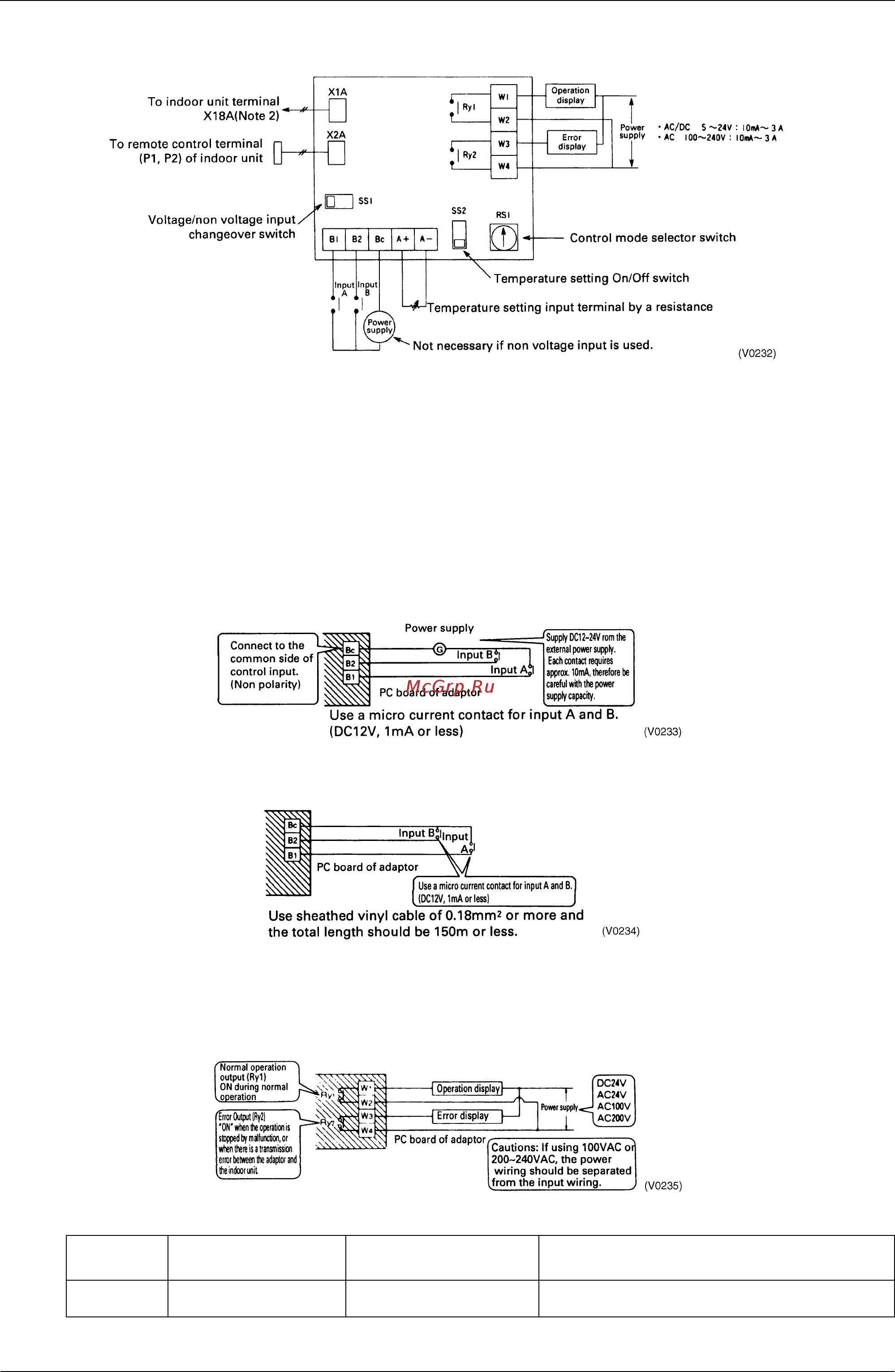

5.3.4 Names and Functions of Operating Part
Note:
1. This is valid only for the indoor unit, which has a temperature setting function.
2. Terminal No. X18A is for the indoor unit of VRV system. For SkyAir series and other air-conditioner, connect to
the relevant terminal for each units.
5.3.5 Input/Output for External Control
1. Depending on whether [voltage input] or [non voltage input], connect the wiring as
shown below.
Input with Voltage.
Set the Voltage/Non voltage changeover switch (SS1) to VOLT.
Input with No Voltage.
Set the Voltage/Non voltage changeover switch (SS1) to NON VOLT.
2. Display Signal Retrieval (Output)
The normal operation output terminals (W1, W2) and error output terminals (W3, W4) are non-voltage output
contacts. (Permissive current is 10mA~3A per contact.)
Output is as given below.
Output
Both Ry1 and Ry2 is OFF. Only Ry1 is ON. Only Ry2 is ON.
System
Group control OFF All normal operation
At least one unit is stopped due to error or transmission
error between the adaptor and the indoor unit.
