Daikin RXYQ30PY1 [423/487] Electric wiring work
![Daikin RXYQ30PY1 [423/487] Electric wiring work](/views2/1711913/page423/bg1a7.png)
ED34-645B Adaptor
Control 815
16
5.2.4 Electric Wiring Work
1. First, wire between the indoor and outdoor units, then to the separate power sources, and between the indoor
units and the remote controllers. Then, check wiring is correct. (If wanting group control by remote controller,
check transmission wiring.) For details, see the installation manual of the indoor and outdoor units.
2. Next, wire between the wiring adaptor for electrical appendices (1) and the indoor units. For details, see Wiring to
indoor units.
3. Finally, wire between external units such as the host computer monitor panel, and make the necessary settings.
For details, see Wiring to external units (host computer monitor panel).
Note:
It is not necessary to set address No. for centralized control.
(Setting is automatic.)

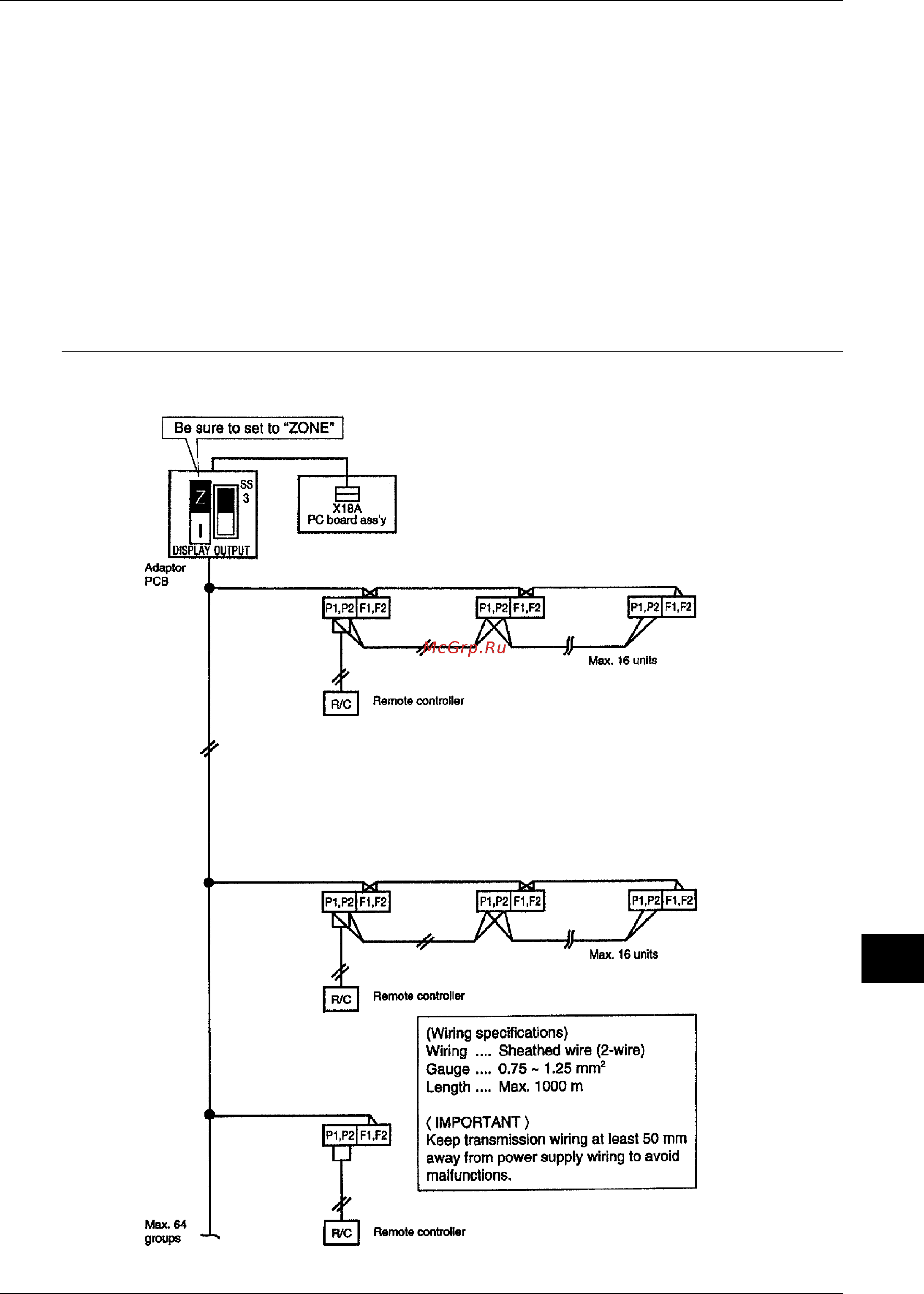

Wiring to Indoor Units
1. For Zone Control
1PA63642B
