ED34-645B DAIKIN Building Air conditioning Control System (D-BACS)
Control 693
16

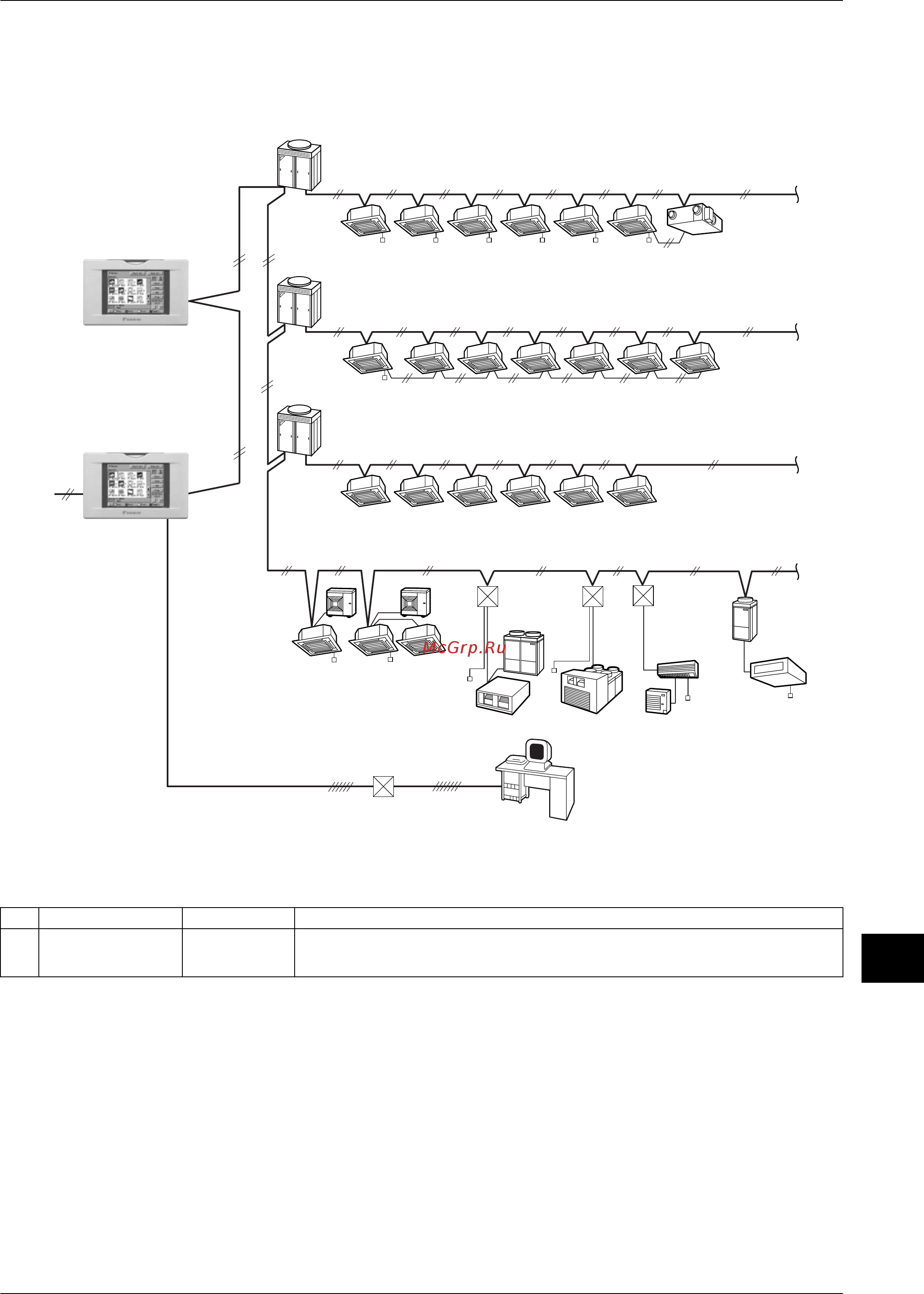

2.2 System Configuration (intelligent Touch Controller)
This controller is a central remote controller offering higher functions than those of the previous central remote
controller DCS302CA61, and easier operation.
Up to 64 groups of indoor units may be connected to 1 unit of this controller.
No. Part Name Model No. Function
1
intelligent Touch
Controller
DCS601C51
Up to 64 groups of indoor units (128 units) can be connected, and on/off, temperature
setting and monitoring can be accomplished individually or simultaneously. Connectable up
to 2 sets into one system.
The i-Touch Controller is
equipped with the central
control function, the
ON/OFF function, the
schedule management
function, etc.
intelligent Touch
Controller
(DCS601C51)
Up to 2 units
connectable
Forced OFF
input
Central control
adaptor kit
(DTA107A55).
Wiring adaptor
for other air-
conditioners
(DTA103A51)
Independent
and centralized
control of HRV
is possible.
Unification adaptor for computerized
control ∗ (DCS302A52)
Interlink Building Management System
(host computer monitor panel) also possible
6 cores 7 cores max.
Address setting of central control can be
performed from the remote controller.
Group control of up to 16 units is possible
(group control via automatic address setting)
System without remote control is also available.
Interface adaptor for SkyAir
series (built-in indoor unit)
(DTA102A52)
Outdoor-air
processing
unit can be
connected.
Note: Certain units limit the functions of
some control systems.
