ED34-645B Control Devices
Control 743
16

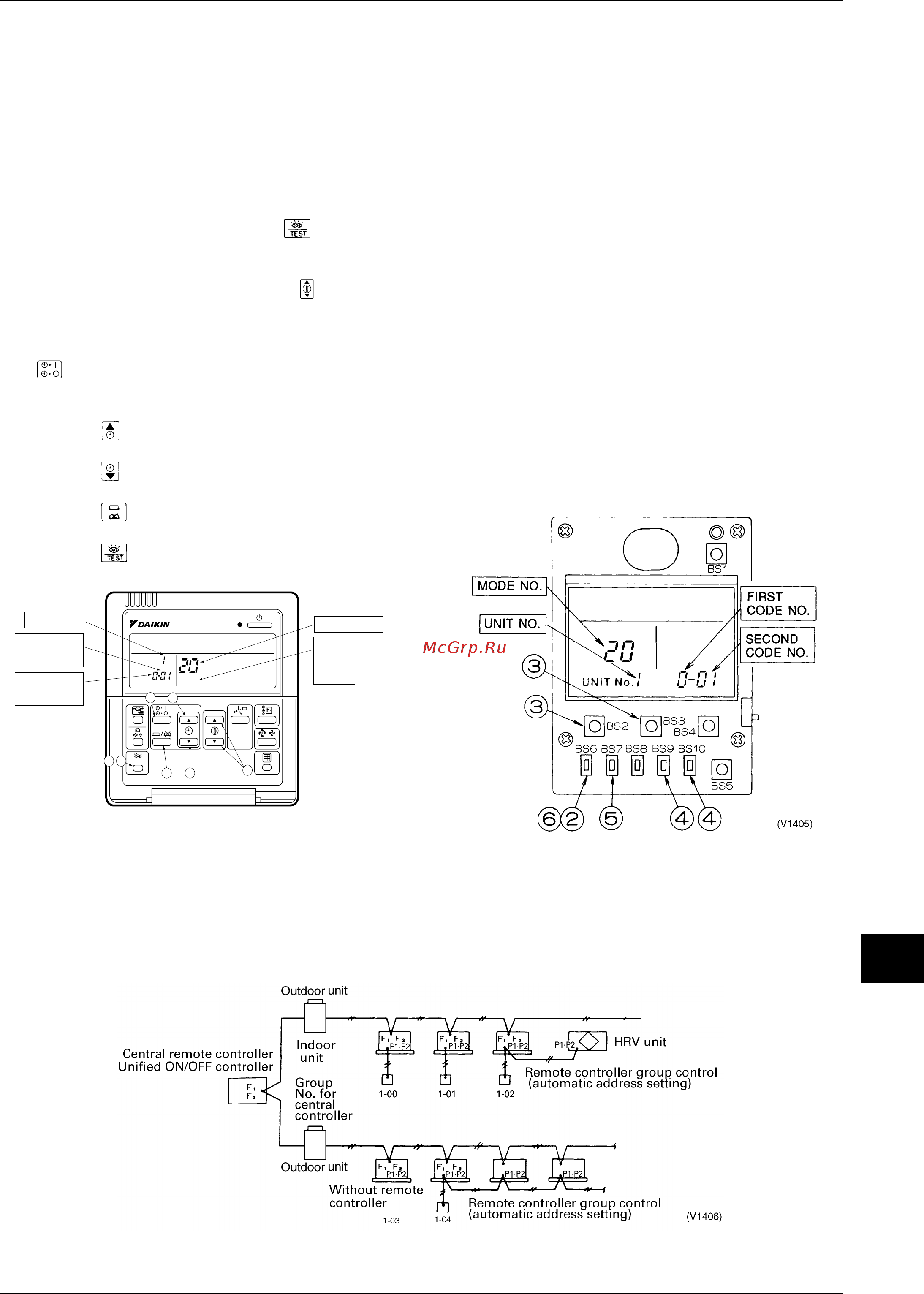

4.3.7 Instructions for Initial Setting
Group No. Setting for Central Control Equipment
Group No. should be set for each group by the remote controller for indoor unit, when you operate the system with
central remote controller and unified ON/OFF controller. (For the same control group, set only one of the unit.)
Remote controller for indoor unit
Procedure to set the group No. for central control by
remote controller for indoor unit.
1. When in the normal mode, press the “ ” button for
a minimum of four seconds, and the FIELD SET MODE
is entered.
2. Select the desired MODE NO. with the “ ” button
().
3. During group control, when setting by each indoor unit
(mode No. 20, 22 and 23 have been selected), push the
“ ” button () and select the INDOOR UNIT NO to
be set. (This operation is unnecessary when setting by
group.)
4. Push the “ ” upper button () and select FIRST
CODE NO.
5. Push the “ ” lower button () and select the
SECOND CODE NO.
6. Push the “ ” button () once and the present
settings are SET.
7. Push the “ ” button () to return to the NORMAL
MODE.
Simplified remote controller
Group No. setting by simplified remote controller.
1. Remove the cover of remote controller.
2. While in normal mode, press the [BS6] BUTTON (field
set) to enter the FIELD SET MODE.
3. Select the mode No. [00] with [BS2] BUTTON
(temperature setting ▲) and [BS3] BUTTON
(temperature setting ▼).
4. Select the group No. with [BS9] BUTTON (set A) and
[BS10] BUTTON (set B). (Group Nos. increase in the
order of 1-00, 1-01......1-15, 2-00,.....4-15. However, the
unified ON/OFF controller displays only group No. set
within the range of control.)
5. Press [BS7] BUTTON (set/cancel) to set group No.
6. Press [BS6] BUTTON (field set) to return to the
NORMAL MODE.
<Cautions>
Even in the system without remote control, connect the remote controller once to set group No. for central control
equipment and remove the remote controller after setting.
When you set the group No., be sure to supply the power to the central remote controller, the unified ON/OFF
controller and the indoor unit.
<Example of group setting>
Cautions
When the power is supplied, all the display appears once on the remote controller and then the display changes to
SETTING
TEST
UNIT NO.
3
4
5
6
7
1
2
FIELD
SET
MODE
UNIT NO.
.
SECOND
CODE NO.
.
MODE NO.
FIRST
CODE NO.
.
(V0292)
