Adaptor ED34-645B
826 Control
5.4.5 Installation
Installation differs according to models as shown below.
Do not bundle low and high voltage wires together.
Bundle any excess wires with the attached tie wraps so as to keep loose wirings off the indoor unit PC board.

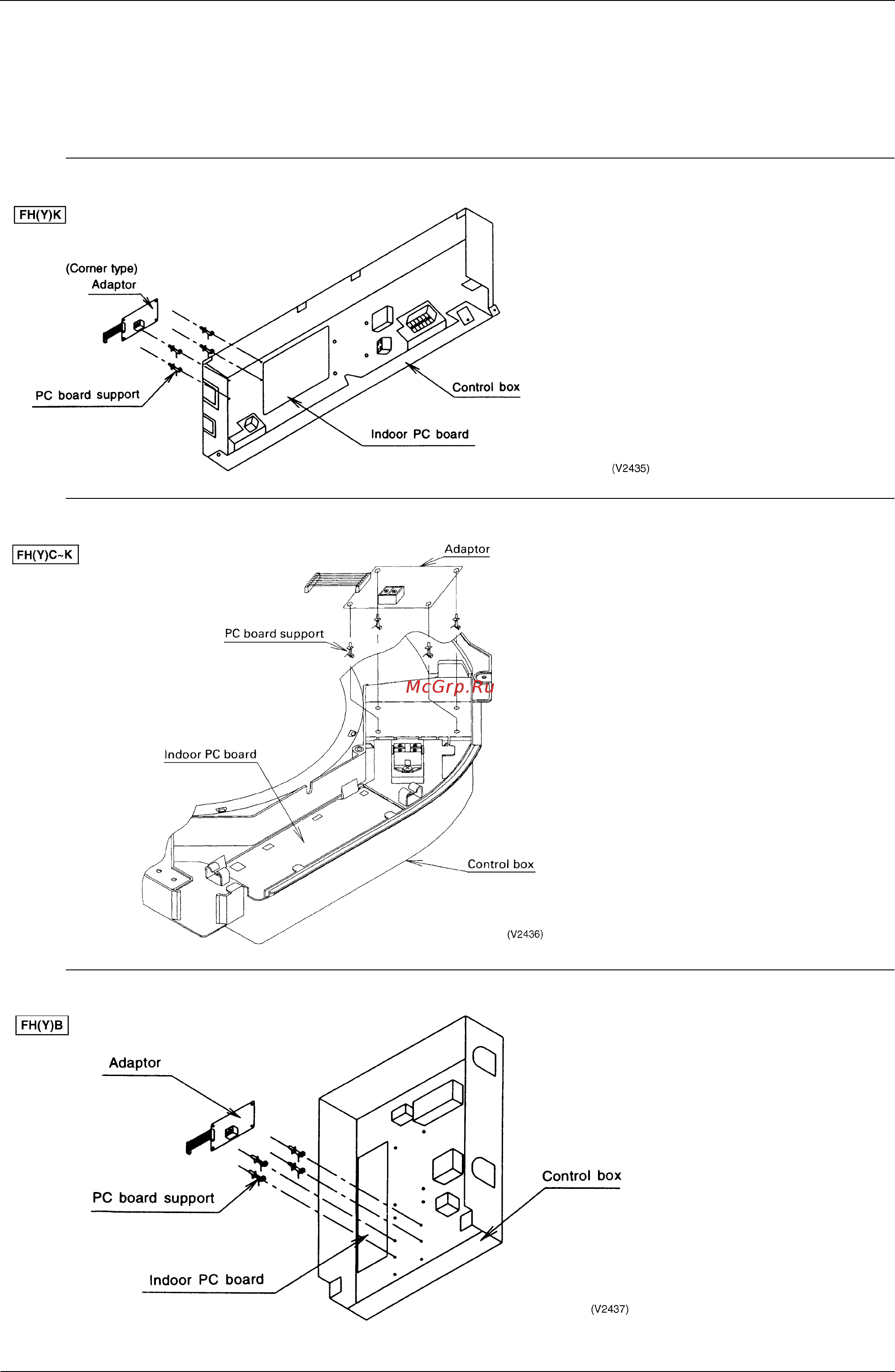

Ceiling Mounted Cassette Corner Type
Ceiling Mounted Cassette Type (Multi-Flow)
Ceiling Mounted Built-In Type
C : 1PA59896
