ED34-645B Control Devices
Control 807
16
4.9.8 Power Proportional Distribution

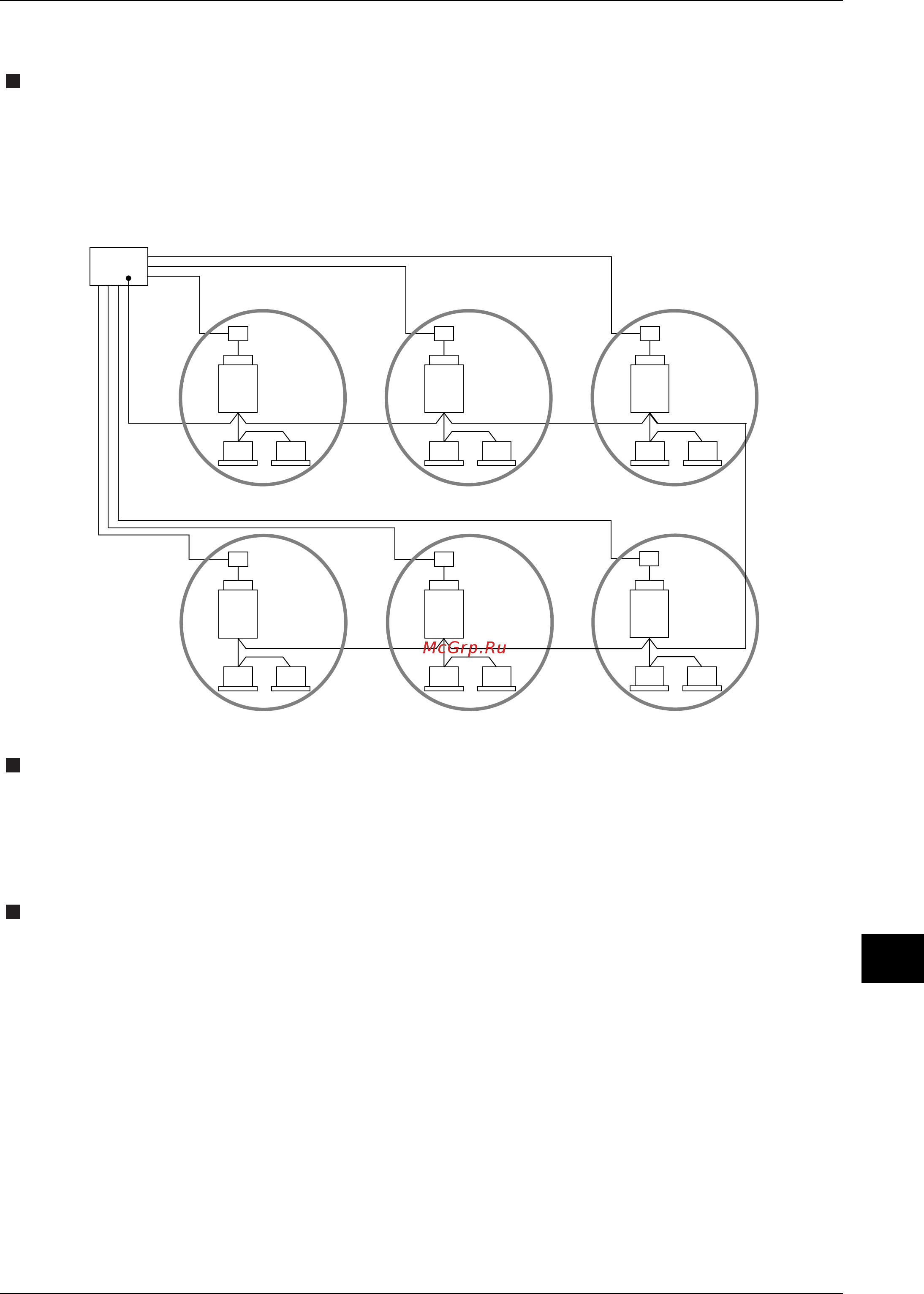

Points to be noted for Power Proportional Distribution (PPD)
When implementing PPD using i-touch-Controller and i-Manager, or in case of any mixture
of heat recovery or energy saving type, please install a watt hour meter (WHM) in a sepa-
rate system.
In addition, please calculate the proportional distribution for each VRV-series by setting
power group during a test run.
i-Manager, i-touch-Controller (Max 3 WHM)
Subject Model
DCS601C51 intelligent touch Controller
DCS002C51 P.P.D. Card
DAM602B51, 52
Reason
Such equipments as i-touch-Controller implementing PPD cannot distinguish heat
recovery type from energy saving type to which they are connected. Therefore, if the
capacity of each indoor unit is the same, the result of proportional distribution becomes
the same as that of other VRV.
(No effect of energy saving is reflected on the calculation result.)
F1, F2
WHM
VRV K series
WHM WHM
WHM WHM
VRV K series
VRVII MA series VRVII M series
VRV L-series
Heat Recovery
Heat Recovery
WHM
VRVIII P series
intelligent Manager
DAM002A51 P.P.D Software for intelligent Manager
