Control Functions ED34-645B
862 Control

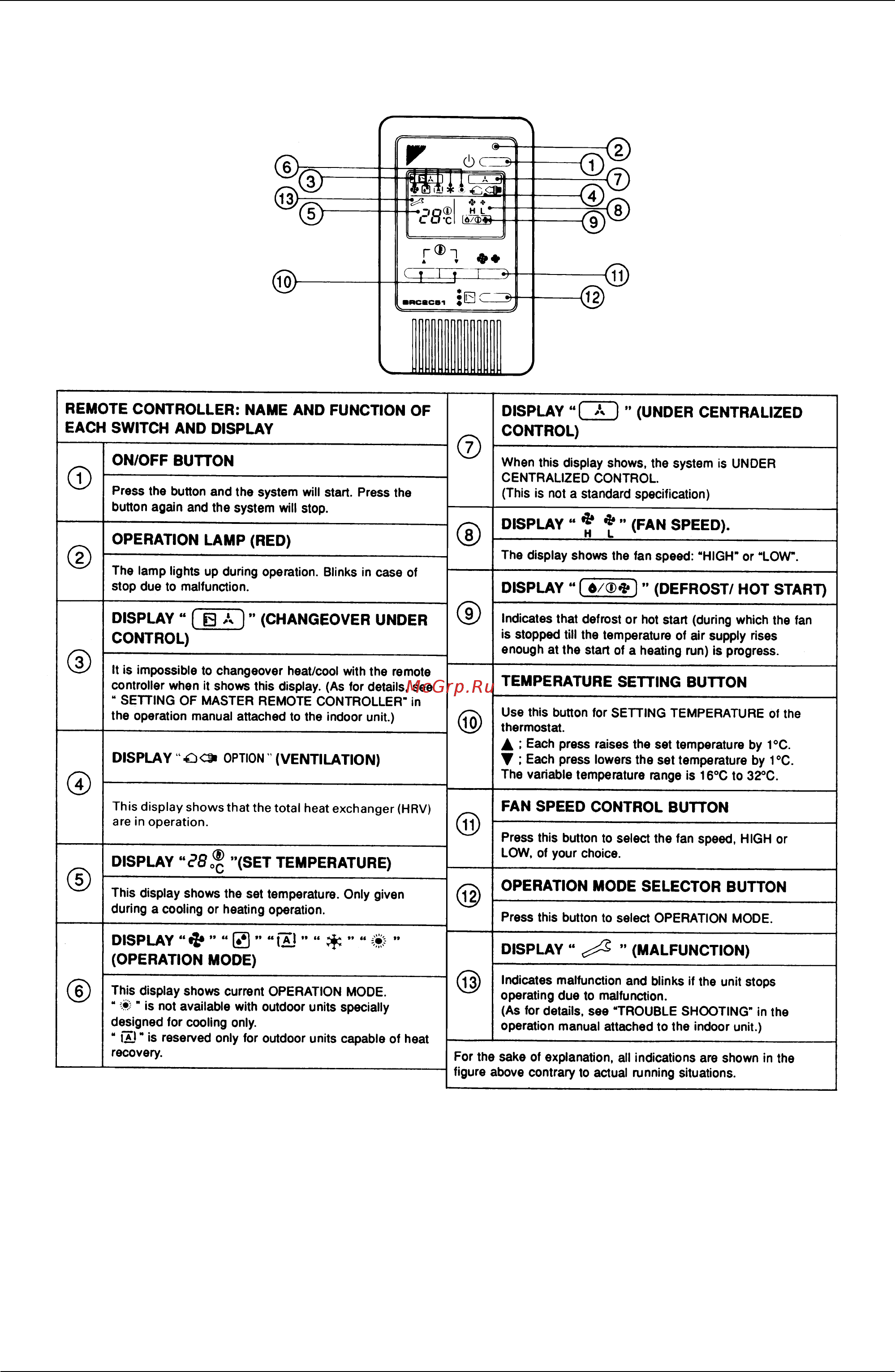

6.3 <BRC2C51 (BRC2A51)> Simplified Remote Controller
6.3.1 Name and Function
C : 2PA52942
Note:
1. Following functions are not including in this controller.
Auto swing function.
Timer setting function.
Display of time to clean air filter.
2. For setting, refer to page 863.
3. For BRC2C51
Equipped with a thermostat sensor in the remote controller that makes possible more comfortable room
temperature control.
Complied with the RoHS directive.
