ED34-645B Piping Installation Point
Installation of Outdoor Units 651
15

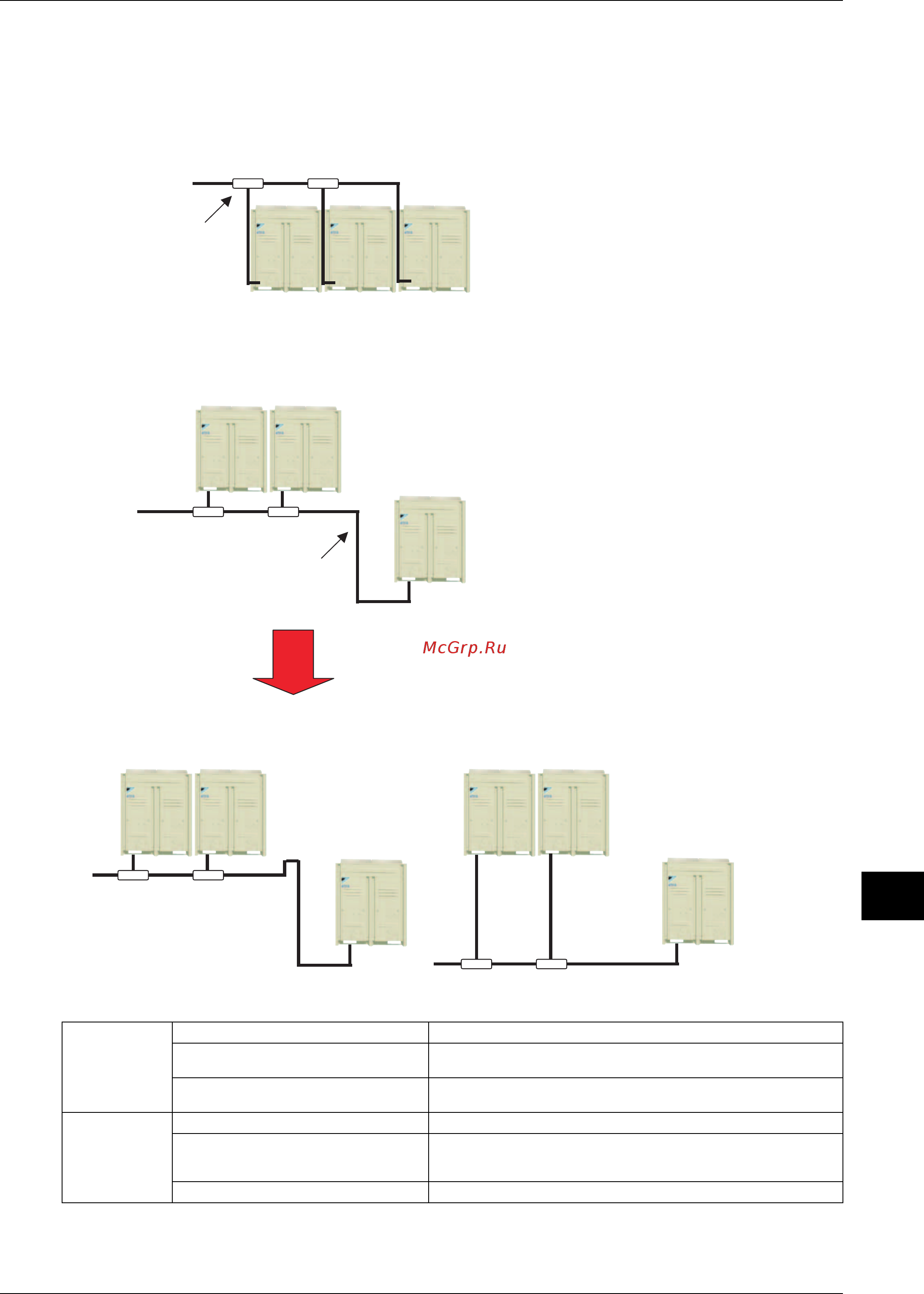

5.2 The Example of A Wrong Pattern
Note:
★
Available on request if the outdoor unit is above.
Max.allowable
Piping Length
Outdoor Unit - Multi Connection Piping Kit Actual piping length 10m or less, equivalent length 13m or less
Multi Connection Piping Kit - Indoor Unit
Actual piping length 165m or less, equivalent length 190m or less,
the total extension 1000m or less
REFNET Joint - Indoor Unit
Actual piping length 40m or less
(Refer to Page 657, 658 Note 2 in case of up to 90m)
Allowable Level
Difference
Outdoor Unit - Outdoor Unit 5m or less
Outdoor Unit - Indoor Unit
50m or less
★
90m or less
(when an outdoor unit is lower than indoor units: 40m or less in case
of RXYQ5P)
Indoor Unit - Indoor Unit 15m or less
Oil is collected to the outdoor
unit at the time of a stop,
because of bottom omission of
piping.
×
Wrong
(V3039)
Oil is collected to the low level outdoor
unit at the time of a stop, because of
downward slope of piping.
×
{
{
The example of installation on which oil is not collected.
Wrong
Good Good
Vertical
Projection
(V3040)
