BM-525 Bandwidth Management Gateway User’s Manual

- 95 -

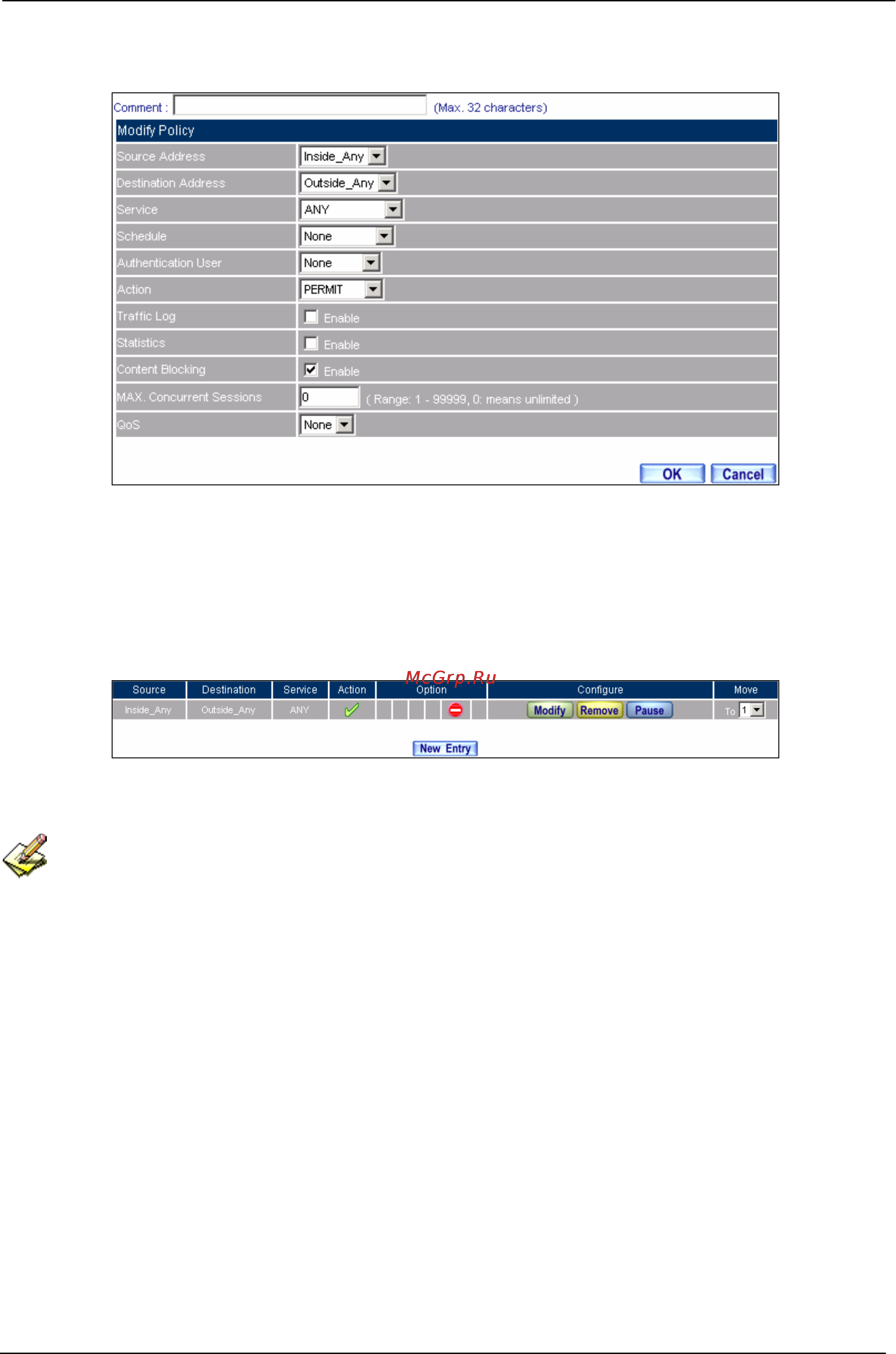

STEP 2﹒Add an Outgoing Policy and use in Content Blocking function.

URL Blocking Policy Setting

STEP 3﹒Complete the policy of permitting the internal users only can access to some specific

web site in Outgoing Policy function.

Complete Policy Settings

Afterwards the users only can browse the web sites that include “yahoo” and “google” in domain

name by the above policy.
