Planet BM-525 [11/205] Adding a new sub administrator

BM-525 Bandwidth Management Gateway User’s Manual

- 6 -

Adding a new Sub Administrator

STEP 1﹒In the Admin Web UI, click the New Sub Admin button to create a new Sub

Administrator.

STEP 2﹒In the Add New Sub Administrator Web UI and enter the following setting:

 Sub Admin Name: sub_admin

 Password: 12345

 Confirm Password: 12345

STEP 3﹒Click OK to add the user or click Cancel to cancel it.

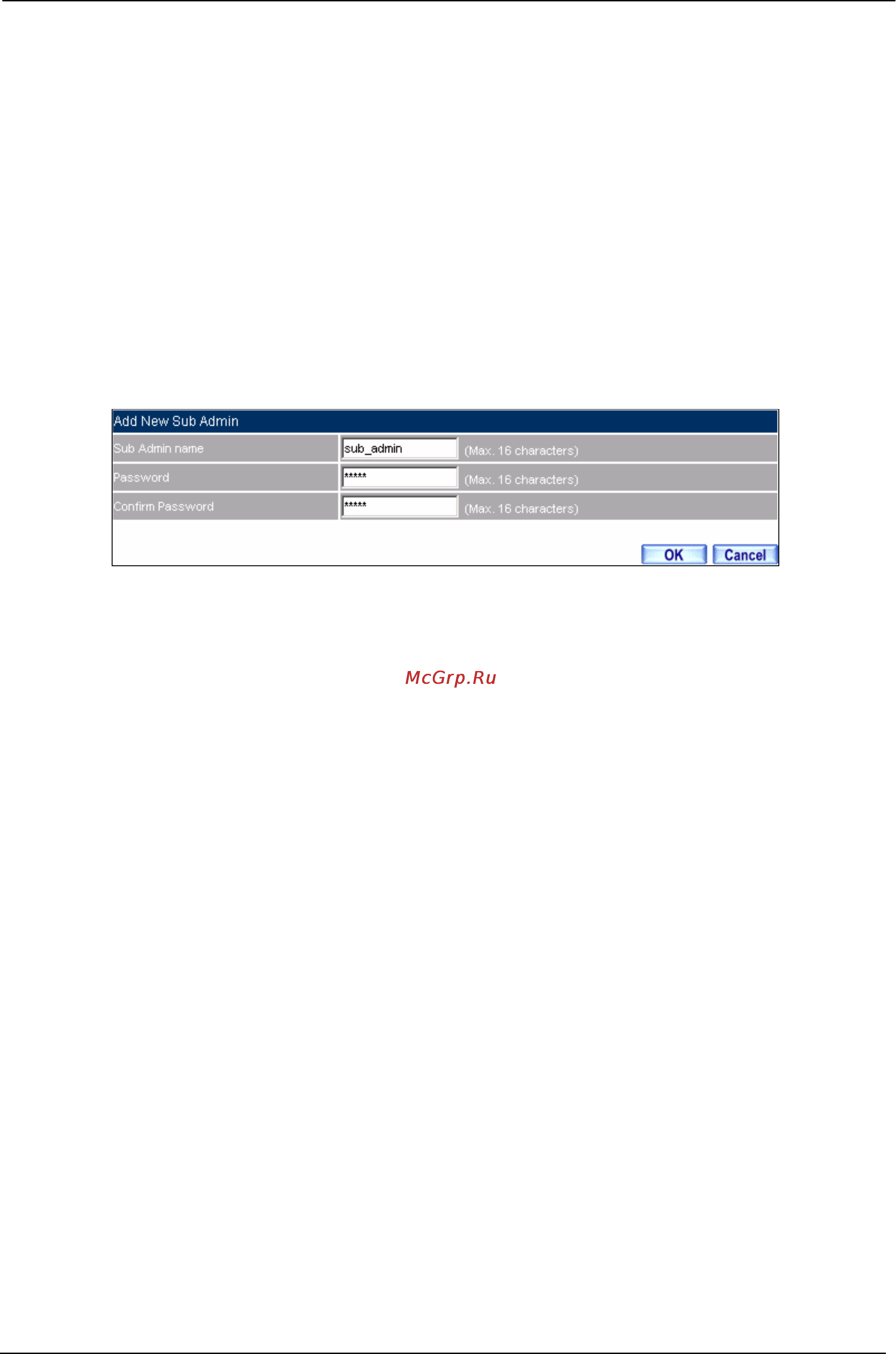

Add New Sub Admin
