BM-525 Bandwidth Management Gateway User’s Manual

- 159 -

7.2 Traffic Log

To detect the information and Protocol port that users use to access to Internet

or Intranet by BM-525

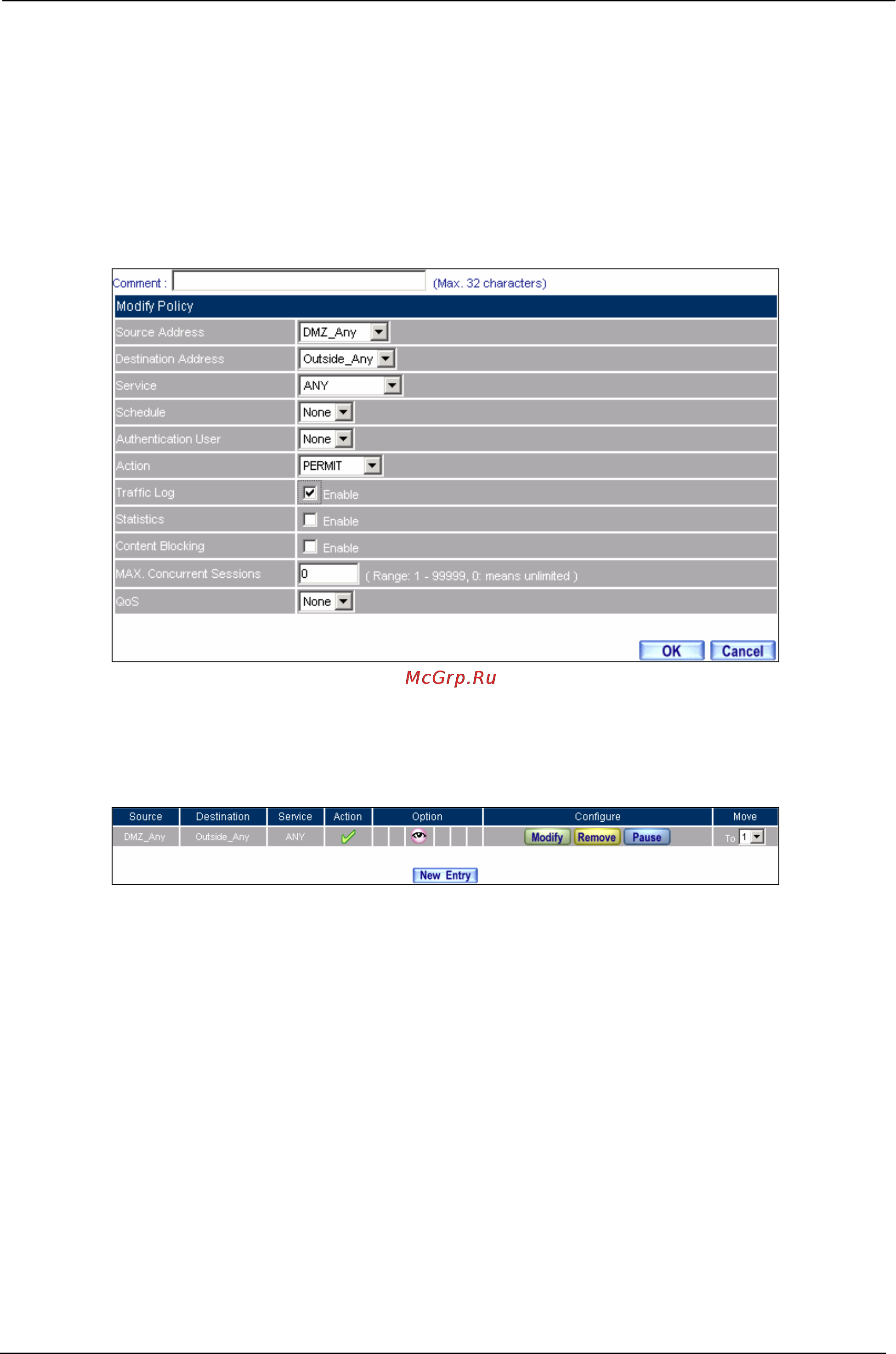

STEP 1﹒Add new policy in DMZ to WAN of Policy and select Enable Logging.

Logging Policy Setting

STEP 2﹒Complete the Logging Setting in DMZ to WAN Policy.

Complete the Logging Setting of DMZ to WAN
