Planet BM-525 [61/205] Setup a policy that only allows partial users to connect with specific ip external specific ip

BM-525 Bandwidth Management Gateway User’s Manual

- 56 -

Setup a policy that only allows partial users to connect with specific IP (External

Specific IP)

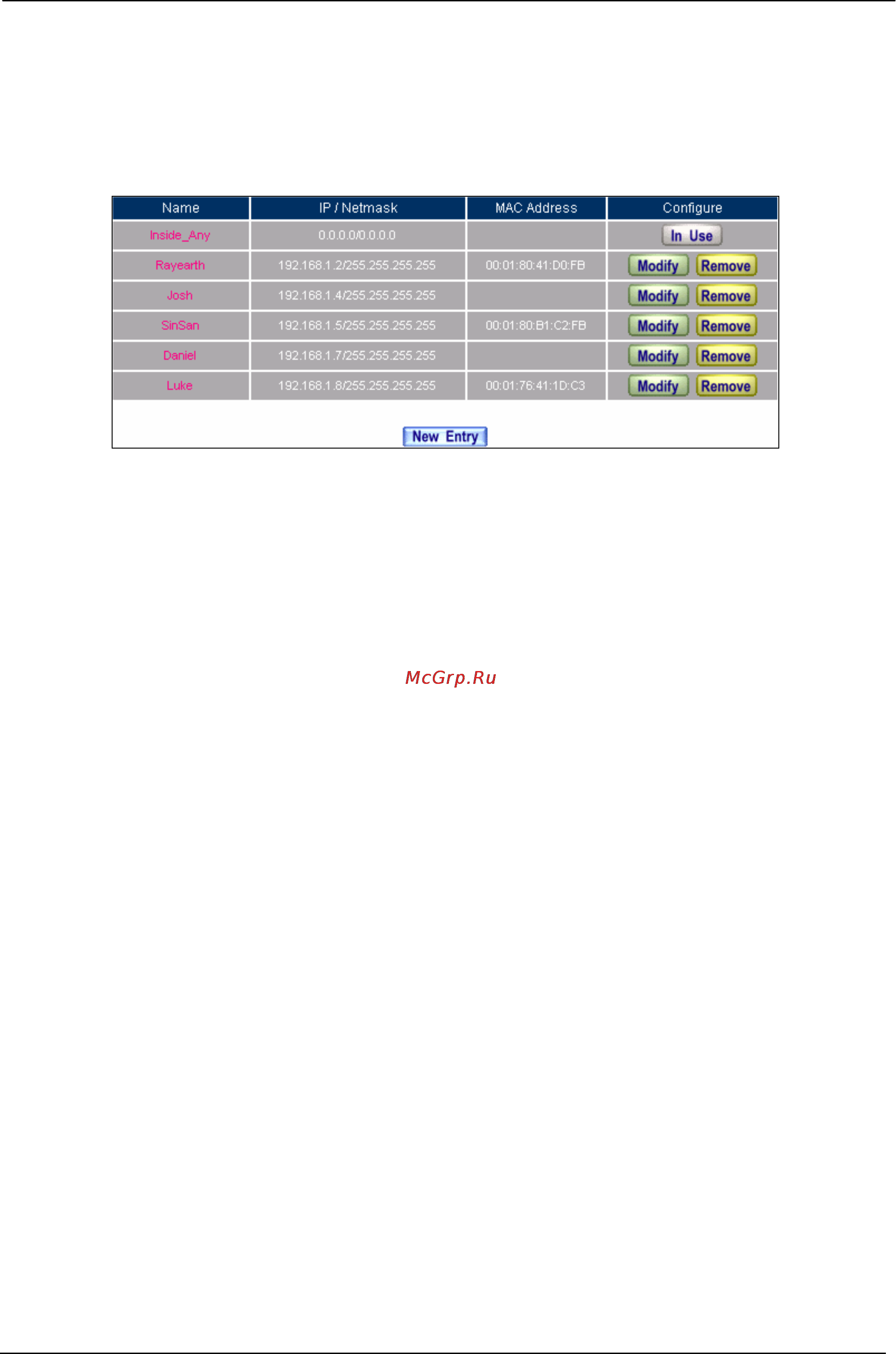

STEP 1﹒Setting several LAN network Address.

Setting Several LAN Network Address
