BM-525 Bandwidth Management Gateway User’s Manual

- 167 -

7.4 Connection Log

To Detect Event Description of WAN Connection

STEP 1﹒Click Connection in LOG. It can show up WAN Connection records of the BM-525.

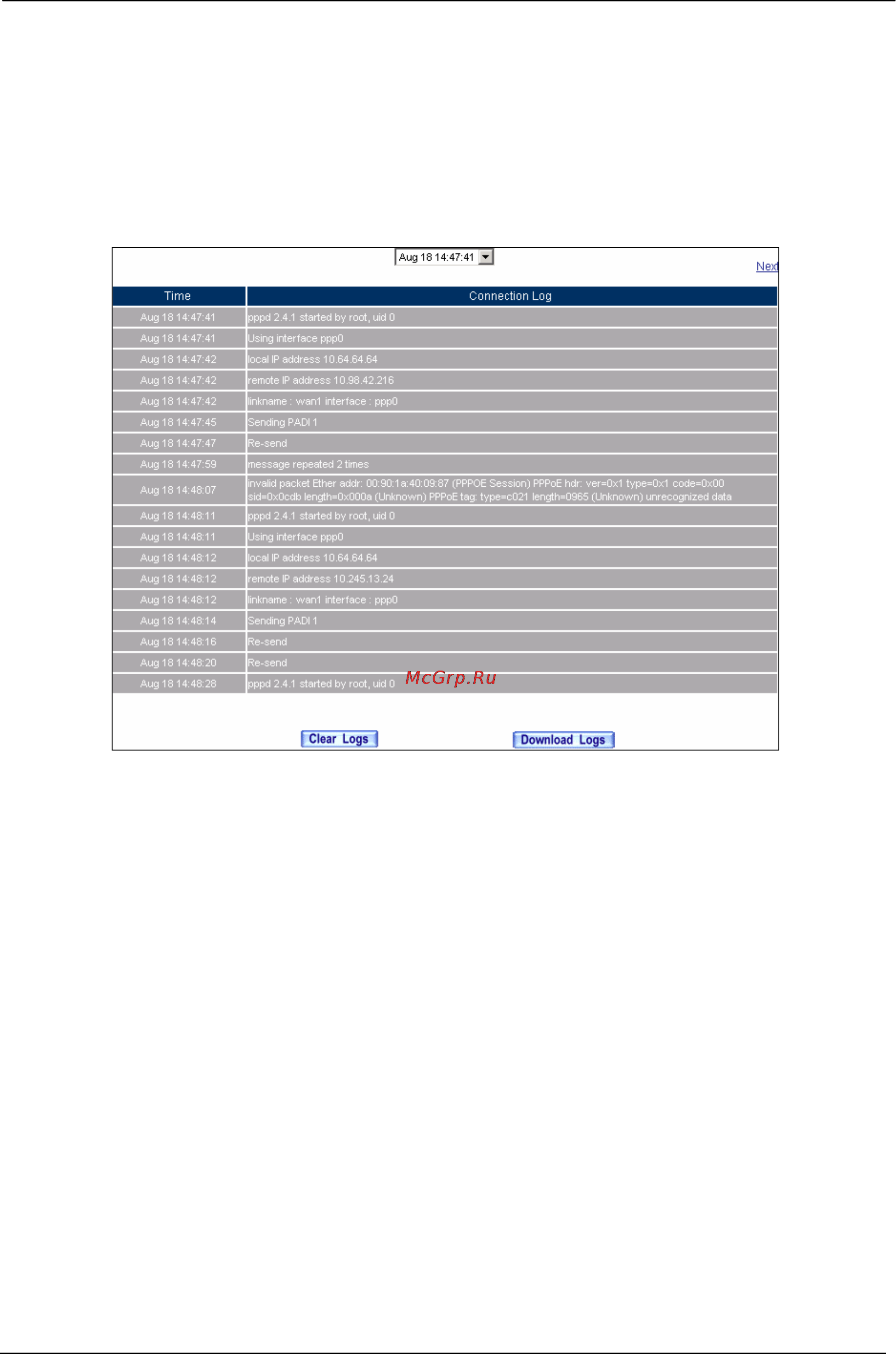

Connection records Web UI
