BM-525 Bandwidth Management Gateway User’s Manual

- 164 -

7.3 Event Log

To record the detailed management events (such as Interface and event

description of BM-525) of the Administrator

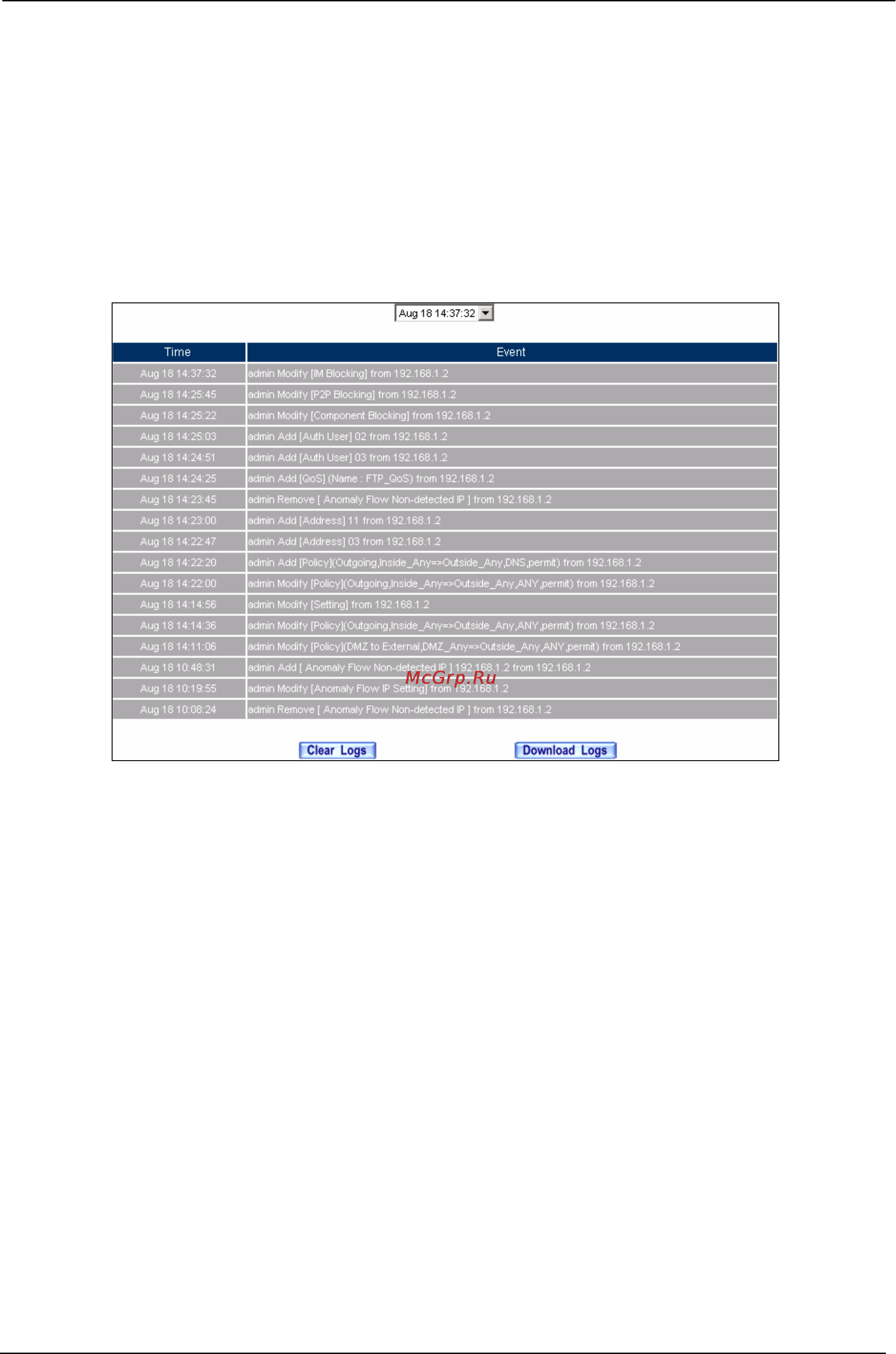

STEP 1﹒Click Event log of LOG. The management event records of the administrator will show

Event Log Web UI
