BM-525 Bandwidth Management Gateway User’s Manual

- 163 -

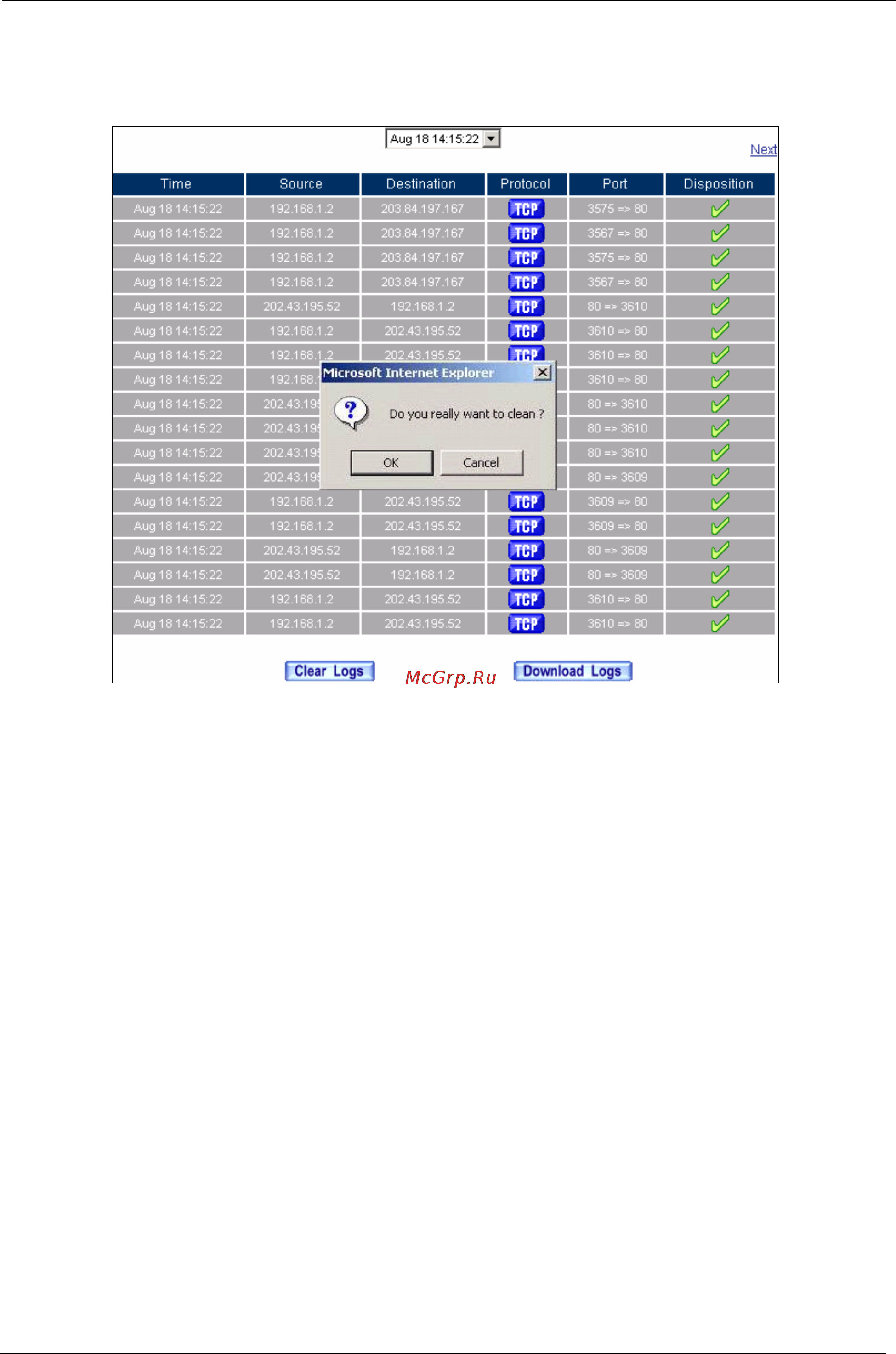

STEP 6﹒ Click Clear Logs and click OK on the confirm Web UI. The records will be deleted from

the BM-525 instantly.

Clearing Traffic Log Records Web UI
