BM-525 Bandwidth Management Gateway User’s Manual

- 162 -

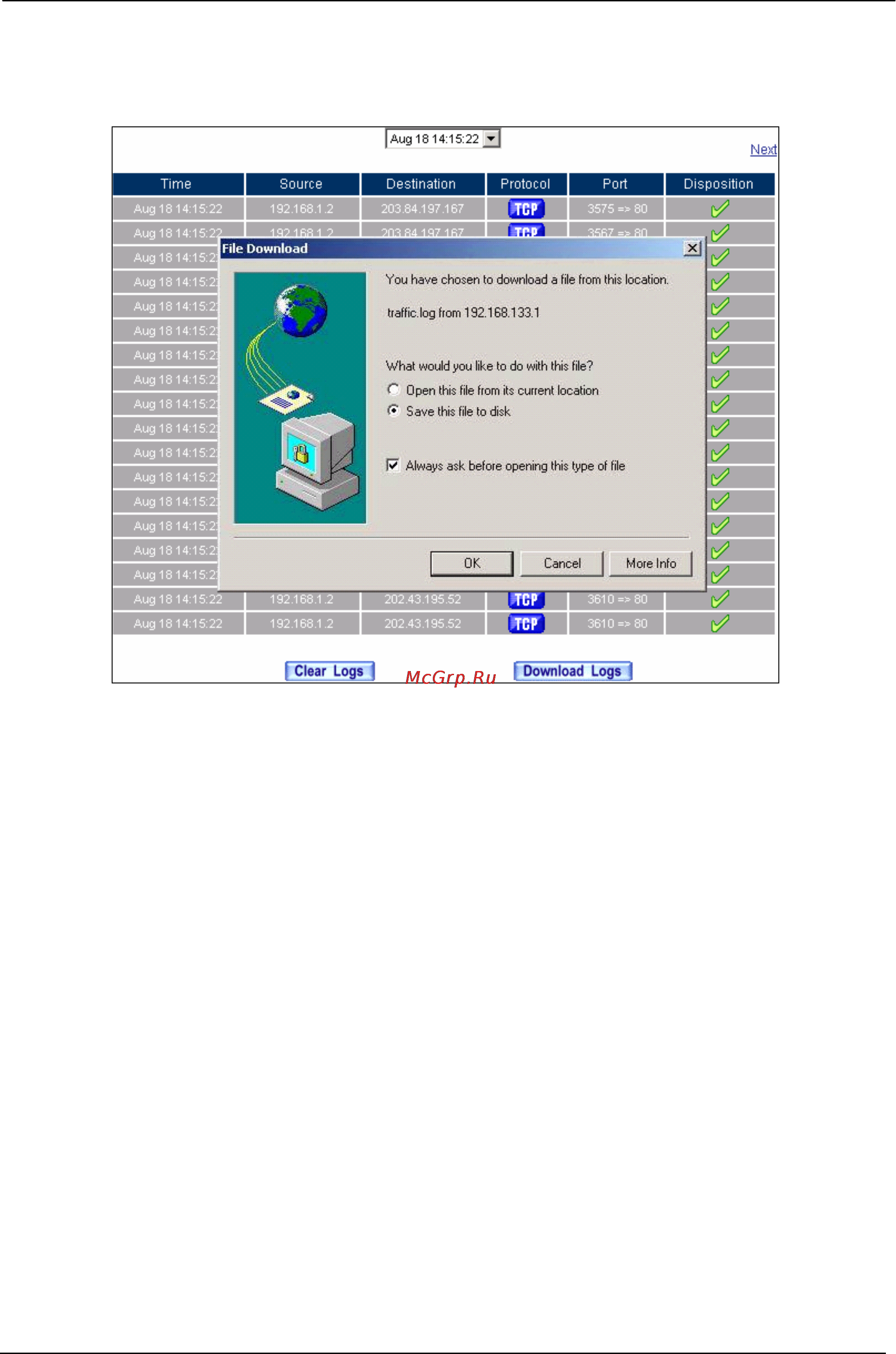

STEP 5﹒ Click on Download Logs and select Save in File Download Web UI. And then choose

the place to save in PC and click OK; the records will be saved instantly.

Download Traffic Log Records Web UI
